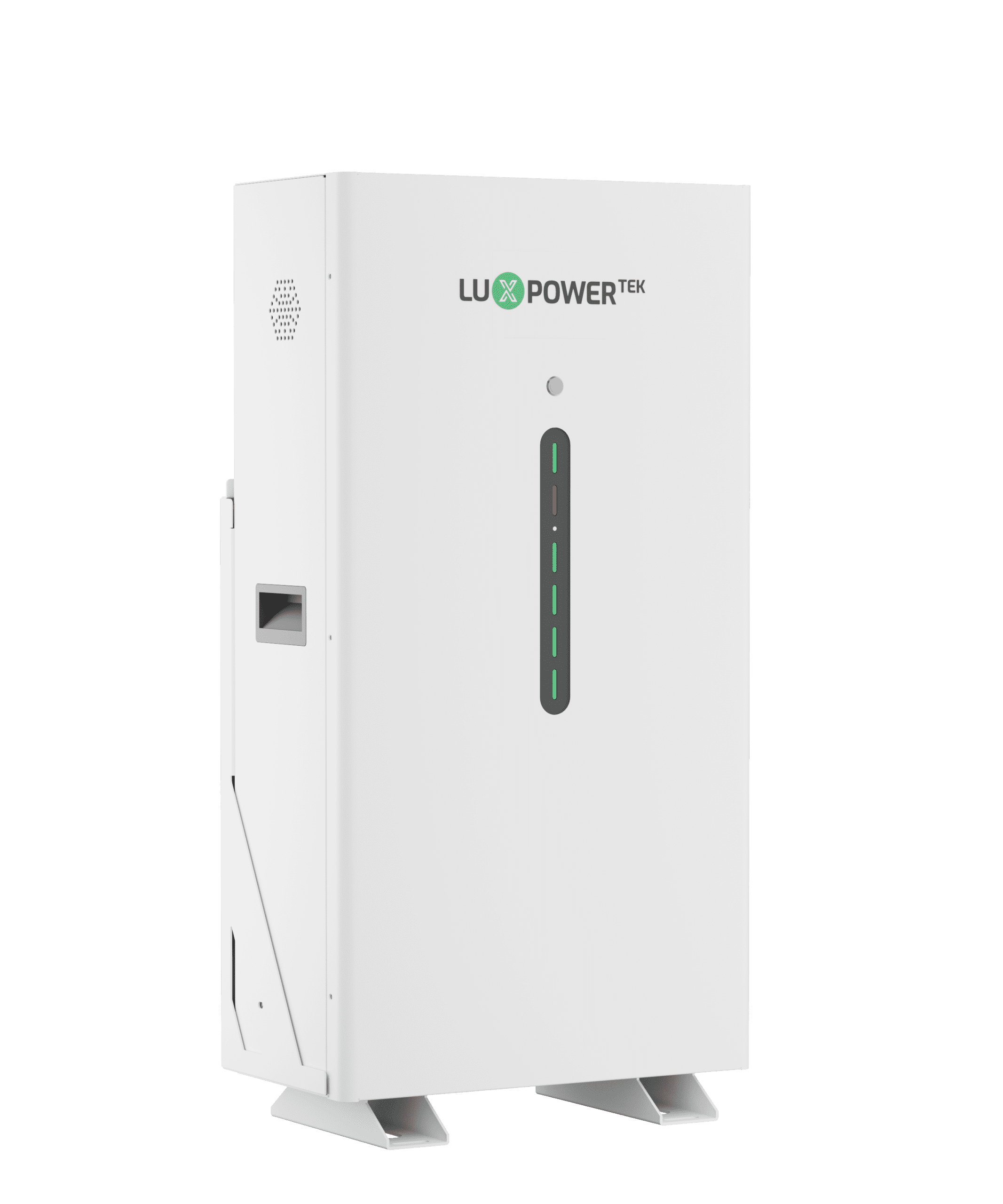

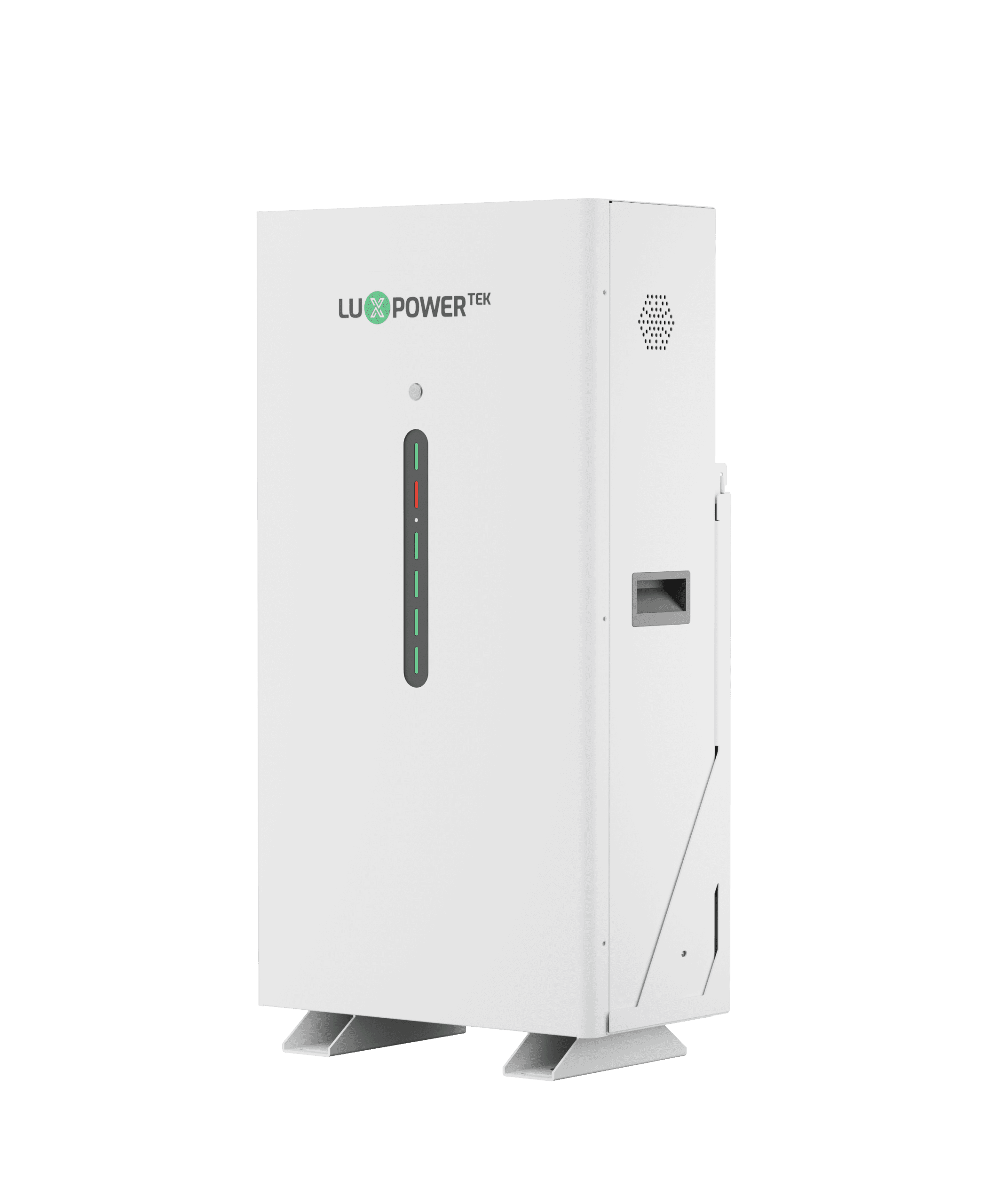

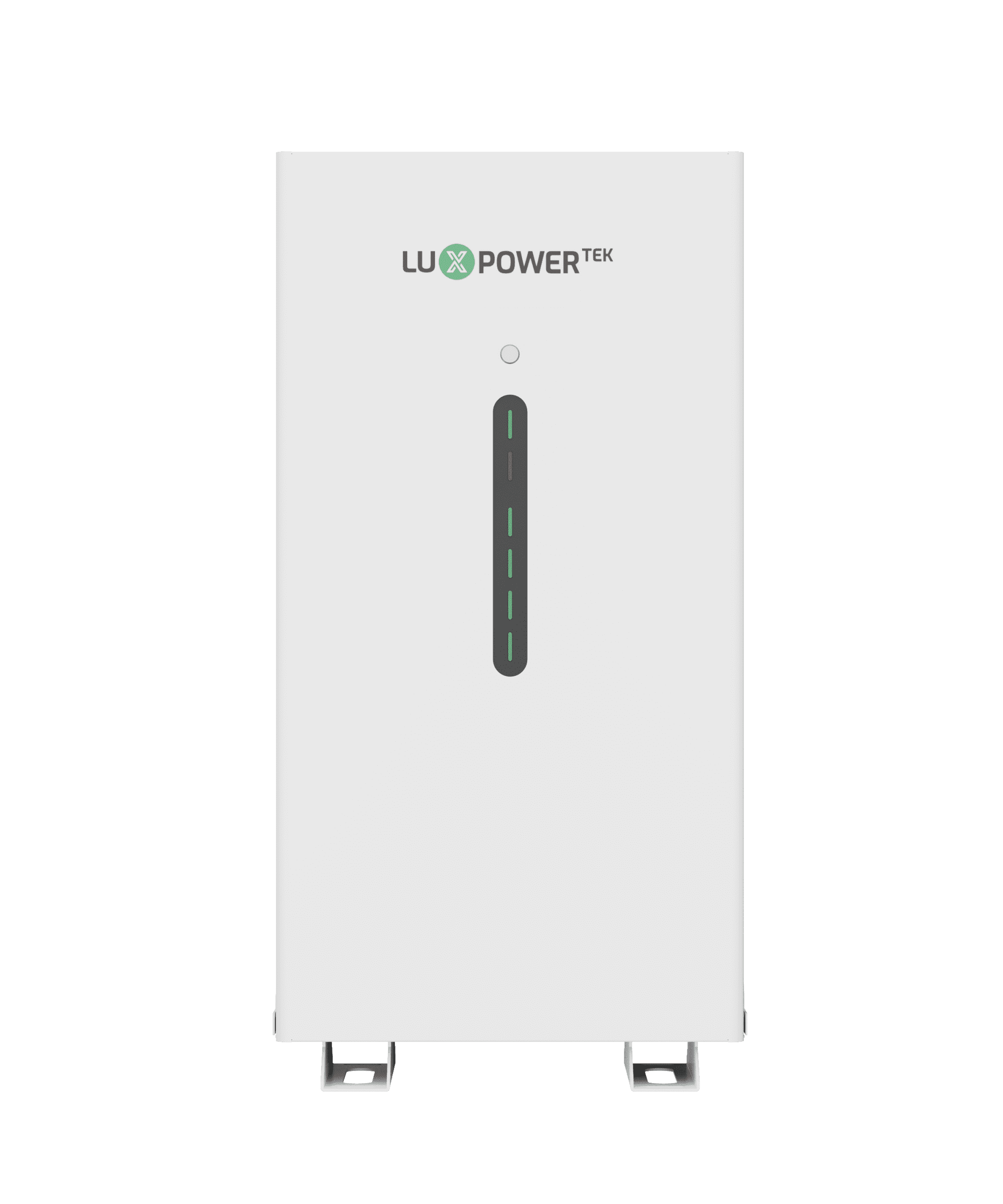

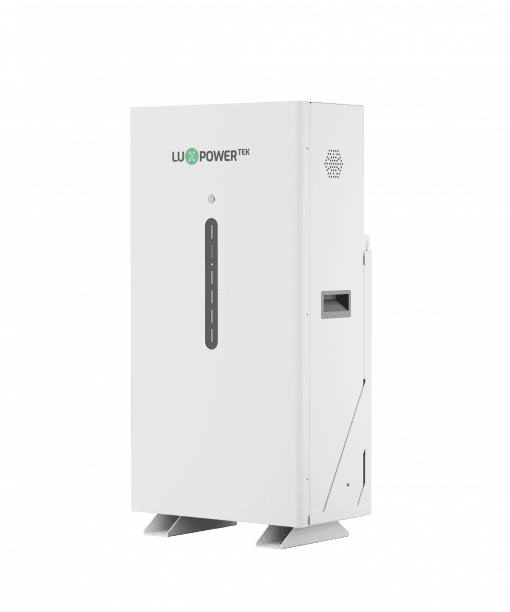

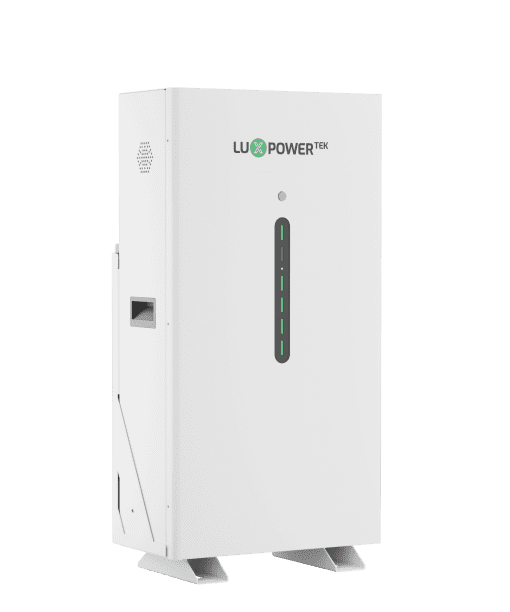

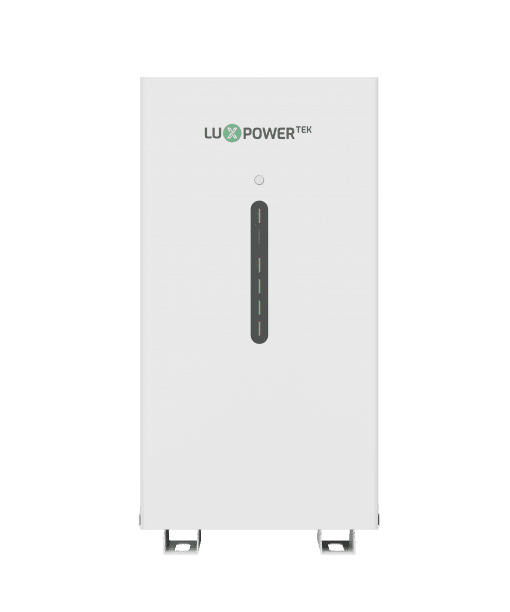

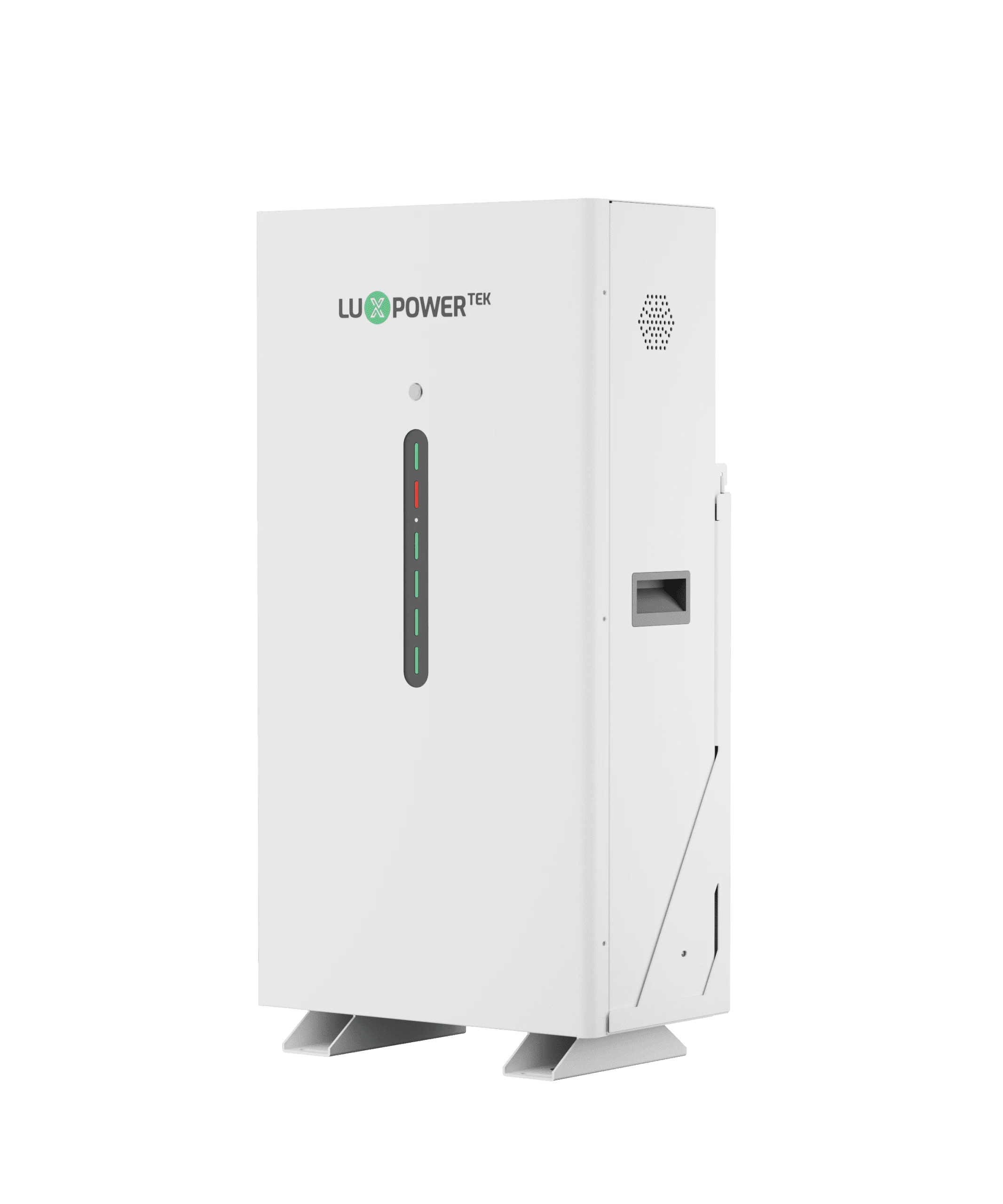

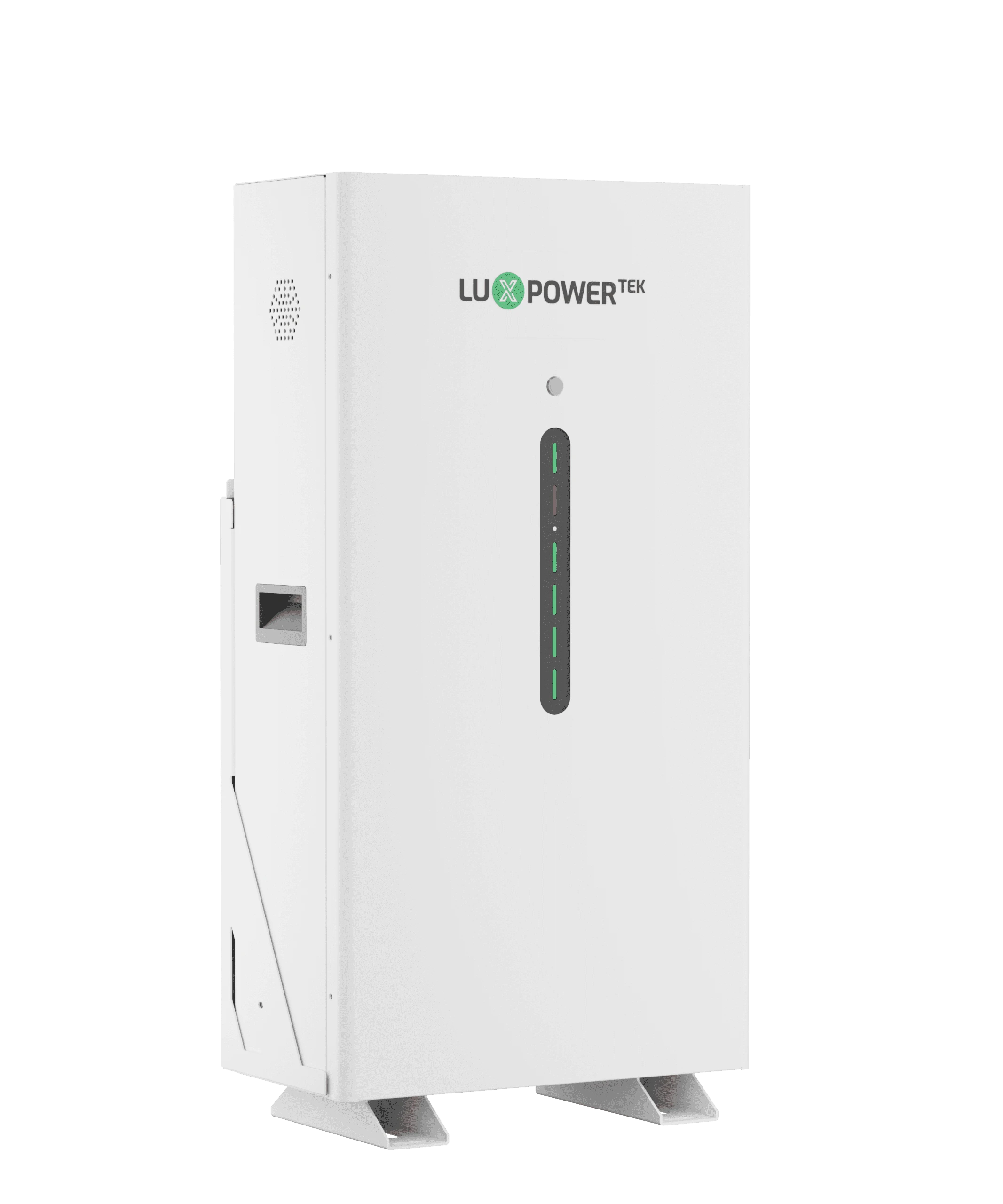

PGEM PRO 14.3kWh 51.2V LFP Battery

A high-capacity lithium inverter battery for home energy storage in Nigeria. PGEM PRO combines 14.3kWh nominal energy with a 51.2V, 280Ah LFP battery platform.

0.5C continuous charge/discharge rate
BMS protection and CAN/RS485 communication
Indoor installation, IP20 protection
Parallel expansion subject to the supplied model and system design
10-year warranty and 6000 cycles

Request a battery quote Explore battery options

Add to Wishlist

Categories: Battery Storage, PGEM PRO, Residential

14.3 kWh safe LFP chemistry

0.5C continuous charge/discharge

Wall-mounted / Grounded

Remote firmware upgrades

Smart BMS with auto-addressing

10-year warranty

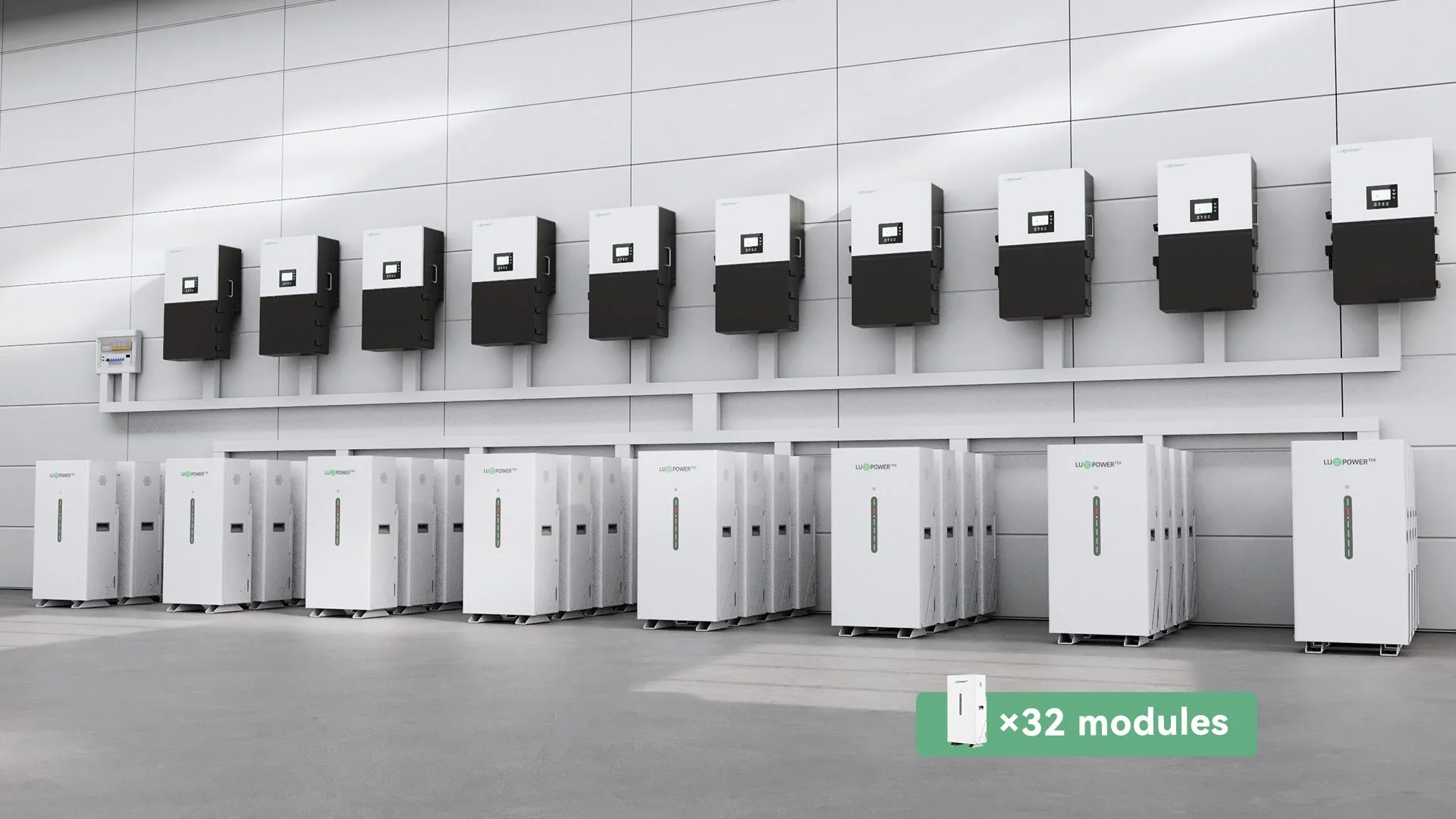

Parallel up to 32 modules

Higher Capacity, Longer Backup

With 14.3kWh of nominal energy and 280Ah rated capacity, PGEM PRO provides storage for essential loads during outages. Usable energy and backup time depend on the system settings and connected loads.

Advanced Smart BMS

Equipped with a powerful battery management system with auto-addressing, PGEM PRO offers multi-level protections against overvoltage, undervoltage, overcurrent, temperature extremes, and short circuits, with active balancing to extend battery life.

Robust & Flexible

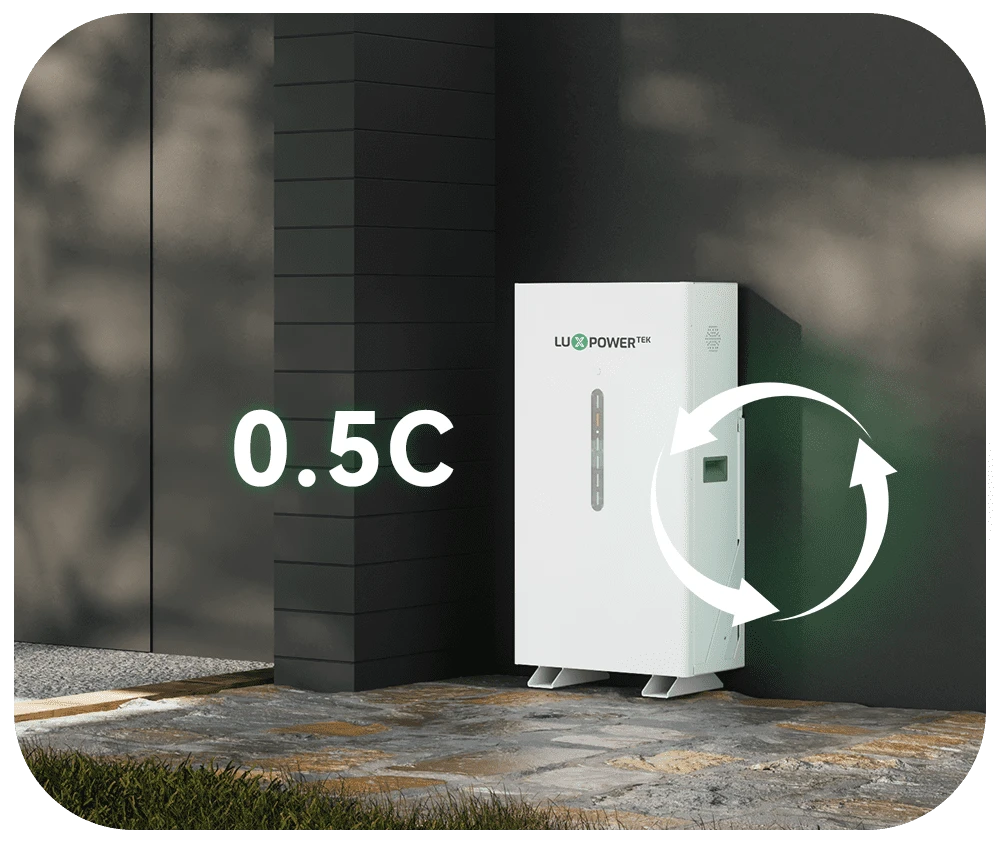

PGEM PRO has a 0.5C continuous charge/discharge rate. Starting loads must remain within both the battery and inverter limits; peak current is available only for the duration specified in the manual.

Effortless Expansion

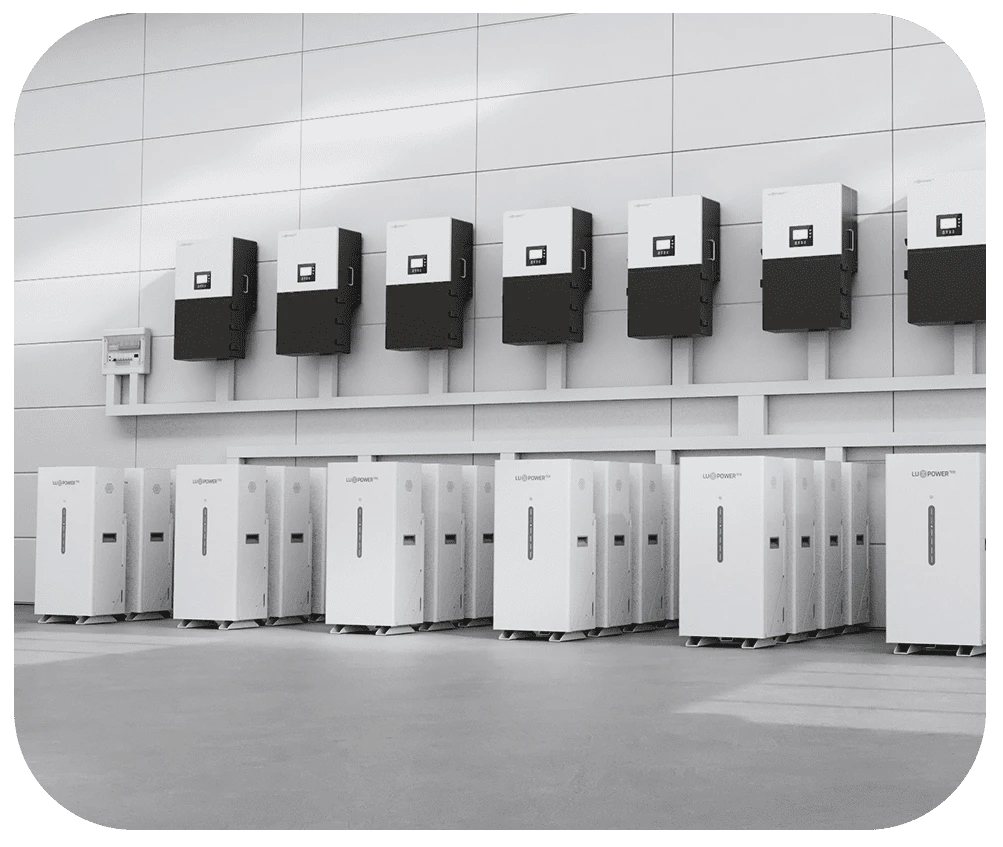

Parallel expansion supports larger storage requirements, subject to the supplied revision and approved system design. Cabling, isolation and electrical protection remain necessary.

Broad Compatibility

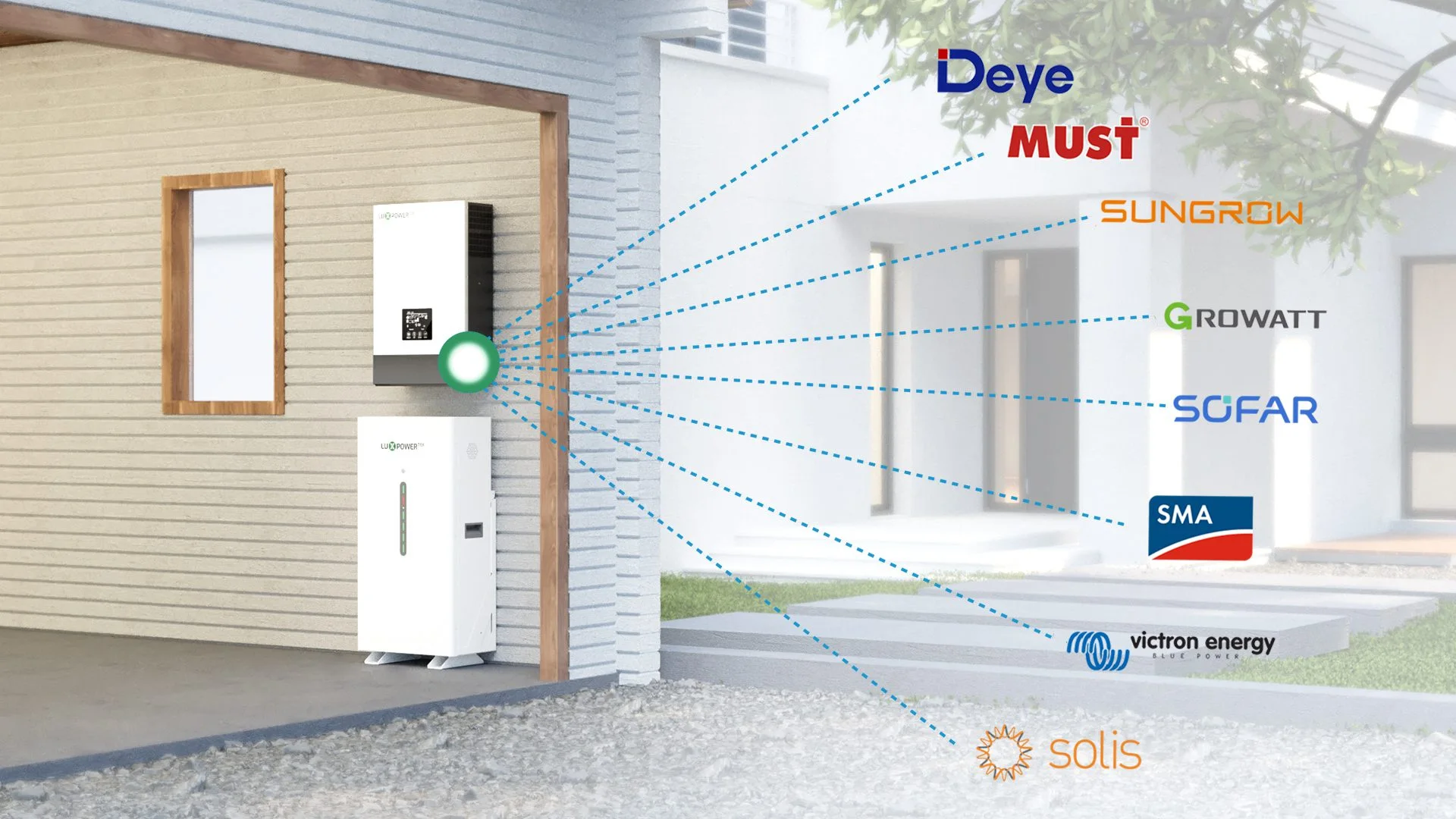

Compatibility depends on the exact inverter model, voltage range, BMS communication and firmware. Confirm the approved combination before purchase or expansion.

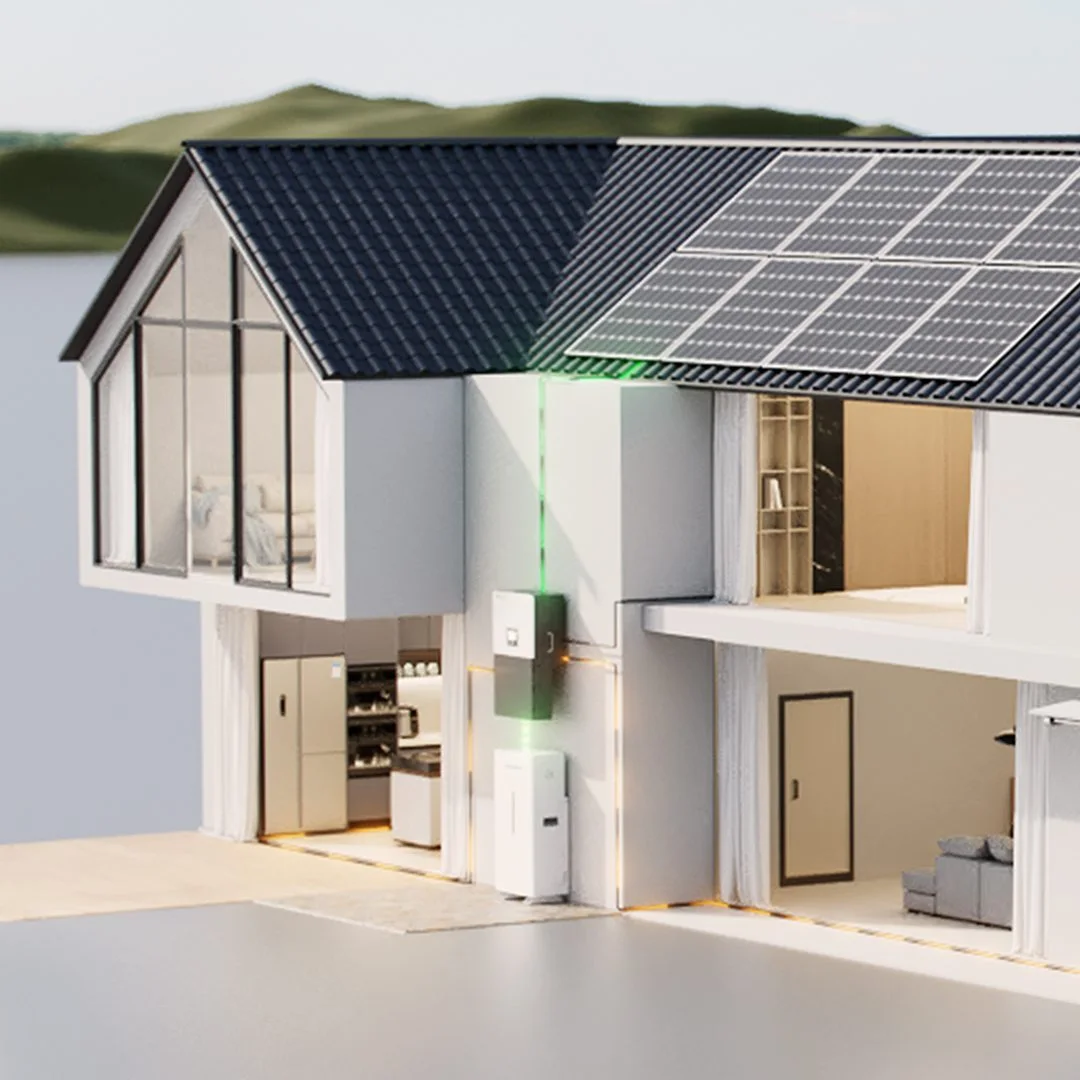

Ideal for Residential and Small Commercial Applications

Higher energy reserves for larger homes or light commercial loads

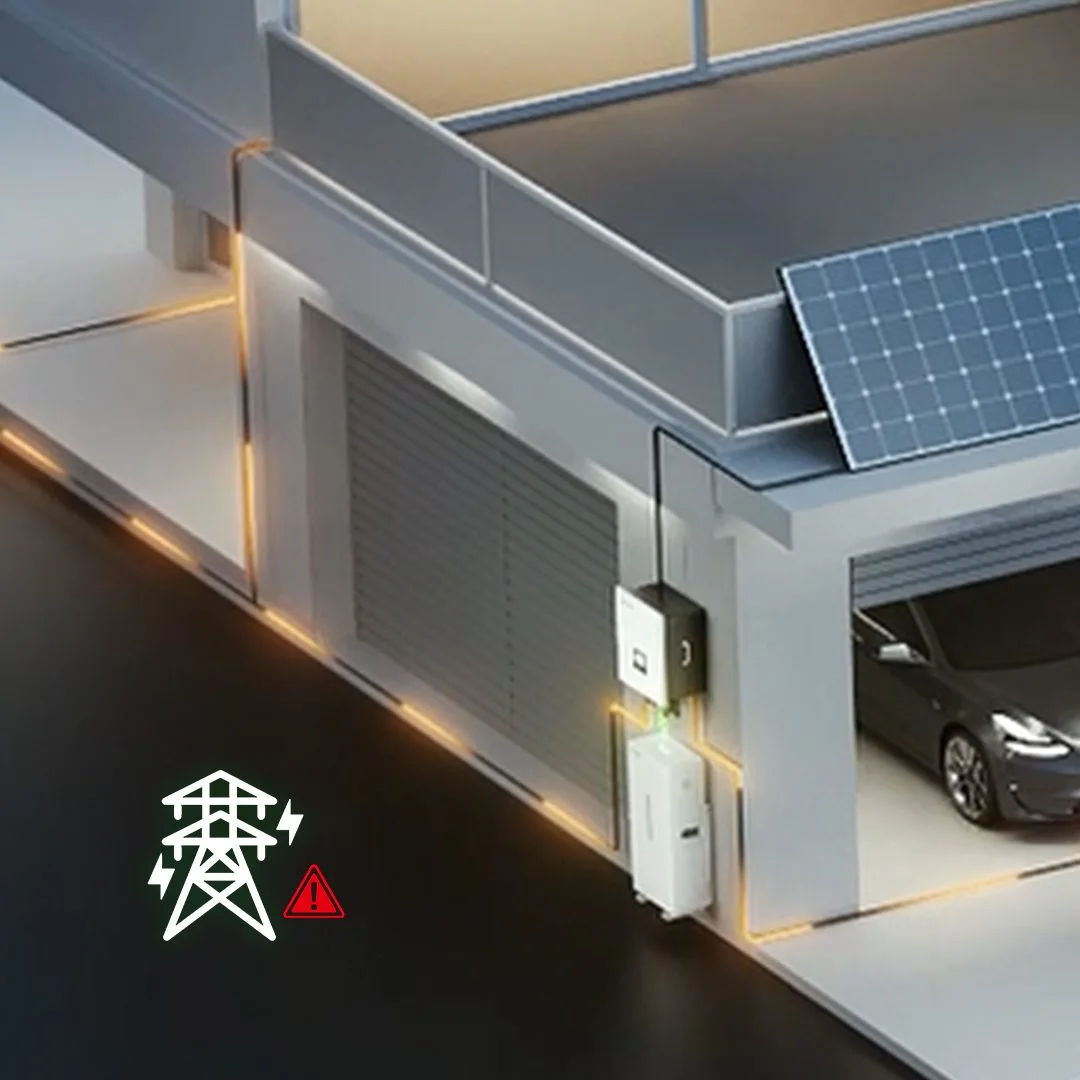

Reliable backup power during grid outages

Scalable solution for growing energy demands

Safe indoor installation, low maintenance

Reliable backup power during grid outages

Scalable solution for growing energy demands

Safe indoor installation, low maintenance

Remote Maintenance Support

Flexible remote upgrade options with built-in firmware backup provide a safer, easier path to keep your system up to date.

Specification

Model	PGEM PRO
Cell Type	LFP
Rated Energy	14.3kWh
Rated Capacity	280Ah
Rated Voltage	51.2V
Charge Voltage (Vdc)	56.5V
Battery Charge Current (A)	140A (Max. continuous) 150 A (Start limit current to 10A retest every 10 min) 160 A (Peak1 15s) 180 A (Peak2 500ms)
Battery DisCharge Current (A)	140 (max. continuous) 150 (start giving over-current alarm but not stop discharging) 160 (Peak1 5min) 200 (Peak2 500ms)
Parallel	Up to 32 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running
IP Level	IP20
Dimension (WHD)	475900238mm / 18.735.49.4 in
Weight	115kg / 253.5lbs
Communication	CAN/RS485
Robust Applications	Auto-addressing and stronger protection
DOD	90%
Cycles	6000
Compatible Inverter	Victron, Luxpower, Deye, Voltronic, SMA Goodwe, Growatt, Sofar, Solark, SRNE, Must
Humidity	5%~85% RH (No condensation)
Work Temperature	-20 ~ +55 ℃
Storage Temperature	-10 ~ +35 ℃
Remote Maintenance	Flexible remote upgrade, Original firmware backup to prevent upgrade failure
Warranty *	10 years, 6000 cycles
Certification	CE UN38.3; IEC62619
Protection	Overcharge/discharge/current/voltage/temperature protection Short circuit protection, Reverse connection protection Charge balance, Low SOC protection

Reviews

There are no reviews yet.

Be the first to review “PGEM PRO 14.3kWh 51.2V LFP Battery” Cancel reply

PGEM PRO battery guide

Choosing PGEM PRO for your system

PGEM PRO provides 14.3kWh of nominal storage in a 51.2V LFP battery module. For a Nigerian home or small business, choose capacity from the loads you want to keep running and the hours you need them.

PGEM or PGEM PRO?

Two low-voltage battery options for home backup
What to compare	PGEM	PGEM PRO
Nominal energy per module	5.12kWh	14.3kWh
Rated voltage	51.2V	51.2V
Rated capacity	100Ah	280Ah
Selection focus	A smaller amount of stored energy per module	More stored energy per module for a larger backup requirement

At the same load and usable-energy settings, a larger battery stores more energy for backup. The right choice also depends on available discharge power, inverter compatibility and installation space. Compare the PGEM 5.12kWh battery if your storage requirement is smaller.

What 14.3kWh means for backup power

Energy: how much is stored

The 14.3kWh figure is nominal capacity. Energy available to your appliances depends on the permitted depth of discharge, reserve setting, temperature, battery condition and inverter losses.

Power: what can run together

The battery's continuous current limit and the inverter's output limit both matter. An appliance with a motor may draw more power when starting than while running.

Estimate runtime from usable energy and average load. Lights, internet equipment and a refrigerator have a different daily profile from air conditioning or a pump. Send a load schedule for a system recommendation; capacity alone cannot establish how long the whole home will run.

See our inverter battery sizing and runtime guide for the planning method.

Matching PGEM PRO to your inverter

Our Nigeria installation records include PGEM PRO with SNA 6K and SNA-EU 12K inverters. Before choosing a new combination, confirm the inverter's battery voltage range, charge and discharge limits, BMS protocol and firmware.

For an existing system, send clear photos of both equipment labels. Compatibility with a brand does not mean every inverter from that brand is compatible.

PGEM PRO is a low-voltage battery. It is not interchangeable with PSTACK high-voltage storage, even when two systems have similar kWh capacities.

PGEM PRO in Nigerian homes

These Lagos installations show one-module and two-module battery arrangements with their recorded solar and inverter equipment.

PGEM PRO battery and SNA 6K inverter installed at Ajao Estate — Ajao Estate, Lagos · August 2025
14.3kWh with an SNA 6K
One PGEM PRO battery, one SNA 6K inverter and twelve 575W panels, totalling 6.9kWp of PV nameplate capacity.
Explore the Ajao Estate installation →

Two PGEM PRO batteries with an SNA-EU 12K inverter in Bariga Lagos — Bariga, Lagos · February 2026
28.6kWh with an SNA-EU 12K
Two PGEM PRO batteries, one SNA-EU 12K inverter and sixteen 720W panels, totalling 11.52kWp of PV nameplate capacity. The two batteries provide 28.6kWh of nominal storage. Actual backup time depends on the connected loads and battery settings.
Explore the Bariga installation →

The records document installed equipment. They do not establish a fixed backup duration or energy saving for another home.

Planning more battery capacityOne, two or more modules need a matched system design

1 module14.3kWh nominal

2 modules28.6kWh nominal

3 modules42.9kWh nominal

The capacity totals are arithmetic examples, not pre-approved packages. The published PGEM PRO range supports up to 32 units in parallel without an additional expansion device, subject to the supplied revision and approved design. Cabling, isolation, protection and suitable installation space are still required.

Before adding batteries later, have the installer review the existing modules, state of health, firmware, BMS configuration and inverter limits. More stored energy does not automatically increase AC output.

Indoor installation and local supportPlan access, mounting and the information needed for a quote

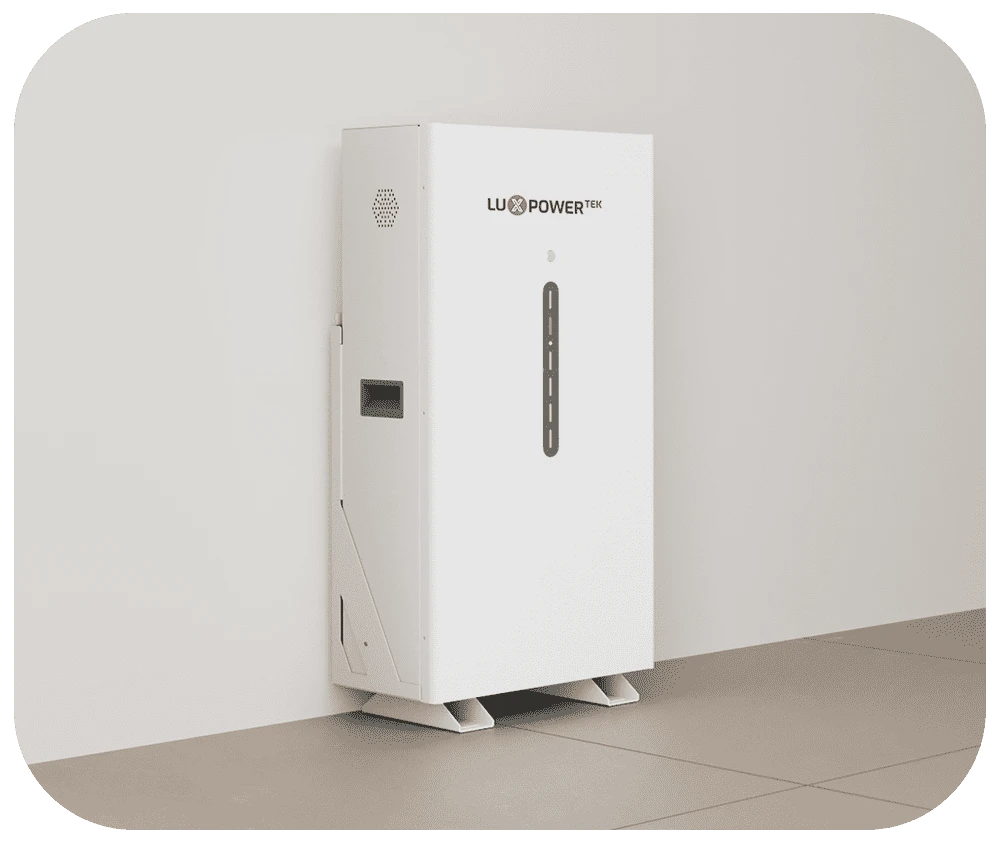

PGEM PRO has an IP20 enclosure. Choose a dry indoor position with suitable support, ventilation, cable routing and maintenance access. Check the supplied model's dimensions and weight before deciding on floor or wall mounting.

For a battery quotation, send the inverter model, required backup hours, appliances, location and any existing battery details. Ask whether mounting, protection, cabling, delivery and commissioning are included.

For after-sales help, keep the serial number, installation record and any fault screenshots ready. Visit warranty support or contact the Nigeria team.

Frequently asked questions

Is PGEM PRO 14.3kWh the energy available to my appliances?

14.3kWh is the nominal energy rating. Usable energy depends on depth of discharge, reserve settings, temperature and battery condition; inverter losses further affect energy delivered to AC appliances.

Can PGEM PRO work with my existing inverter?

Confirm the exact inverter and battery models, voltage range, continuous current limits, BMS protocol and firmware. A listed brand or a matching voltage alone does not establish compatibility for every model.

Can I add more PGEM PRO batteries later?

Expansion is possible only after checking the supplied revision, existing battery condition, firmware, communication, current sharing and protection. Have the installer approve the complete configuration before adding modules.

Can PGEM PRO be installed outdoors?

PGEM PRO is rated IP20 and needs a suitable dry indoor location. For a different installation environment, compare an appropriately rated battery and follow its model-specific installation requirements.

What is the PGEM PRO warranty and cycle rating?

PGEM PRO has a 10-year warranty and a 6000-cycle rating. Cycle life depends on operating conditions and is not a guaranteed number of backup hours. Request the written warranty terms for your supplied unit.

What should I include in a PGEM PRO quote request?

Send your city, inverter model, appliance list, target backup hours and existing battery details. Ask the quotation to identify delivery, mounting, cables, protection and commissioning as well as the battery.
