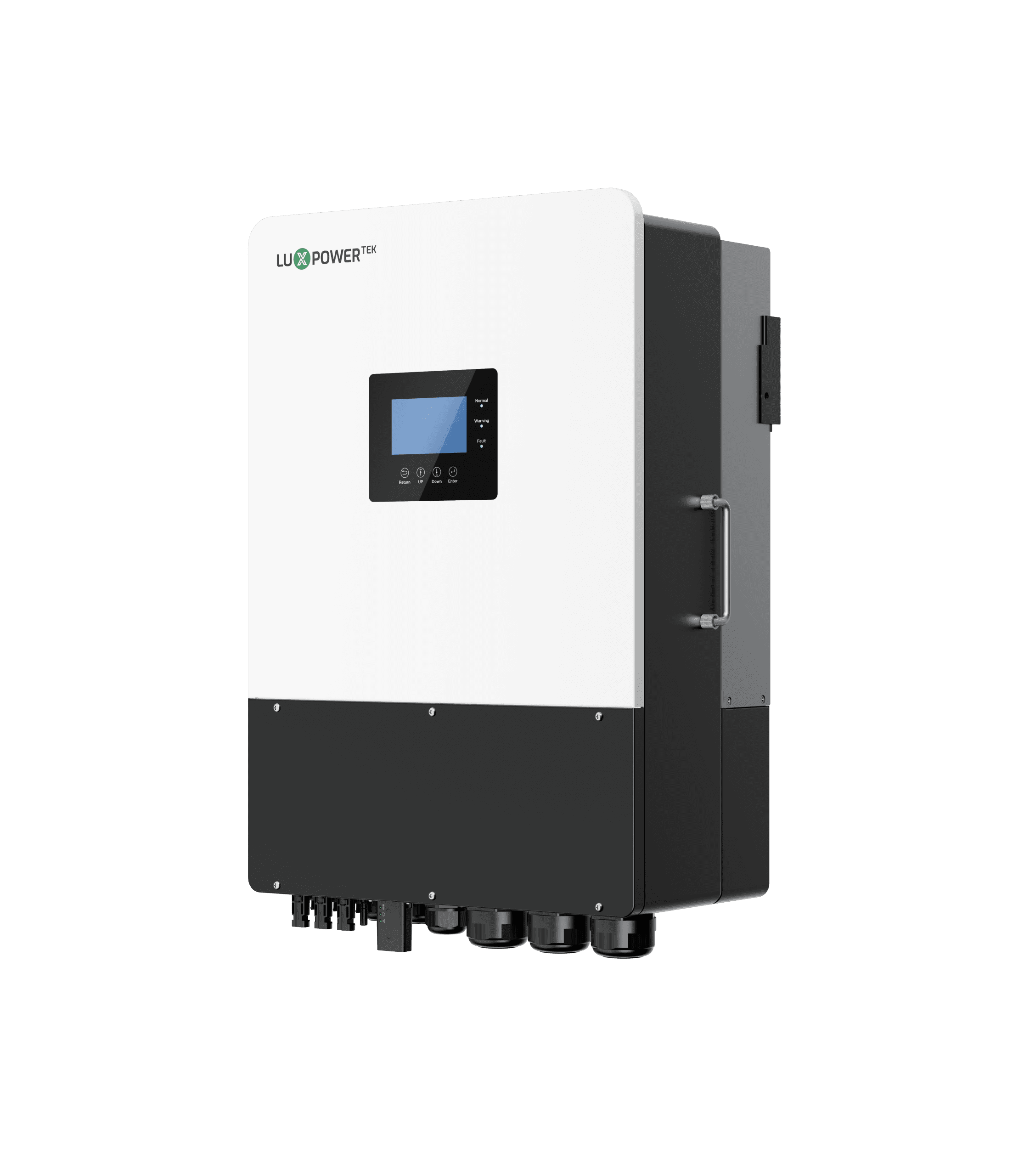

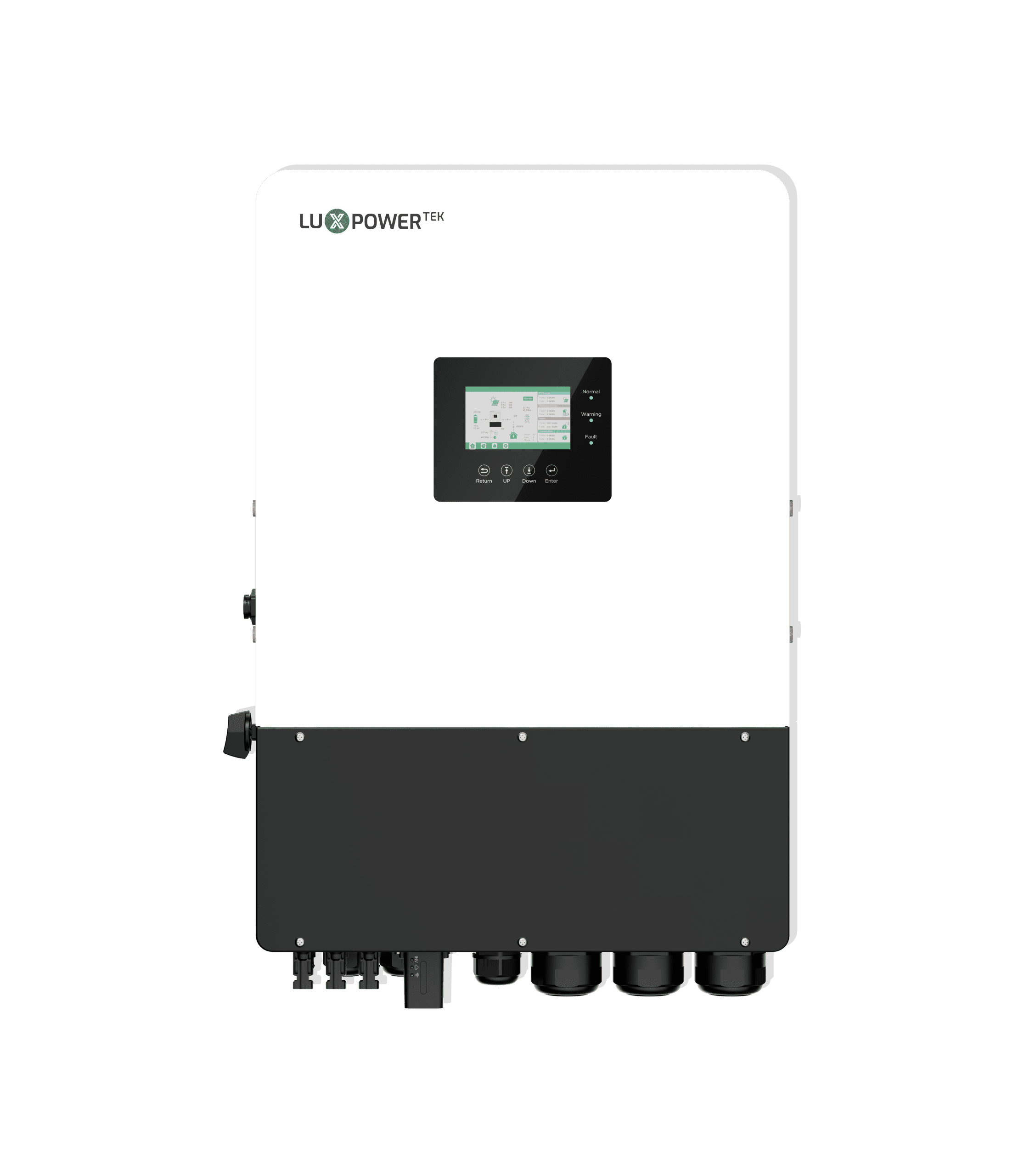

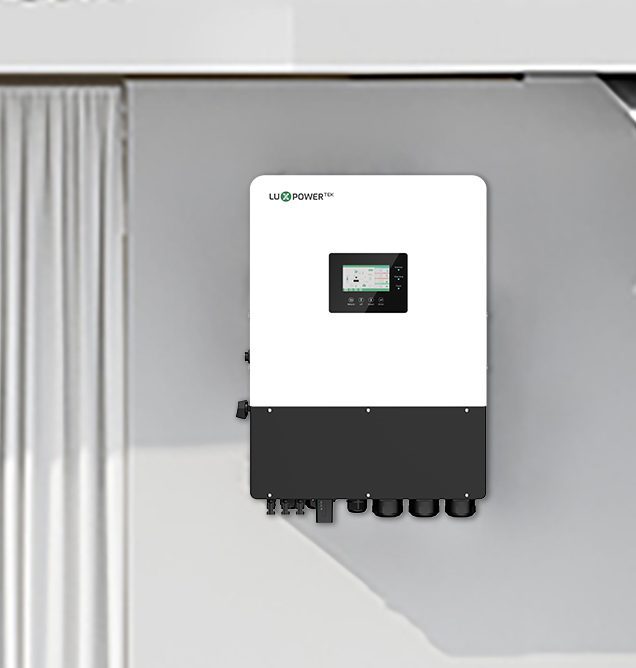

TriP2-LB-3P 5–20kW 3-Phase Hybrid Inverter

LuxpowerTek Nigeria solar energy project image

TriP2-LB-3P 5–20kW 3-Phase Hybrid Inverter

Q: When is a low-voltage three-phase hybrid inverter the right route?

TriP2-LB is relevant when a three-phase site wants hybrid solar and backup while continuing to use compatible 48/51.2V low-voltage battery storage.

Q: What makes three-phase low-voltage battery planning different?

Phase loads, unbalanced demand, battery current, cable runs, protection and metering all need site-level review, not only a simple inverter-size match.

Q: Can TriP2-LB be used for larger homes and light commercial loads?

Yes, when the load profile, phase balance, PV design, battery system and protection are checked by an installer before quotation and commissioning.

Q: Where can I get TriP2-LB documents and support?

Use the download centre for the current datasheet or manual, check the warranty page, and send model, serial number, site photos or PDF files through the Nigeria contact form when you need technical support.

Compare 10kW and 15kW hybrid inverter options with the 20kW TriP2-LB model for three-phase homes and businesses in Nigeria. Check battery-only power limits before sizing backup loads.

5–20kW AC output; 48V battery systems
Up to 30kW PV input with 3 MPPTs
Generator compatible; up to 10 units in an approved parallel configuration
IP66 protection and LuxCloud remote monitoring
5-year warranty

See the model-specific power limits or request a local quotation.

At a glance: TriP2-LB is a three-phase low-voltage hybrid inverter for 48/51.2V battery systems, larger homes and light commercial backup.

Add to Wishlist

Categories: Hybrid Series, Inverter, Three Phase, TriP2-LB-3P 5-20K

TriP2-LB-3P model selection, scenarios and quote inputs

The range includes 3P 5K, 3P 8K, 3P 10K, 3P 12K, 3P 15K and 3P 20K models. Select the model after checking phase loads, peak demand, motor starts and the battery system, rather than relying on the family name alone.

TriP2-LB-3P is intended for three-phase homes, shops, farms, offices and other light-commercial sites that need low-voltage battery storage, hybrid solar and scalable backup. Match the selected model to the site’s phase balance, essential circuits and planned expansion.

On the 20K model, 30kW is the maximum PV input rating, not a 30kW AC output rating. The May 2026 datasheet lists maximum battery charge/discharge power of 12kW for the 12K, 15K and 20K models; the 15K and 20K UPS ratings are marked PV + Battery.

For a quotation, send the preferred model or target load, supply type, essential circuits, motor-starting loads, battery model and voltage, PV size, generator requirement, backup target and installation location. Up to 10 units may be connected in an approved parallel configuration. See the TriP2-LB datasheet and manual for model-specific limits.

Perfect for Three-Phase Homes & Businesses

Stable Power for High-Demand Loads; Supports larger installations like farms, offices, schools, or three-phase homes—smoothly powering compressors, pumps, and appliances simultaneously.

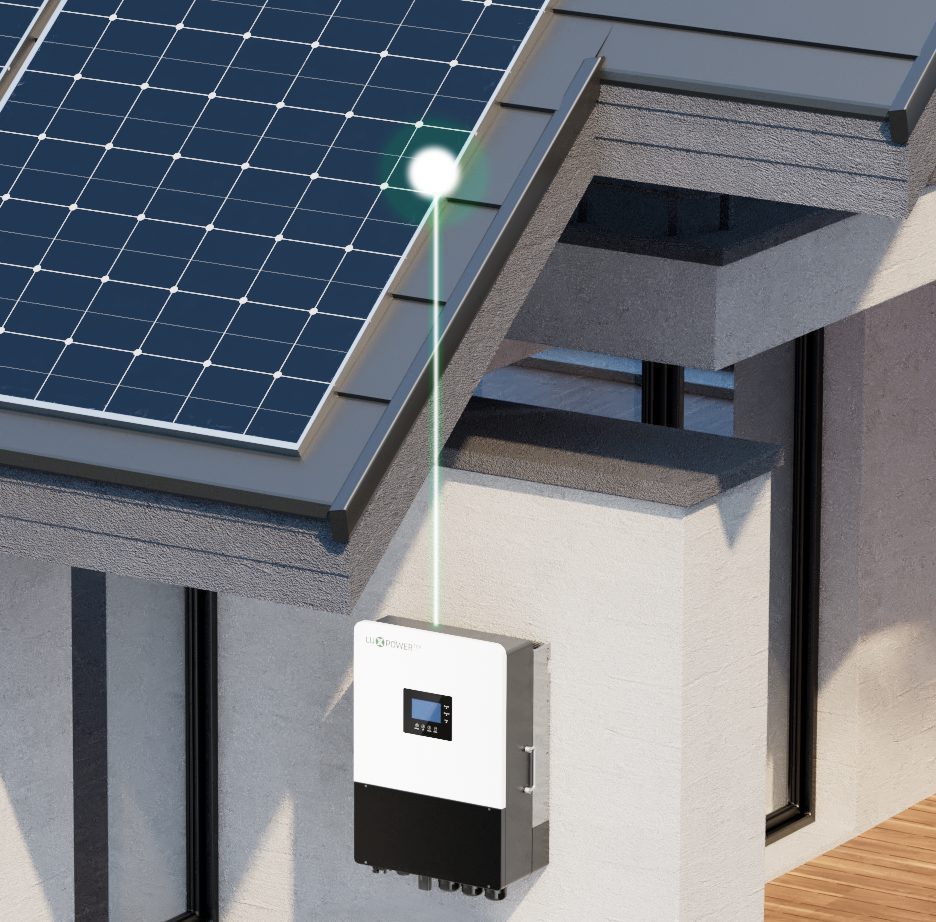

Massive Solar Input, Up to 30kW PV with 3 MPPTs

Accepts high-capacity solar arrays with flexible configuration. Ideal for maximizing energy harvest in hot, sunny Nigerian environments.

Intelligent Energy Scheduling, Smart TOU Mode with AI Efficiency

Manage energy flow based on time-of-use tariffs or let the system decide when to charge or discharge for cost-efficiency.

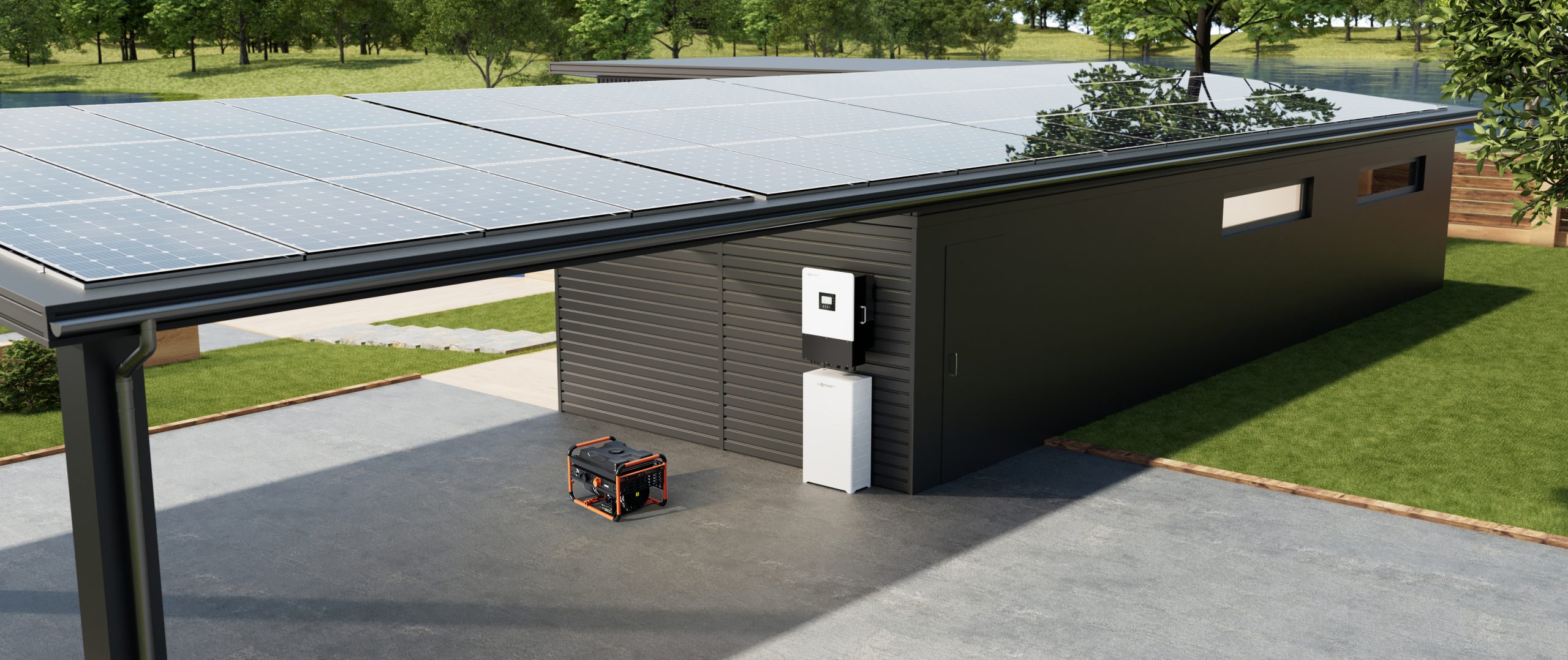

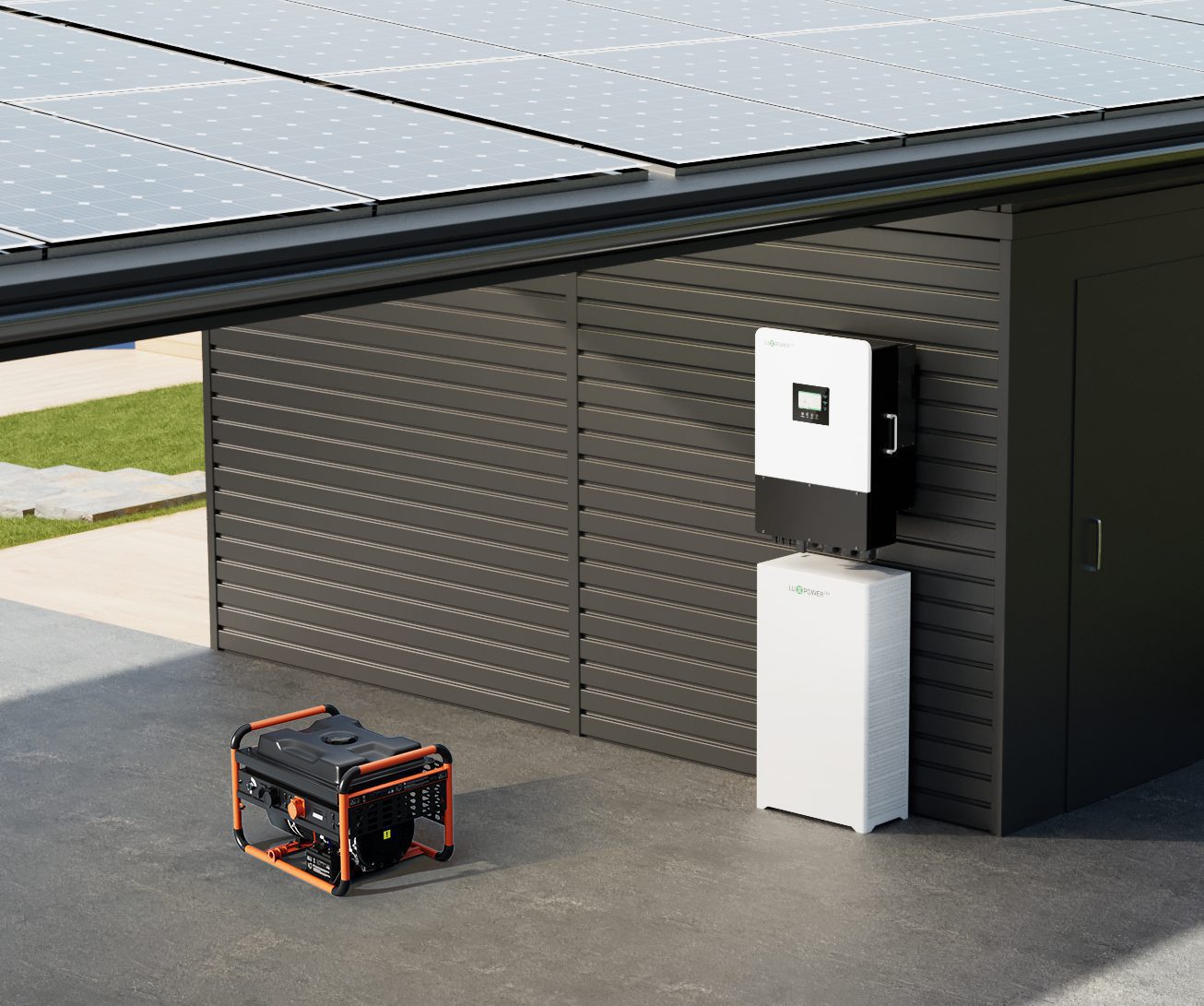

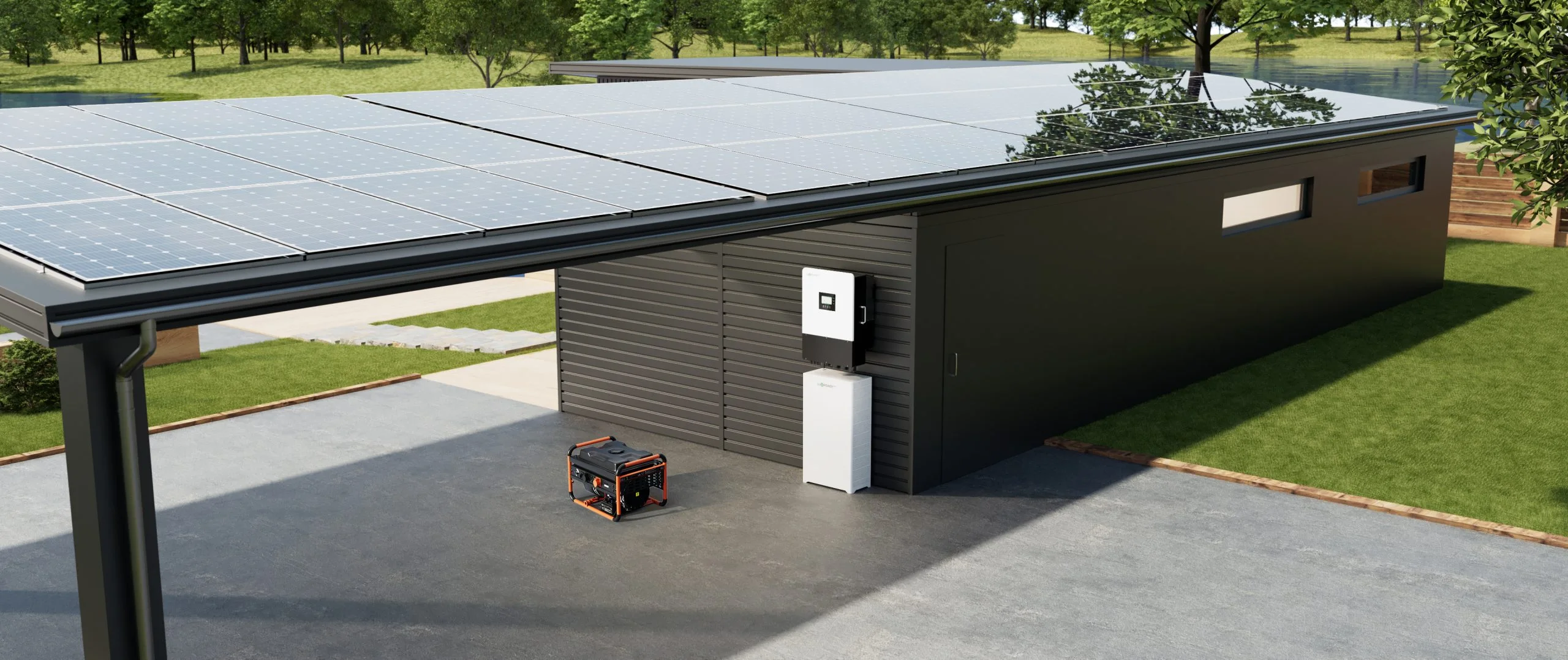

Generator-Ready & Grid-Aware

Multiple Input Sources for Stable Supply, Seamlessly integrates diesel generators, PV, grid, and batteries. Perfect for off-grid or weak-grid zones.

Easy to Scale, Easy to Manage

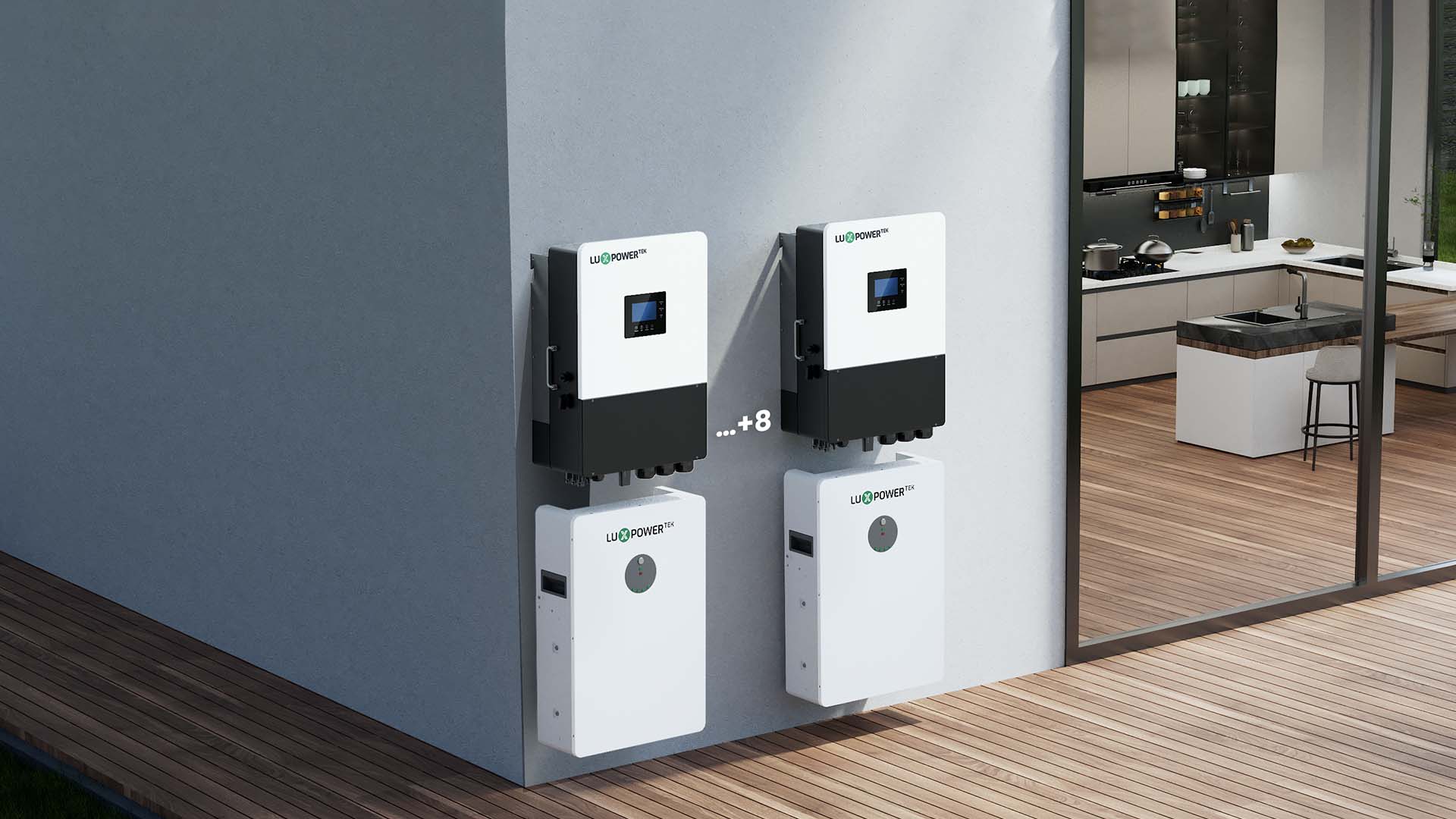

Parallel Support for Growing Needs, 3P 5K–20K models; up to 10 units may be connected in an approved parallel configuration. Total system output depends on the selected models and site design. Designed to grow with your family or business.

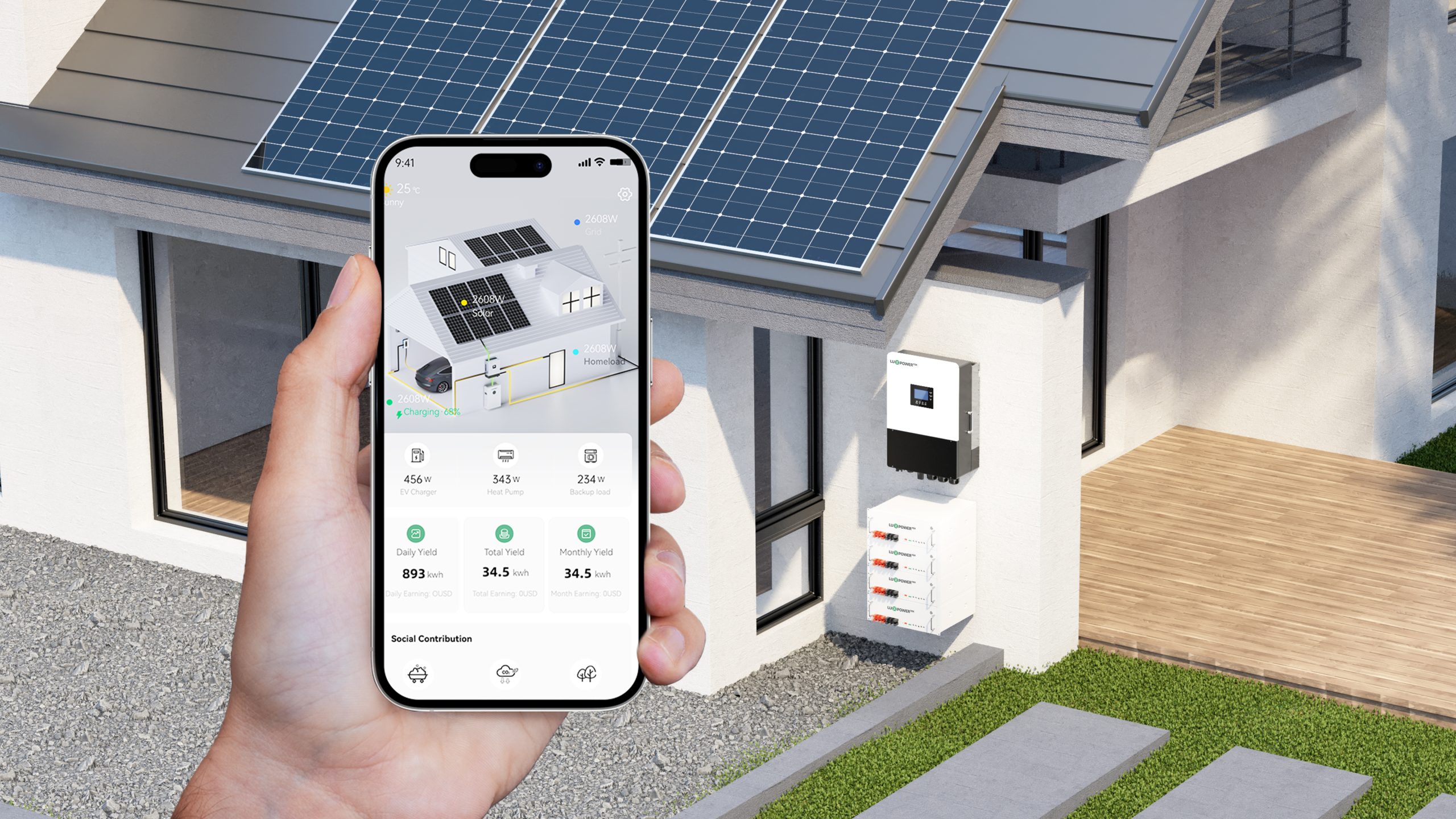

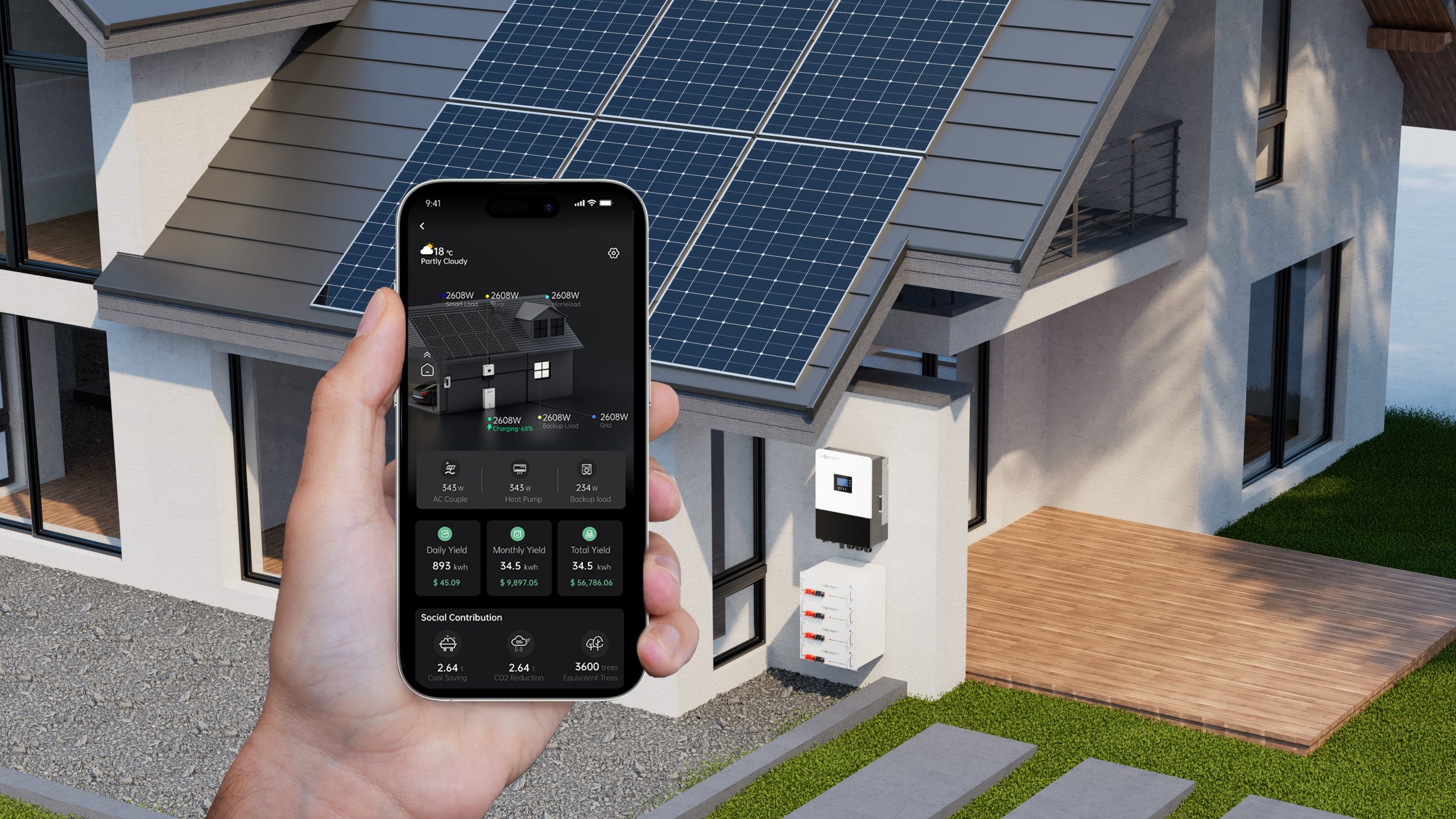

Full Remote Monitoring & OTA Updates

Stay Connected, Anywhere; Monitor your entire energy system from the LuxCloud platform or mobile app. Configure settings and receive alerts anytime.

Built to Endure Nigerian Conditions, IP66, Heat-Tolerant, Dust-Resistant

Handles the country’s toughest climate zones. Engineered for durability in workshops, homes, or commercial settings.

Output Power

5kW / 8kW / 12kW / 20kW

Max PV Input

30kW (3 MPPTs)

Battery Voltage: 48V

Compatibility

Lithium, Lead-acid, Diesel Generator

Monitoring

Wi-Fi / Ethernet / LuxCloud

Mode Switching

On-grid / Off-grid / Hybrid

Parallel Support

Up to 10 units

Warranty: 5 years

Protection IP66

Perfect for Three-Phase Homes & Businesses

Stable Power for High-Demand Loads; Supports larger installations like farms, offices, schools, or three-phase homes—smoothly powering compressors, pumps, and appliances simultaneously.

Massive Solar Input, Up to 30kW PV with 3 MPPTs

Accepts high-capacity solar arrays with flexible configuration. Ideal for maximizing energy harvest in hot, sunny Nigerian environments.

Intelligent Energy Scheduling, Smart TOU Mode with AI Efficiency

Manage energy flow based on time-of-use tariffs or let the system decide when to charge or discharge for cost-efficiency.

Generator-Ready & Grid-Aware

Multiple Input Sources for Stable Supply, Seamlessly integrates diesel generators, PV, grid, and batteries. Perfect for off-grid or weak-grid zones.

Easy to Scale, Easy to Manage

Full Remote Monitoring & OTA Updates

Stay Connected, Anywhere; Monitor your entire energy system from the LuxCloud platform or mobile app. Configure settings and receive alerts anytime.

Built to Endure Nigerian Conditions, IP66, Heat-Tolerant, Dust-Resistant

Handles the country’s toughest climate zones. Engineered for durability in workshops, homes, or commercial settings.

Specification

Model	TriP2-LB-3P 5K	TriP2-LB-3P 6K	TriP2-LB-3P 8K	TriP2-LB-3P 10K	TriP2-LB-3P 12K	TriP2-LB-3P 15K	TriP2-LB-3P 20K
Input (PV DC)
Max. PV input power (W)	7500	9000	12000	15000	18000	22500	30000
Rated PV input voltage (V)	690
Number of independent MPPT inputs	3/(1:1:1)
Max. PV input voltage (V)	1000
MPPT voltage range (V)	200~900
Start-up voltage (V)	100
Max. PV input current per MPPT	20/20/20
Max. PV short-circuit current input per MPPT (A)	25/25/25
Battery
Compatible battery type	Lithium-ion/Lead-Acid
Battery voltage range (V)	40-60
Max. charging/discharging current (A)	125	150	200	220	250	250	250
Max. charging/discharging power (W)	5000	6000	8000	10000	12000	12000	12000
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Input AC (Grid)
Input voltage(3Φ)	3L/N/PE, 230/400Vac
Rated AC frequency (Hz)	50/60
Max. AC intput power (W)	6250	7500	10000	12500	15000	18750	25000
Max. AC input current (A)	9	10.9	14.5	18.1	21.8	27.1	36.25
Output AC (Grid)
Rated AC voltage (V)	3L/N/PE, 230/400Vac
Rated AC frequency (Hz)	50/60
Rated AC output power (W)	5000	6000	8000	10000	12000	15000	20000
Rated AC output current (A)	7.20	8.70	11.60	14.50	17.40	21.70	29.00
PF	0.99(Adjustable from 0.8 leading to 0.8 lagging)
THDI	<3%
Max. continuous AC passthrough current (A)	30			50			70
GEN
Rated GEN voltage (V)	3L/N/PE, 230/400Vac
Rated GEN frequency (Hz)	50/60
Rated GEN input current (A)	30
Rated GEN input power (W)	20700
UPS
Rated output power (W)	5000	6000	8000	10000	12000	15000(PV+Battery)	20000(PV+Battery)
Rated output voltage (V)	3L/N/PE, 230/400Vac
Rated output current (A)	7.20	8.70	11.60	14.50	17.40	21.70	29.00
Rated output frequency (Hz)	50/60
Surge power, duration	1.5Pn, 5min
Switching time	≤10ms
Wave form	Sine wave
THDV	<3%
Efficiency
Max. efficiency	97.7%
EU efficiency
Max. charge/discharge efficiency	94.0%
Protection
PV reverse polarity protection	YES
Over current/voltage protection	YES
Anti-islanding protection	YES
AC Short-circuit protection	YES
Leakage current protecion	YES
Grid monitoring	YES
DC switch	YES
Ingress protection	YES
DC Surge protection	Type III
AC Surge protection	Type III
General
Dimensions (WHD)	480703258mm / 18.927.710.2 in
Weight	53kg / 116.8 lbs
Ingress protection rating	IP66
Operating environment temperature range (°C)	-25~+60, >45℃ derating
Storage temperature range (°C)	-25~+60
Relative humidity	0~100%
Display & Communication interface	Touch color screen, RS485/Wifi/CAN
Warranty	5/10 years
Cooling method	Smart cooling
Topology	Transformer-less
Altitude	<2000m
Noise emission (typical)	<50dB
Standards & Certification	EN 62109/EN 61000, IEC 61683, PTPIREE TypeA

Reviews

There are no reviews yet.

Be the first to review “TriP2-LB-3P 5–20kW 3-Phase Hybrid Inverter” Cancel reply

Model selection

Planning with the TriP2-LB 5-20kW Three-Phase Low-Voltage Hybrid Inverter

Best fit

Three-phase sites that need low-voltage battery storage and scalable hybrid power.

Check before installation

Measure phase loads, peak demand and motor starts, then verify battery current, PV design and protection coordination.

FAQ

When is a low-voltage three-phase hybrid inverter the right route?

TriP2-LB is relevant when a three-phase site wants hybrid solar and backup while continuing to use compatible 48/51.2V low-voltage battery storage.

What makes three-phase low-voltage battery planning different?

Phase loads, unbalanced demand, battery current, cable runs, protection and metering all need site-level review, not only a simple inverter-size match.

Can TriP2-LB be used for larger homes and light commercial loads?

Yes, when the load profile, phase balance, PV design, battery system and protection are checked by an installer before quotation and commissioning.

Where can I get TriP2-LB documents and support?

Use the download centre for the current datasheet or manual, check the warranty page, and send model, serial number, site photos or PDF files through the Nigeria contact form when you need technical support.

Local project support

Confirm compatibility before you buy

Share your loads, supply type, target backup time and installation location. Our team can help narrow the inverter and battery options before a final site assessment.
