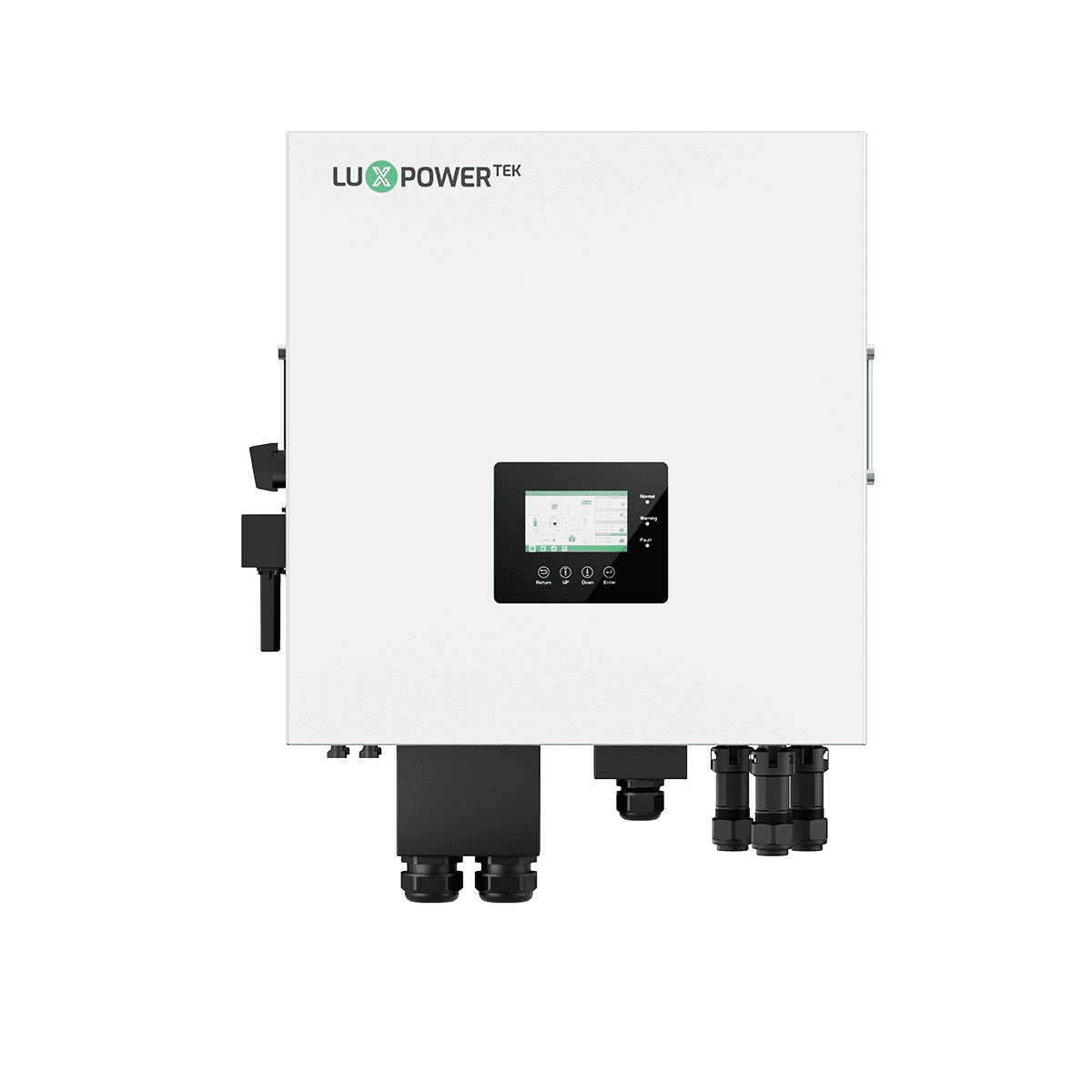

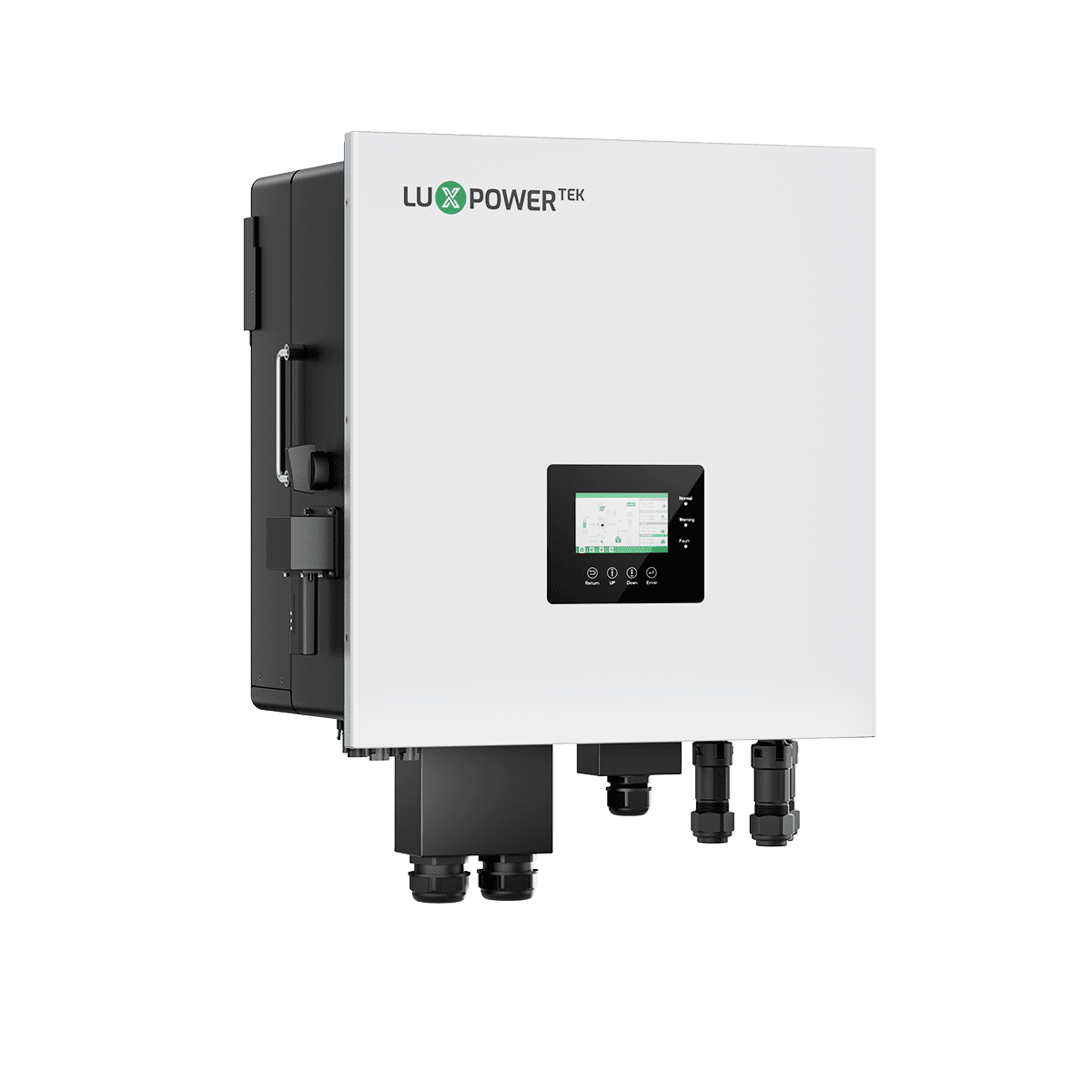

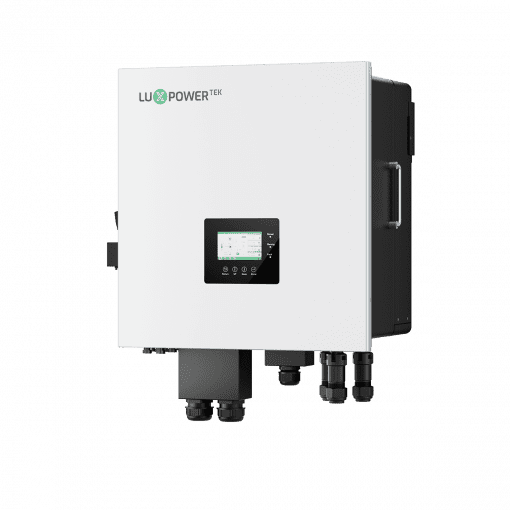

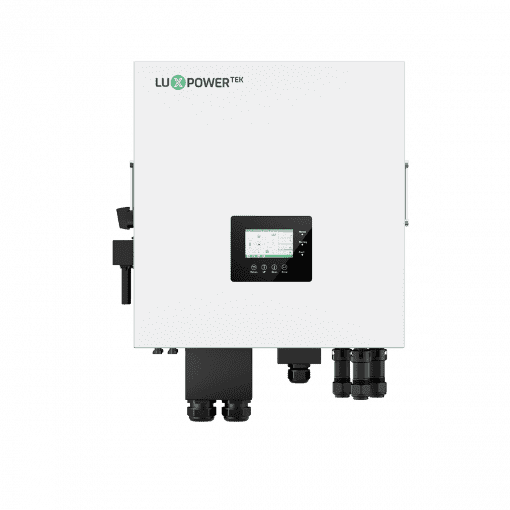

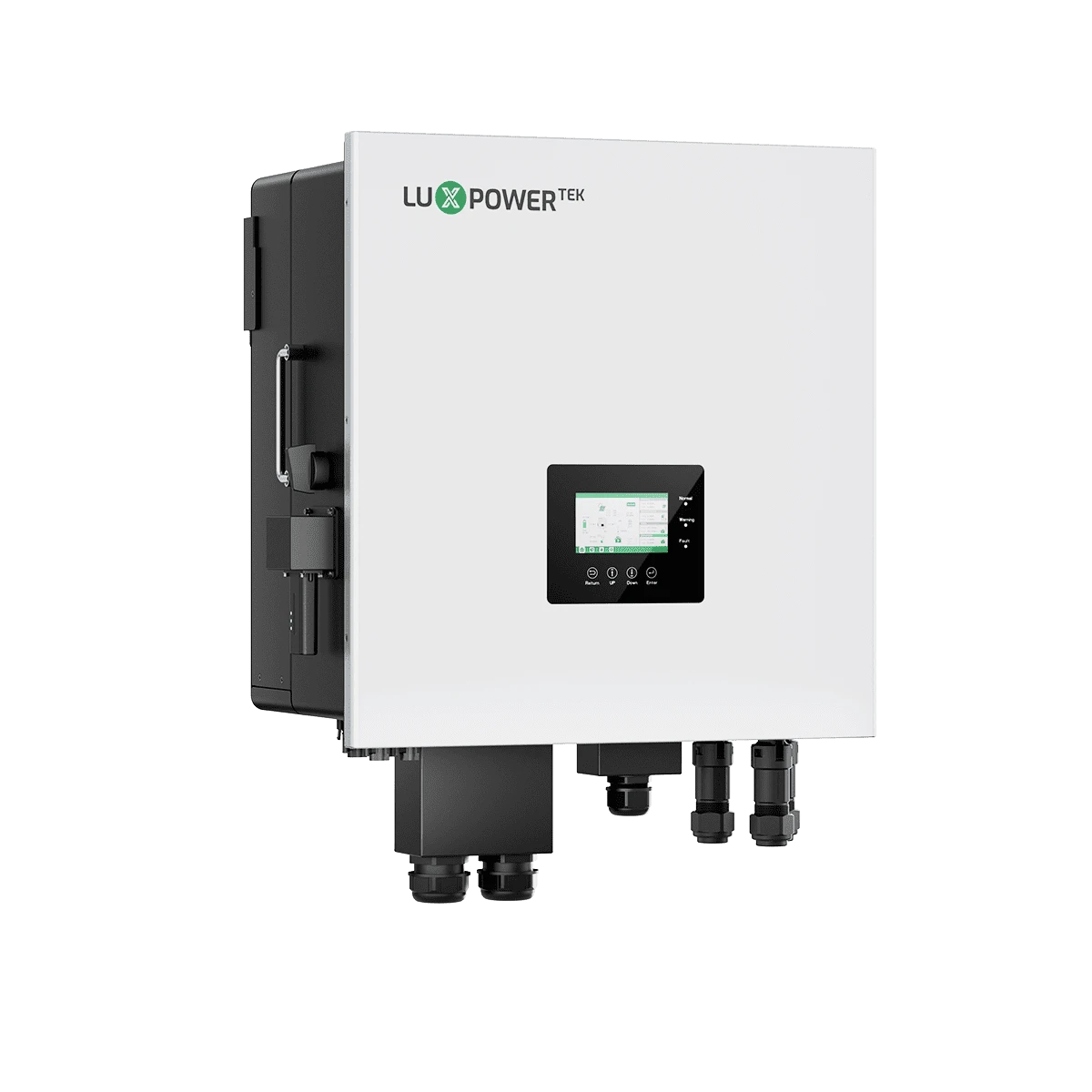

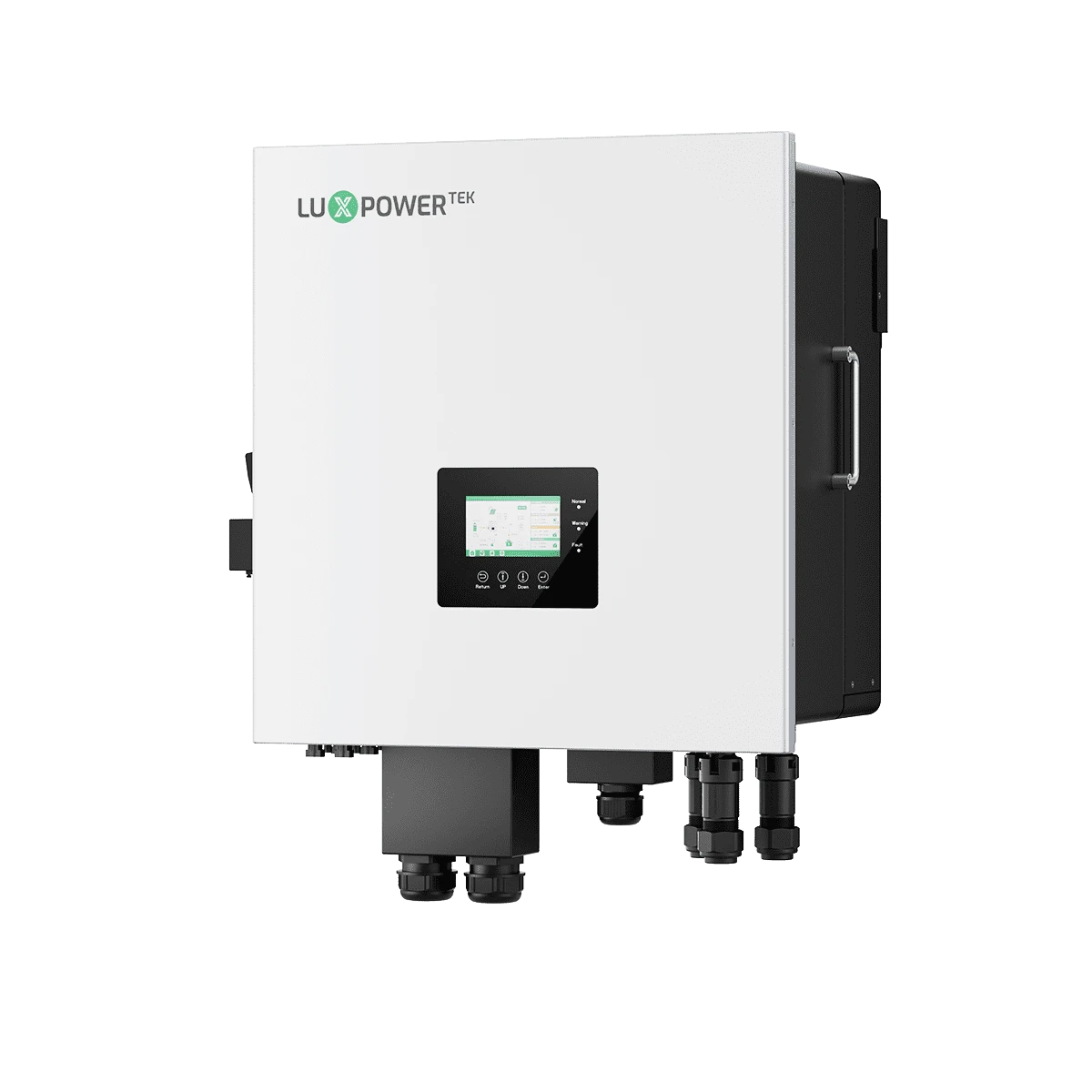

GEN-LB-EU 7-10K Hybrid Inverter More Power. More Control. Built for Resilience.

Q: When is the GEN-LB-EU 7-10kW range better than a smaller hybrid inverter?

Use this range when a single-phase home or light commercial site has higher simultaneous loads and needs more headroom for solar, battery and backup operation.

Q: What matters most before choosing a 10kW single-phase hybrid inverter?

Check peak load, startup current, PV string design, battery current, generator behaviour and whether the building supply should remain single phase.

Q: Can existing panels or batteries be reused with GEN-LB-EU 7-10kW?

Only after a qualified installer checks voltage windows, current limits, BMS communication, firmware and protection. Similar-looking batteries or panels are not automatically compatible.

Q: Where can I get GEN-LB-EU 7-10kW documents and support?

Use the download centre for the current datasheet or manual, check the warranty page, and send model, serial number, site photos or PDF files through the Nigeria contact form when you need technical support.

Single-phase 230V inverter, 7-10kW output

Supports large PV input (up to 15kW) with dual MPPT

On-grid and off-grid ready

Built-in generator interface

Remote monitoring via app and LuxCloud

Ideal for homes, farms, and small businesses

5-year warranty

At a glance: The GEN-LB-EU 7-10K range includes a 10kW single-phase hybrid inverter for larger homes and light commercial backup projects.

Categories: GEN-LB-EU-7-10K, Hybrid Series, Inverter, Single Phase

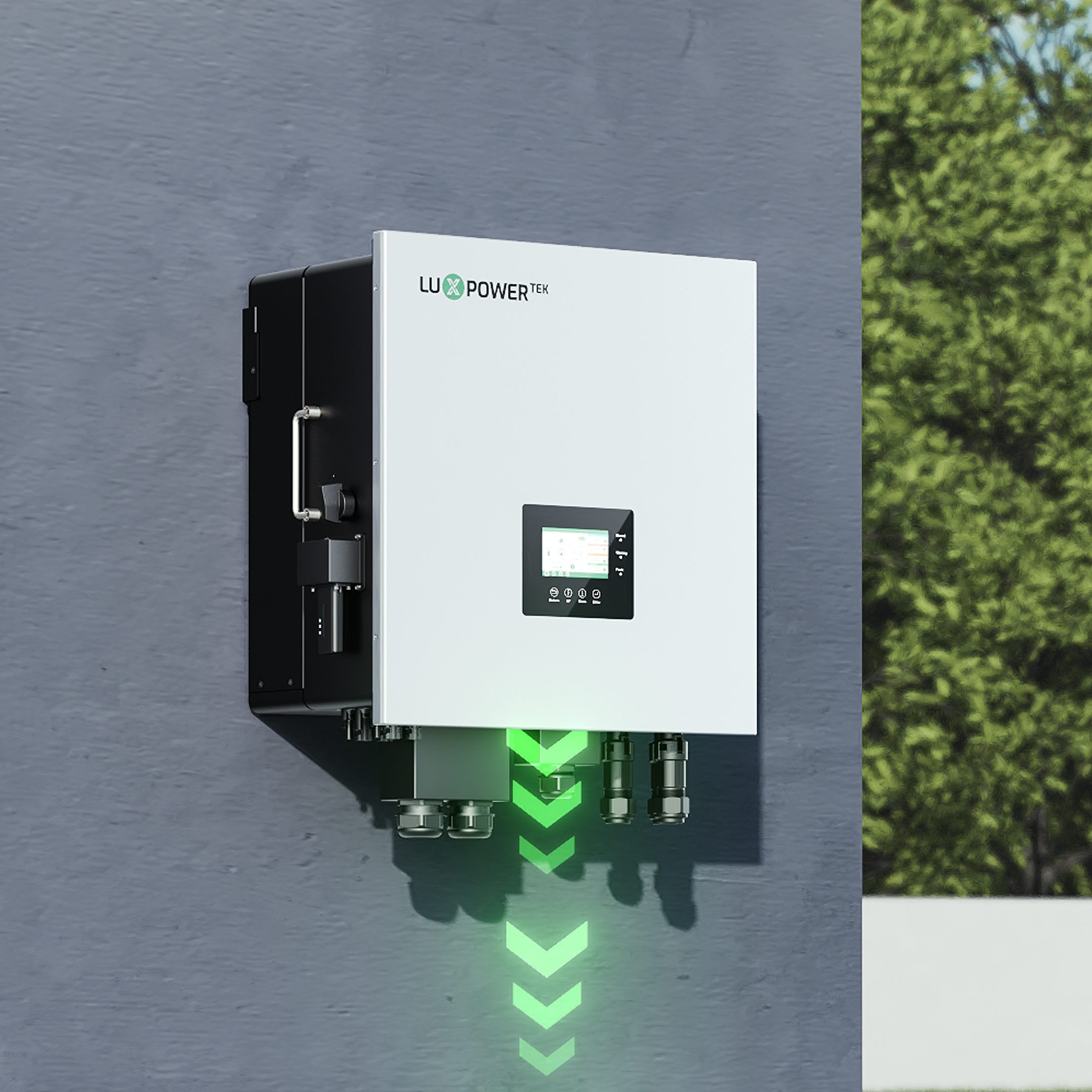

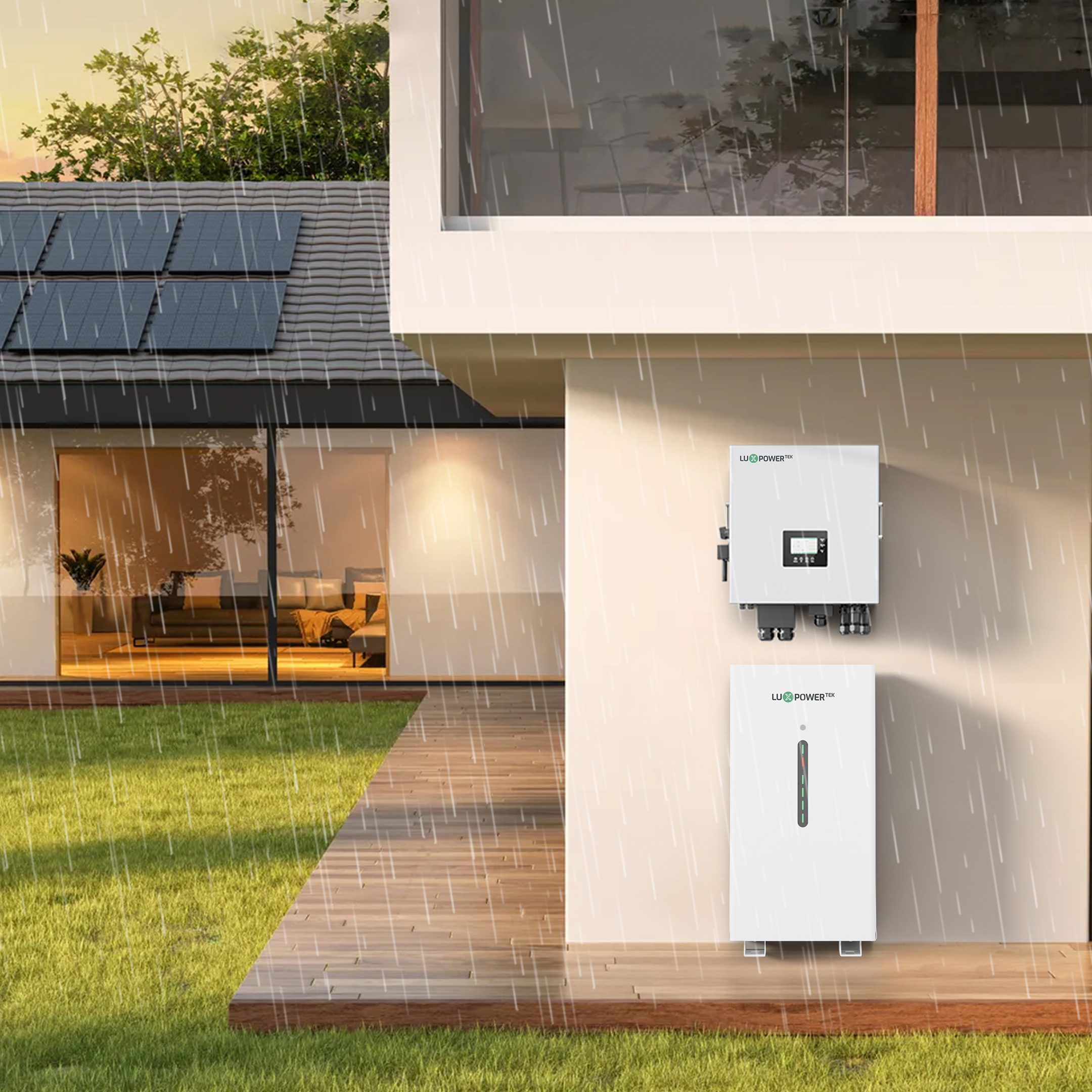

Built for the Nigerian Environment
Dustproof, Waterproof, and Heat-Resistant

IP66-rated design with optimized airflow ensures long-term durability in harsh weather conditions.

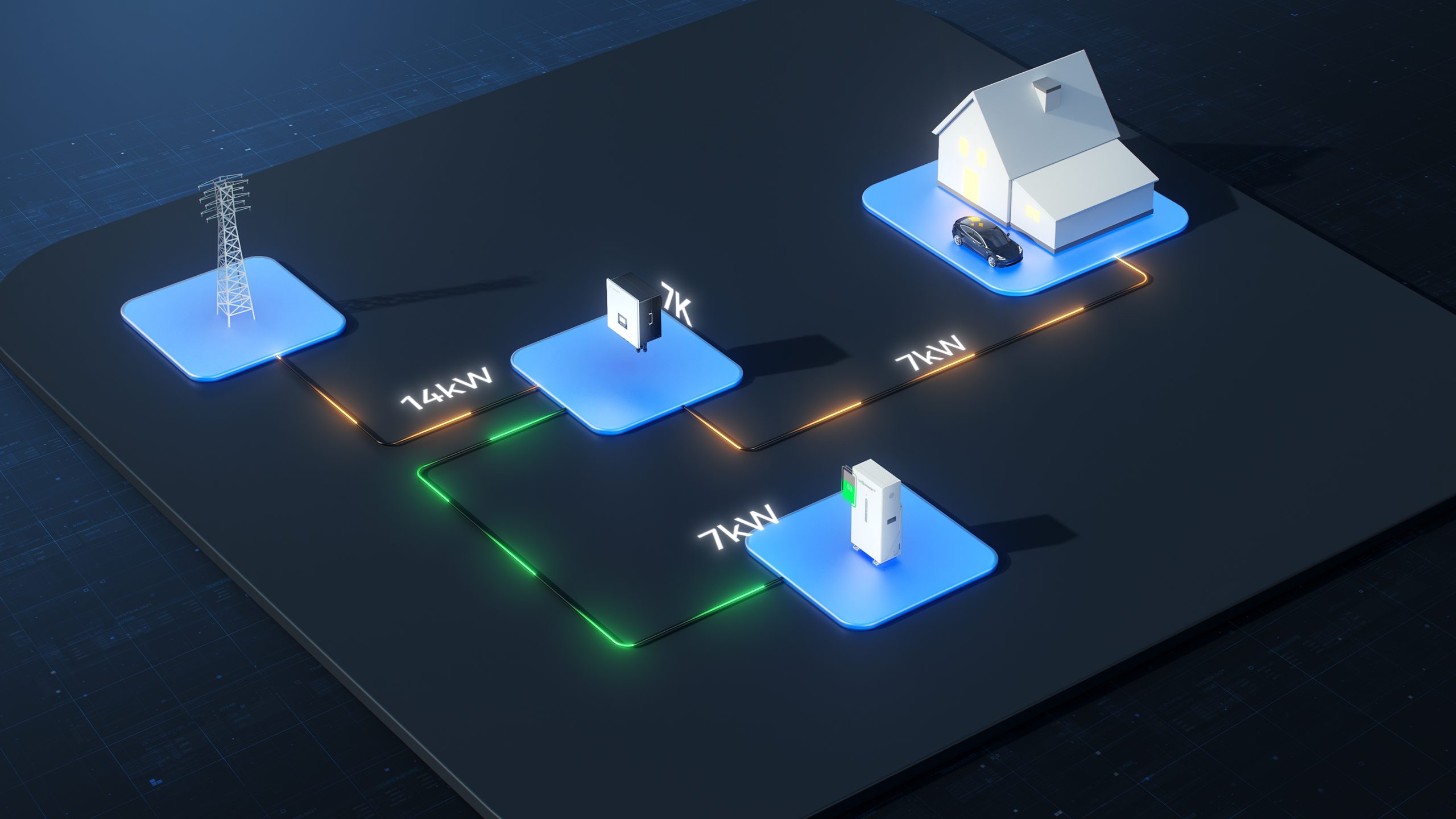

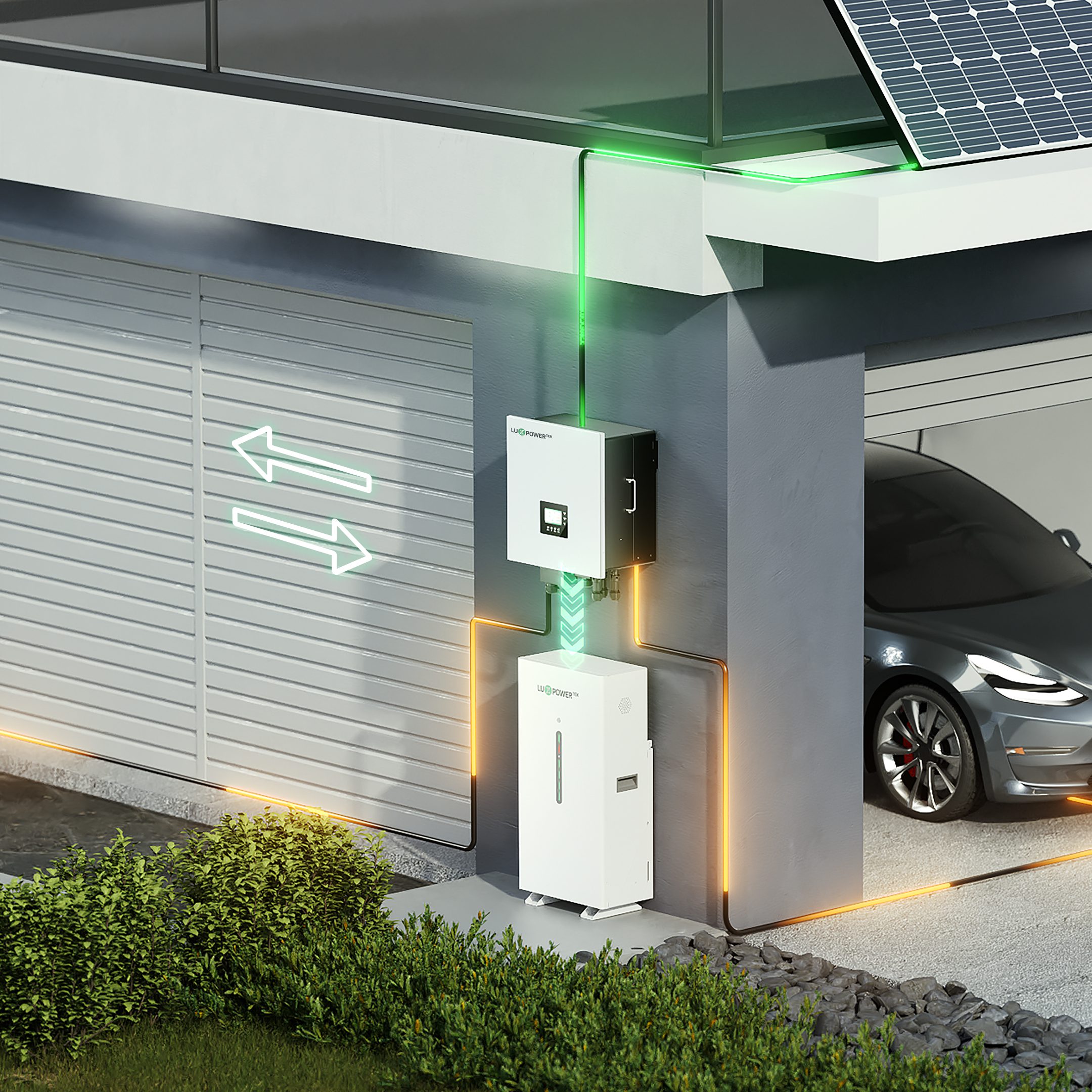

Robust Backup for High Loads

Designed for Power-Hungry Homes and Equipment, With up to 10kW output, this model easily powers air conditioners, water pumps, and deep freezers. Automatic transfer during outages ensures uninterrupted energy.

Maximize Solar Utilization, PV Input up to 15kW with Dual MPPT

Wide MPPT range with two independent trackers allows flexible string configuration and maximized generation from rooftop arrays.

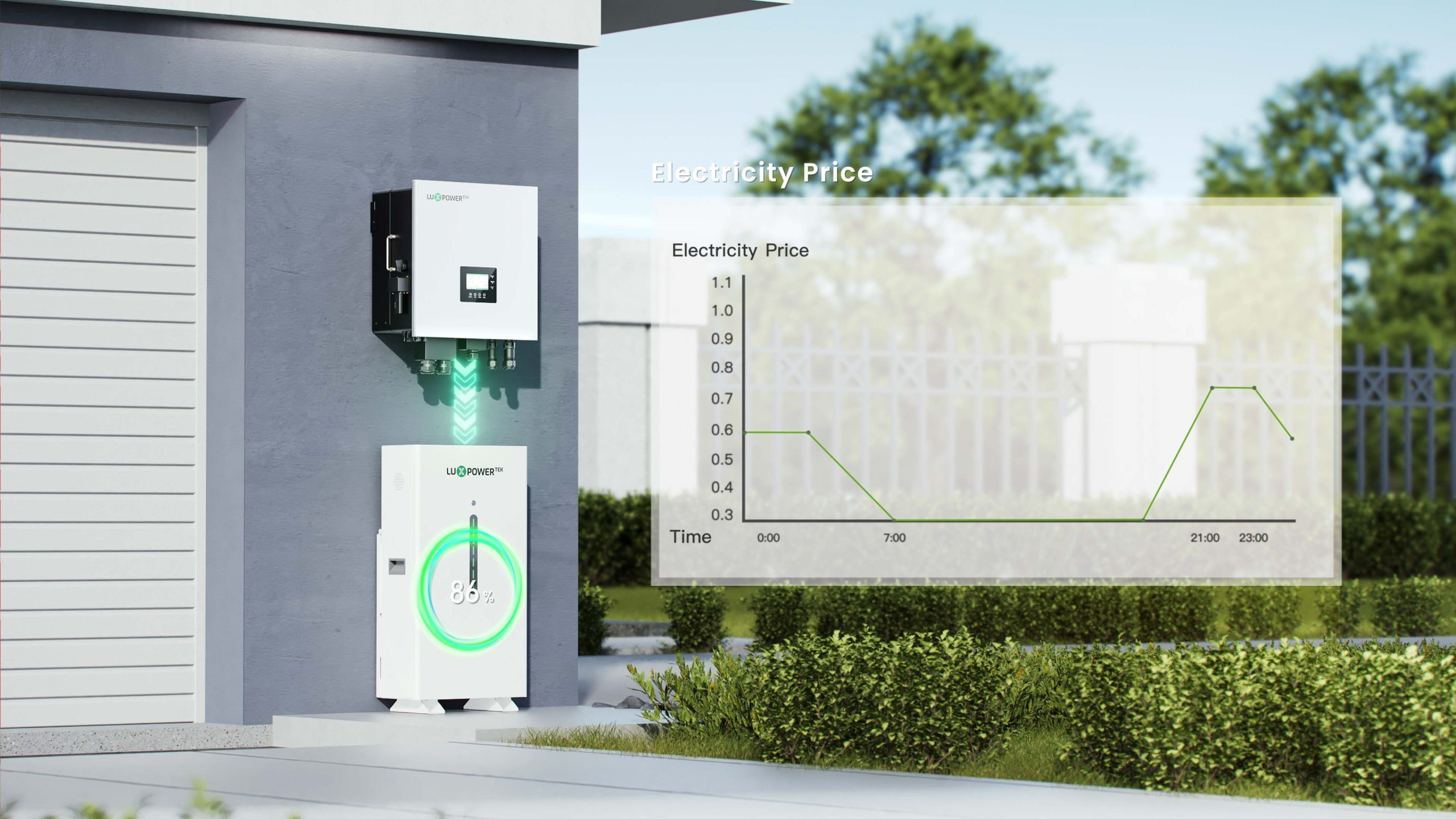

Intelligent Energy Control, Time-of-Use Scheduling + AI Optimization

Set charge/discharge schedules or let the AI auto-optimize energy usage based on tariff, generation, and load—ensuring maximum savings.

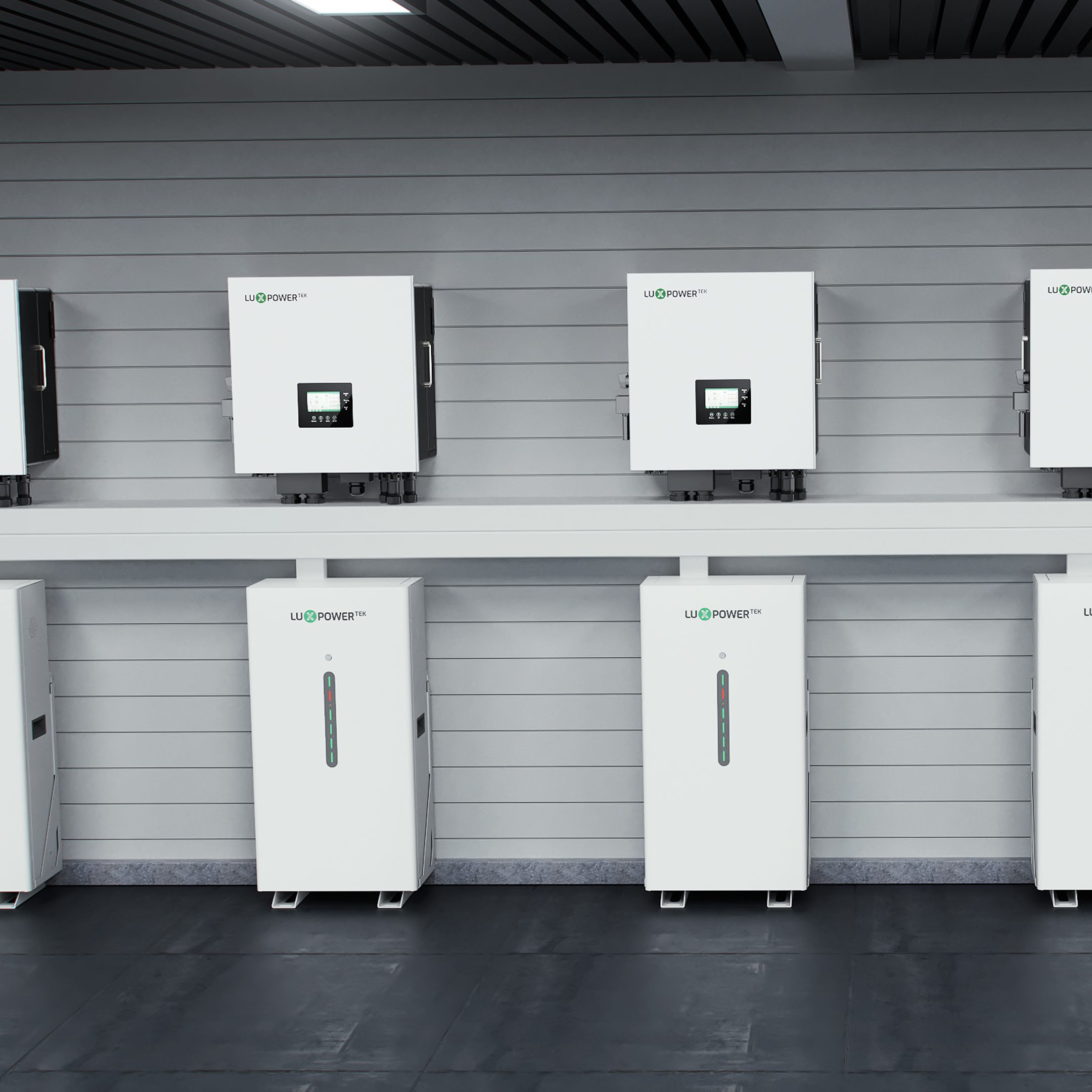

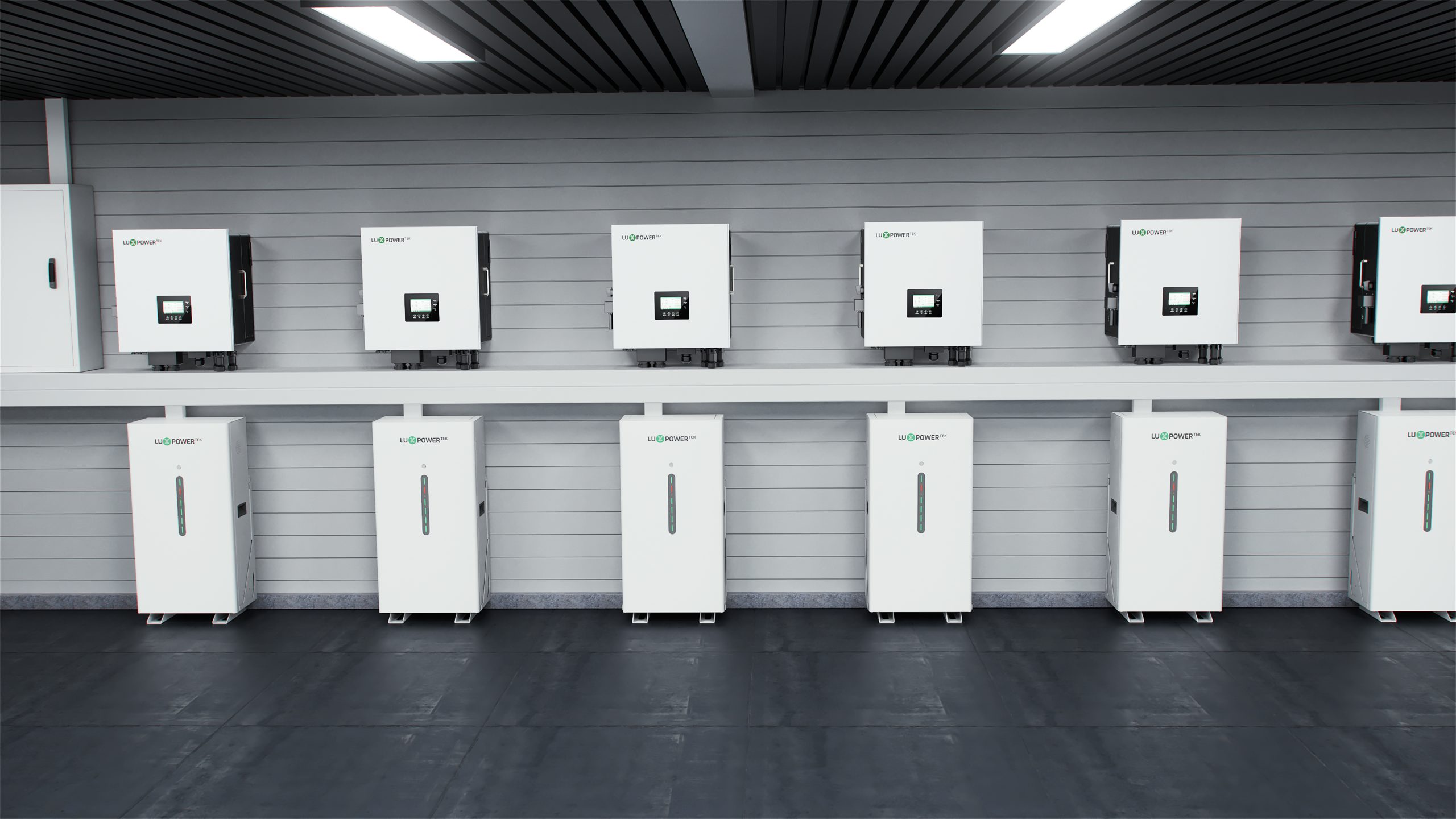

Easy System Expansion, Scalable Backup Solution – Up to 10 Inverters

Whether you’re powering a large home or growing commercial loads, GEN-LB-EU 7–10K supports parallel operation for added flexibility.

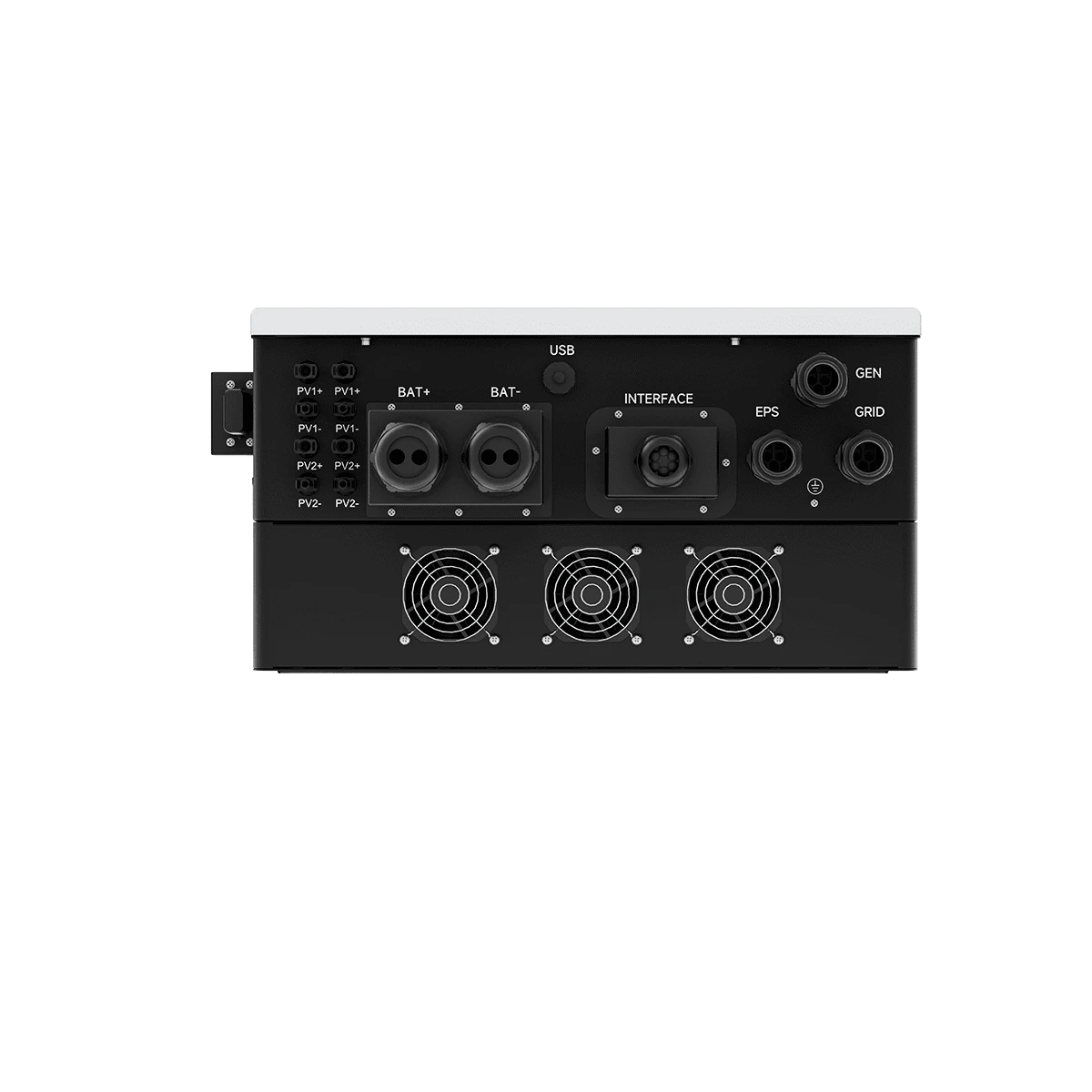

Generator-Ready Integration, Built-in Gen Port – Reliable Power Anytime

Connect a diesel generator for extended autonomy. Automatically charges battery or powers loads when solar isn’t available.

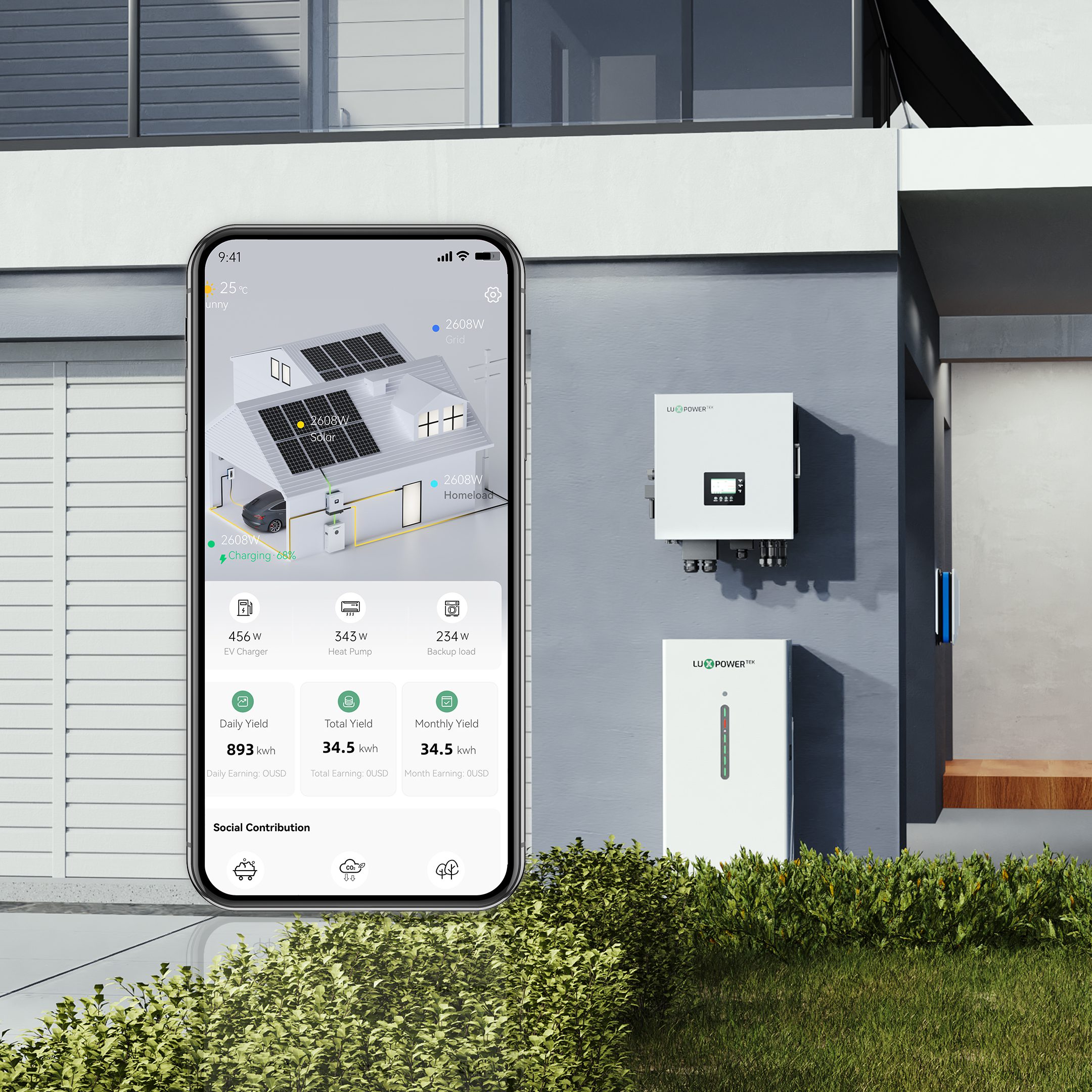

Smart Monitoring at Your Fingertips, View Status, Change Settings, and Get Alerts

With the LuxCloud platform and mobile app, manage your energy wherever you are. Monitor PV, battery, and grid data 24/7.

Output Power

7kW / 8kW / 10kW

Max PV Input

15kW (Dual MPPT)

Working with 48V / 51.2 V Low Voltage Battery

Monitoring

Wi-Fi / Ethernet / LuxCloud

Parallel up to

10 units

Mode Switching
On-grid / Off-grid / Hybrid

IP66 Protection

Warranty 5 years

Built for the Nigerian Environment Dustproof, Waterproof, and Heat-Resistant

IP66-rated design with optimized airflow ensures long-term durability in harsh weather conditions.

Robust Backup for High Loads

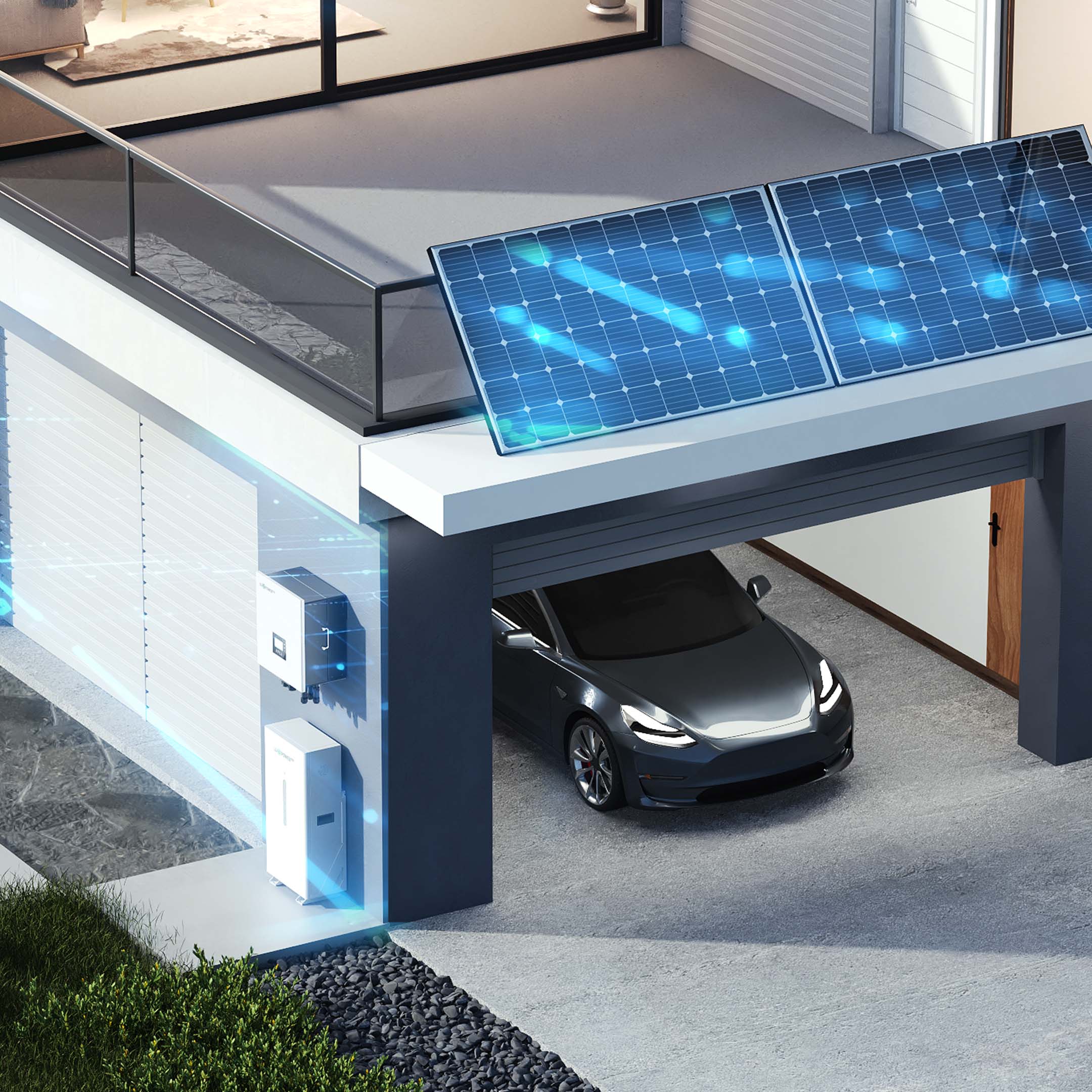

Maximize Solar Utilization, PV Input up to 15kW with Dual MPPT

Wide MPPT range with two independent trackers allows flexible string configuration and maximized generation from rooftop arrays.

Intelligent Energy Control, Time-of-Use Scheduling + AI Optimization

Set charge/discharge schedules or let the AI auto-optimize energy usage based on tariff, generation, and load—ensuring maximum savings.

Easy System Expansion, Scalable Backup Solution – Up to 10 Inverters

Whether you’re powering a large home or growing commercial loads, GEN-LB-EU 7–10K supports parallel operation for added flexibility.

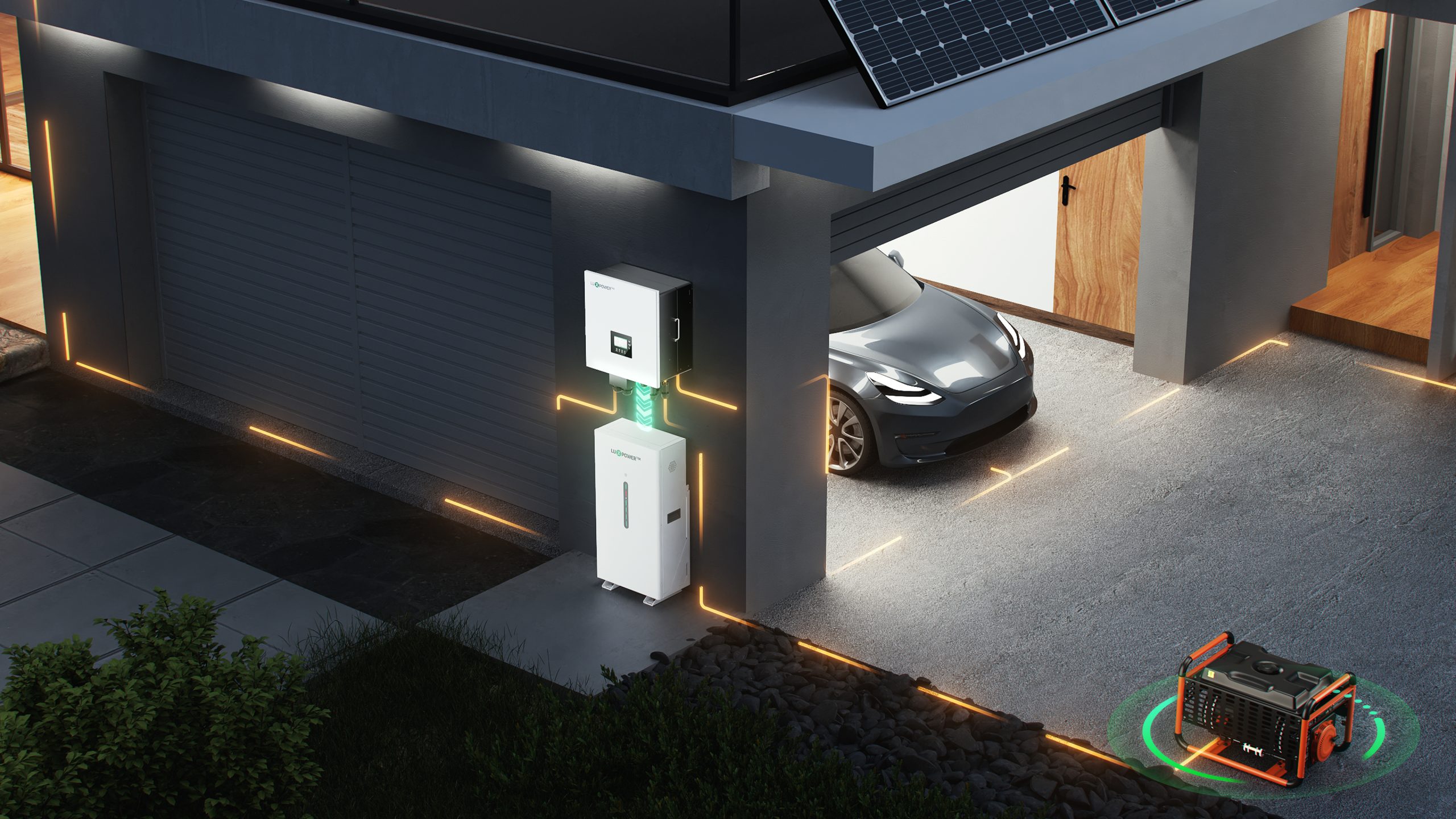

Generator-Ready Integration, Built-in Gen Port – Reliable Power Anytime

Connect a diesel generator for extended autonomy. Automatically charges battery or powers loads when solar isn’t available.

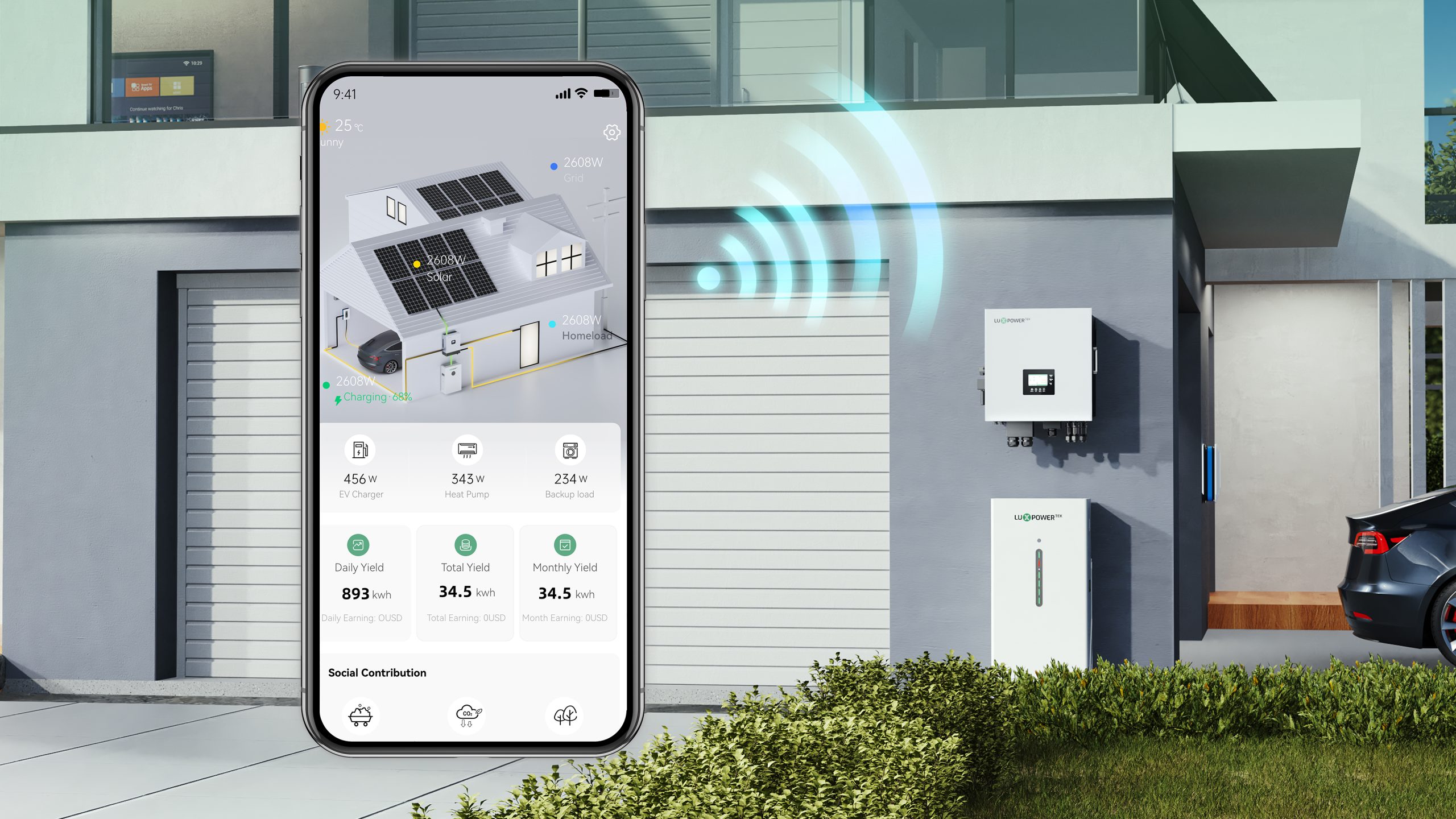

Smart Monitoring at Your Fingertips, View Status, Change Settings, and Get Alerts

With the LuxCloud platform and mobile app, manage your energy wherever you are. Monitor PV, battery, and grid data 24/7.

Specification

Model	GEN-LB-EU 7K	GEN-LB-EU 8K	GEN-LB-EU 10K
Input (PV DC)
Max. PV input power (W)	12000	12000	15000
Rated PV input voltage (V)	360
Number of independent MPPT inputs	2/(2:2)
Max. PV Input Voltage (V)	600
MPPT voltage range (V)	120~550
Start-up voltage (V)	140
Max. PV input current per MPPT (A)	25
Max. PV short-circuit current input per MPPT (А)	34
Battery
Compatible battery type	Lithium-ion/Lead-Acid
Rated battery voltage (V)	48
Battery voltage range (V)	40~60
Max. charging/discharging current (A)	146	167	208
Max. charging/discharging power (W)	7000	8000	10000
Force wake up battery from PV function	YES
Grid
Rated AC voltage (V)	230
Rated AC frequency (Hz)	50/60
Rated AC output current (A)	30.4	34.8	43.8
Rated AC output power (W)	7000	8000	10000
Max. AC intput power (W)	15000
PF	0.99(Adjustable from 0.8 leading to 0.8 lagging)
THDI	<3%
Max. continuous AC passthrough current (A)	60
GEN
Rated GEN voltage (V)	230
Rated GEN frequency (Hz)	50/60
Rated GEN input current (A)	60
Rated GEN input power (W)	13800
UPS
Rated output power (W)	7000	8000	10000
Rated output voltage (V)	230
Rated output current (A)	30.4	34.8	43.8
Rated output frequency (Hz)	50/60
Surge power, duration	2Pn, 0.5s
Switching time (UPS)	20ms
Wave form	Sine wave
THDV	<3%
Efficiency
MPPT efficiency	99.9%
EU efficiency	94.3%
Max. efficiency	97.5%
Max. charge / discharge efficiency	94.0%
Protection
PV reverse polarity protection	YES
Over current/voltage protection	YES
Anti-islanding protection	YES
AC Short-circuit current protection	YES
Leakage current protection	YES
Ground fault monitoring	YES
Grid monitoring	YES
DC switch	YES
AC/DC surge protection	Type III
General
Dimensions (WHD)	536566290mm / 21.122.311.4 in
Weight	42.64kg / 94lbs
Ingress protection rating	IP66
Relative humidity	0~100%
Operating environment temperature range (°C)	-25~60
Storage temperature range (°C)	-25~60
Display & Communication interface	Touch color screen, RS485/Wifi/CAN
Warranty	5/10 years
Cooling method	Smart cooling
Topology	Transformer-less
Altitude	<2000m
Noise emission (typical)	<50dB
Standards & Certification	G99, G100, NRS 097, EN/IEC 62109-1/2, IEC 61683, EN 61000, EN 62920, IE C62116, IEC 61727

Reviews

There are no reviews yet.

Be the first to review “GEN-LB-EU 7-10K Hybrid Inverter More Power. More Control. Built for Resilience.” Cancel reply

Model selection

Planning with the GEN-LB-EU 7-10kW Single-Phase Hybrid Inverter

Best fit

Higher-demand single-phase sites that need coordinated solar, battery, grid and backup operation.

Check before installation

Review simultaneous load, PV-array design, battery current, generator conditions and whether the site can remain single phase.

FAQ

When is the GEN-LB-EU 7-10kW range better than a smaller hybrid inverter?

Use this range when a single-phase home or light commercial site has higher simultaneous loads and needs more headroom for solar, battery and backup operation.

What matters most before choosing a 10kW single-phase hybrid inverter?

Check peak load, startup current, PV string design, battery current, generator behaviour and whether the building supply should remain single phase.

Can existing panels or batteries be reused with GEN-LB-EU 7-10kW?

Only after a qualified installer checks voltage windows, current limits, BMS communication, firmware and protection. Similar-looking batteries or panels are not automatically compatible.

Where can I get GEN-LB-EU 7-10kW documents and support?

Use the download centre for the current datasheet or manual, check the warranty page, and send model, serial number, site photos or PDF files through the Nigeria contact form when you need technical support.

Local project support

Confirm compatibility before you buy

Share your loads, supply type, target backup time and installation location. Our team can help narrow the inverter and battery options before a final site assessment.

Get a project quote View product documents
