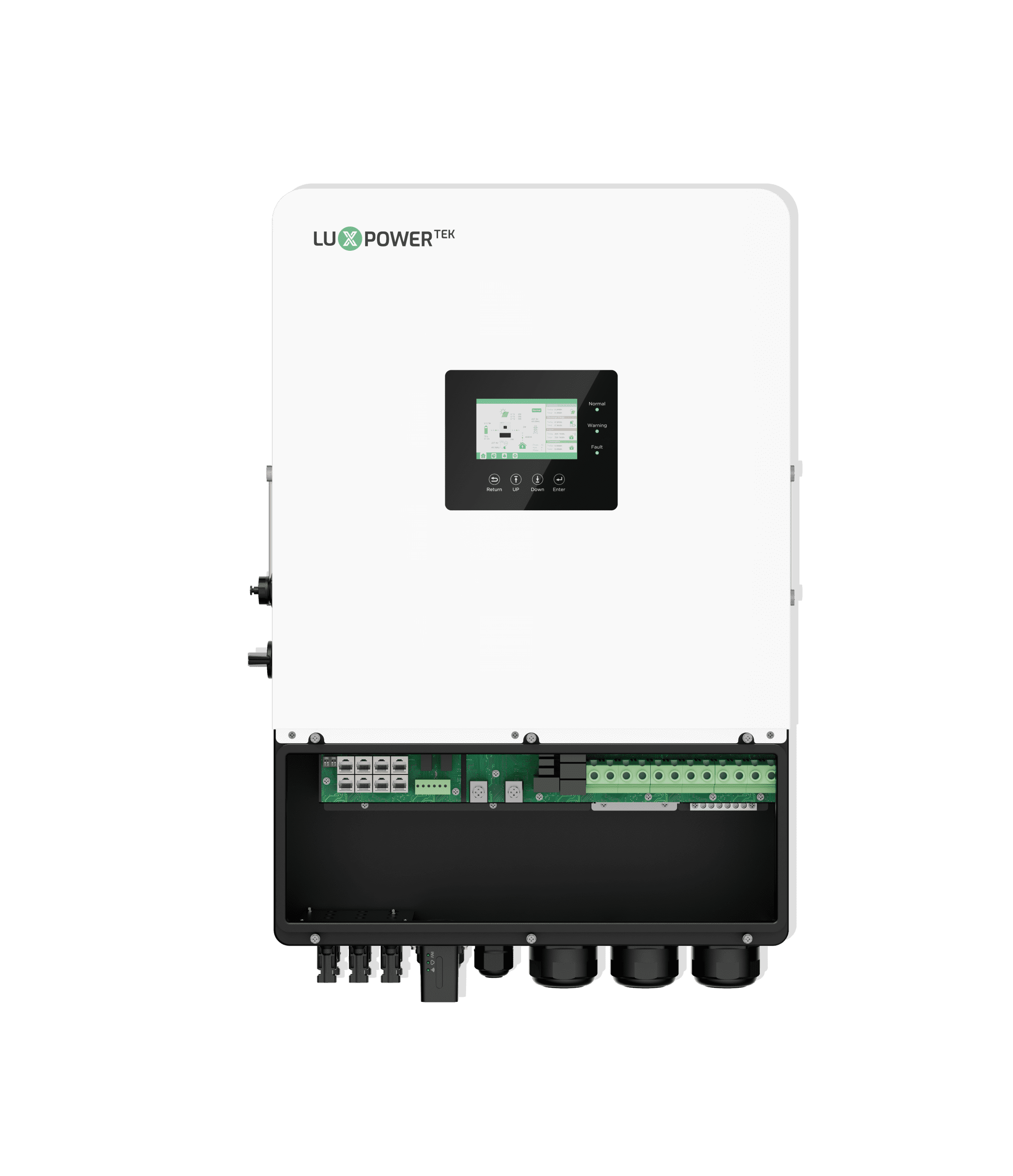

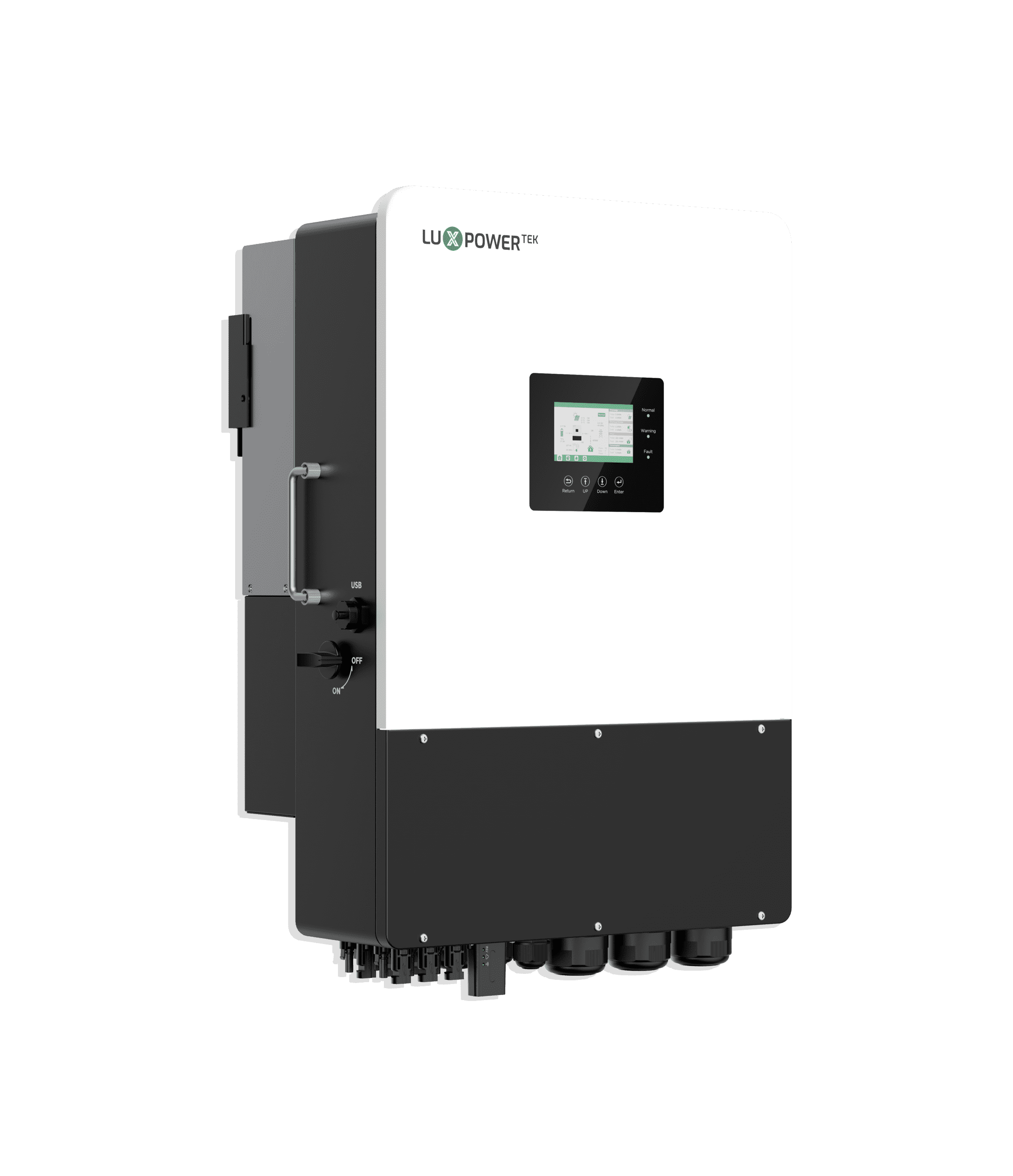

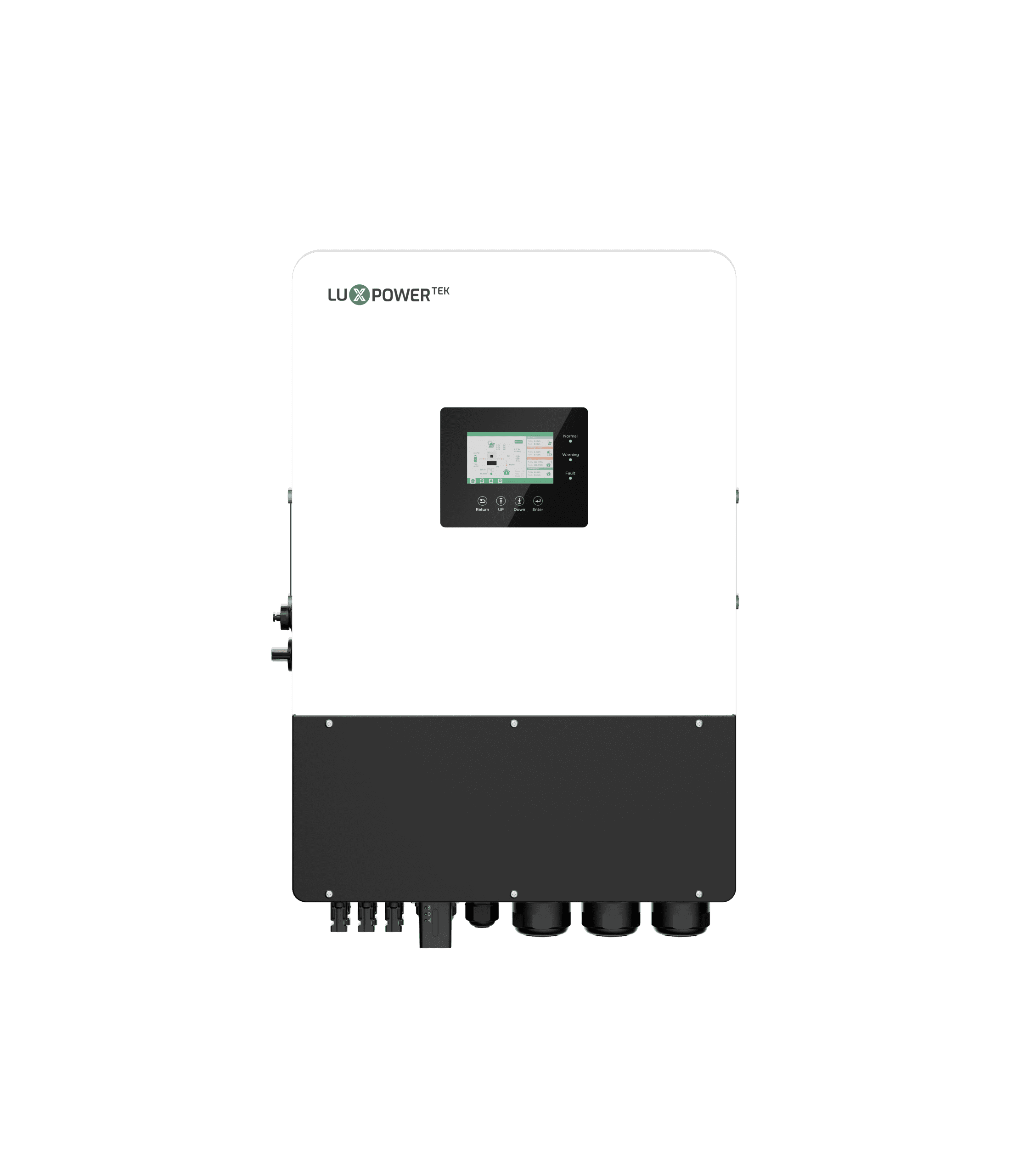

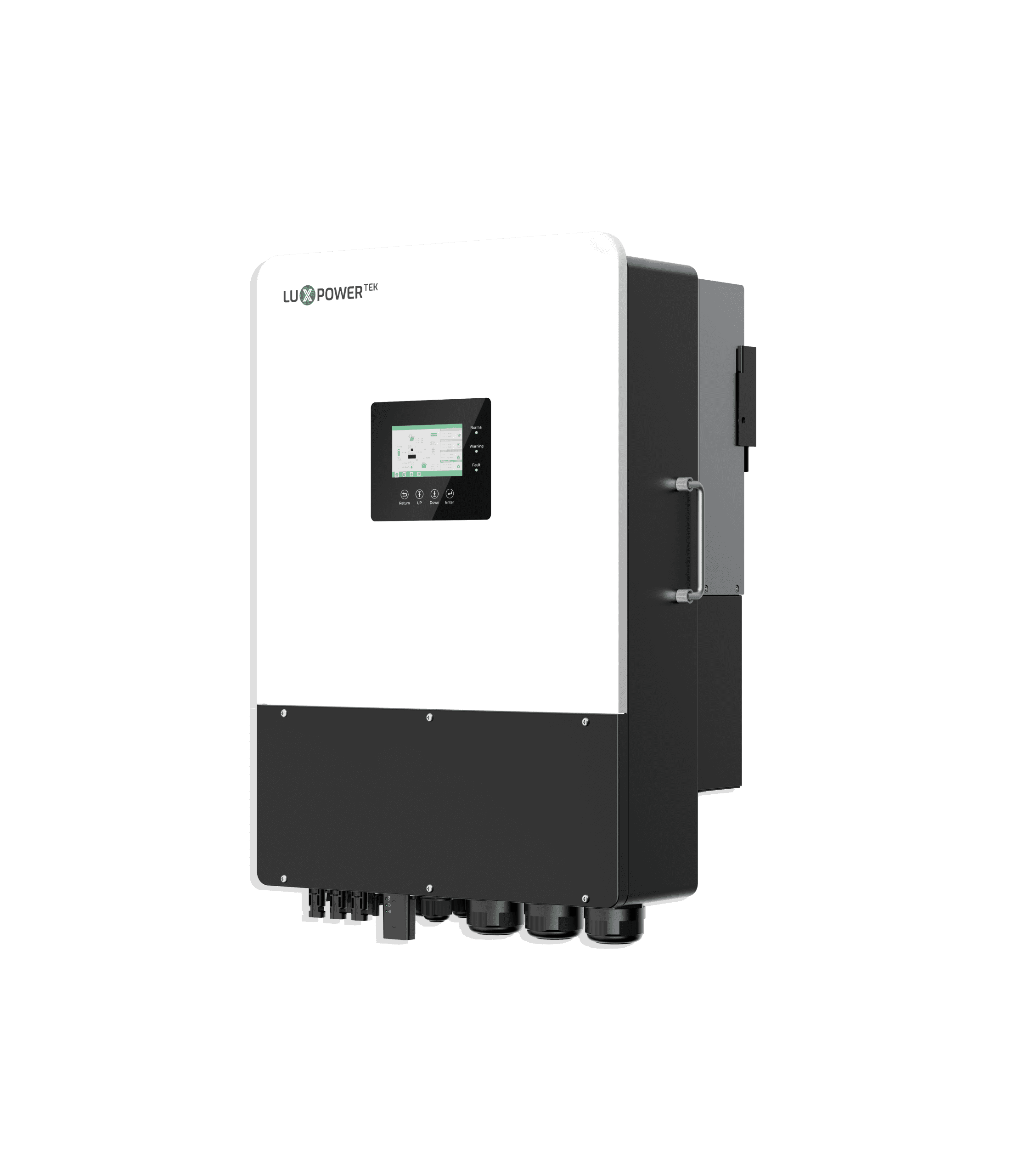

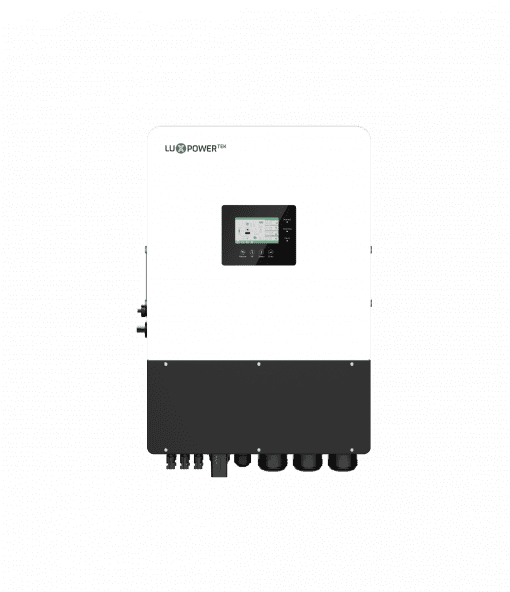

TriP2-HB-3P 6-30kW 3-Phase High Voltage Hybrid Inverter High Voltage. High Capacity. High Reliability.
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image

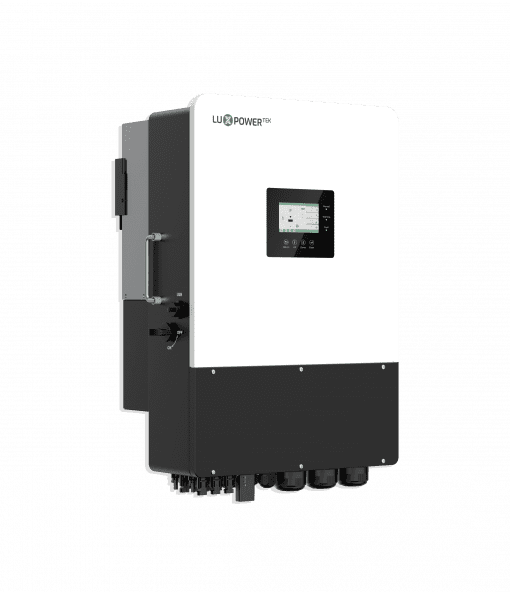

TriP2-HB-3P 6-30kW 3-Phase High Voltage Hybrid Inverter High Voltage. High Capacity. High Reliability.

Three-phase hybrid inverter, 6-30kW output

Supports high-voltage batteries (160-800V)

Up to 39kW PV input with 2 MPPTs

Designed for large residential, estate, and commercial systems.

Seamless on/off-grid operation + generator input.

Supports remote monitoring and smart control via LuxCloud.

Indoor/outdoor installation with IP65 rating.

5-year warranty

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

Output Power

6kW / 10kW / 15kW / 20kW / 25kW / 30kW

Parallel Support
Up to 10 units

Protection Class IP65

Self-consumption / TOU / Priority charge-discharge

Battery Type

High-voltage lithium (160–800V)

Max PV Input

45kW (3 MPPTs with 6 strings)

Supported Sources

PV, Grid, Battery, Generator
Applications

Villas, Factories, Clinics, Commercial Loads

Warranty 5 years
Switching Speed<10ms

Monitoring

Wi-Fi / Ethernet / LuxCloud

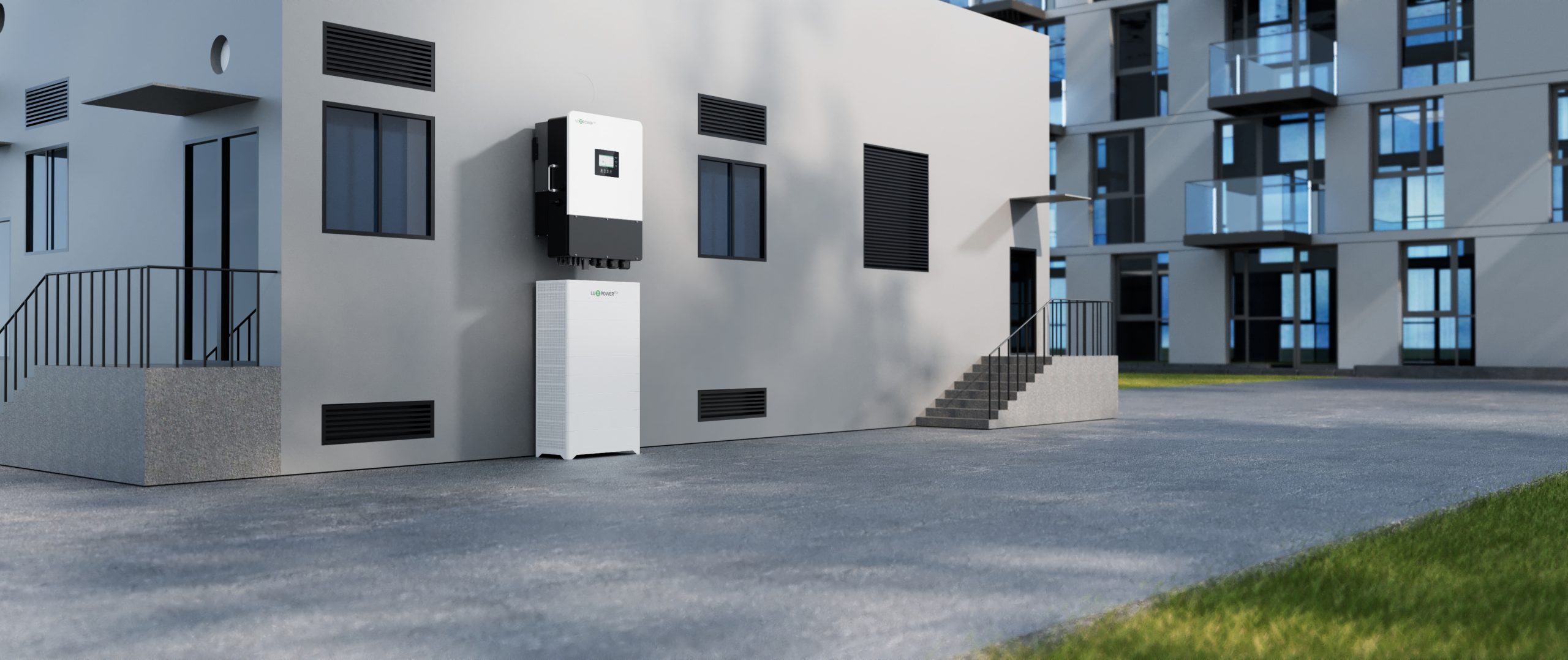

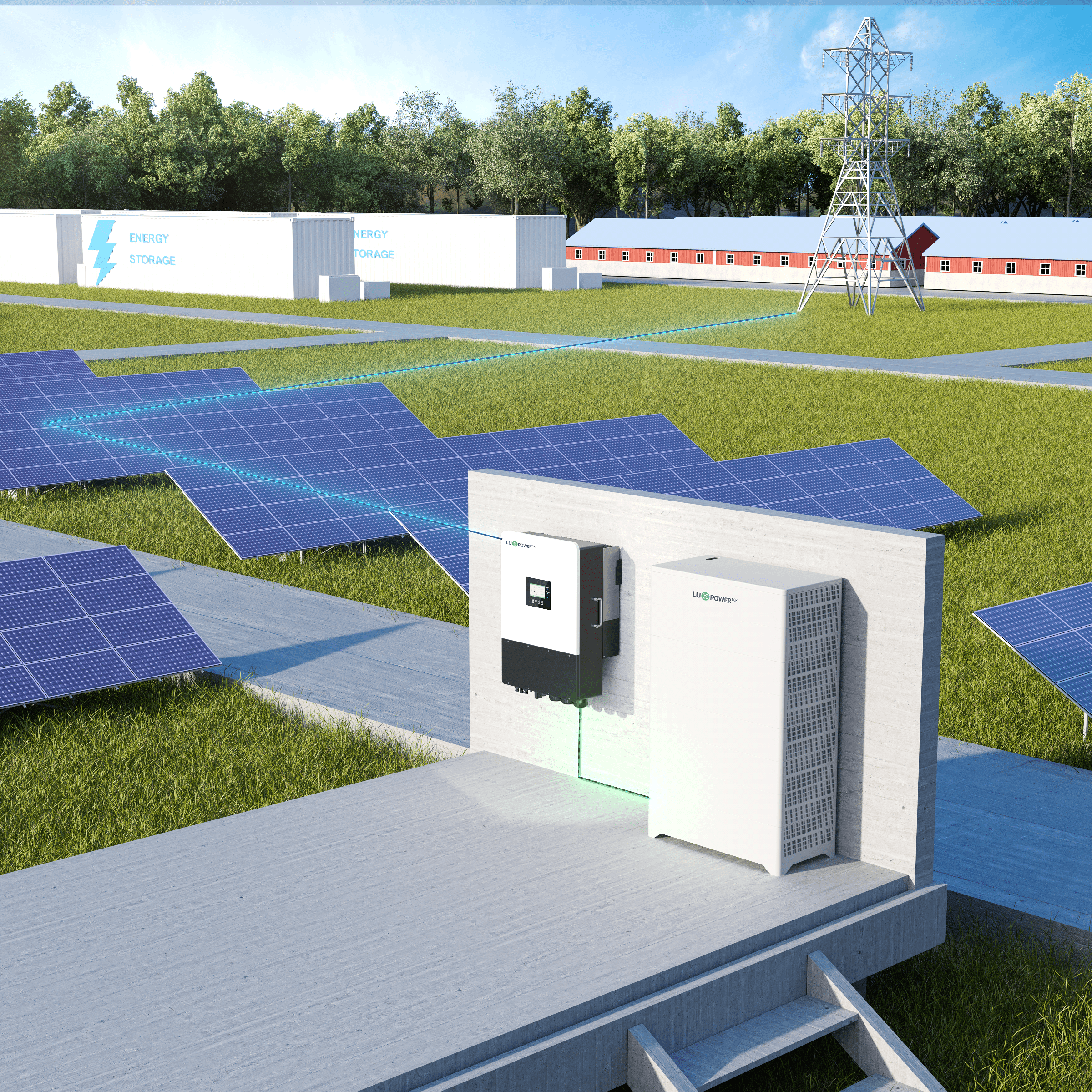

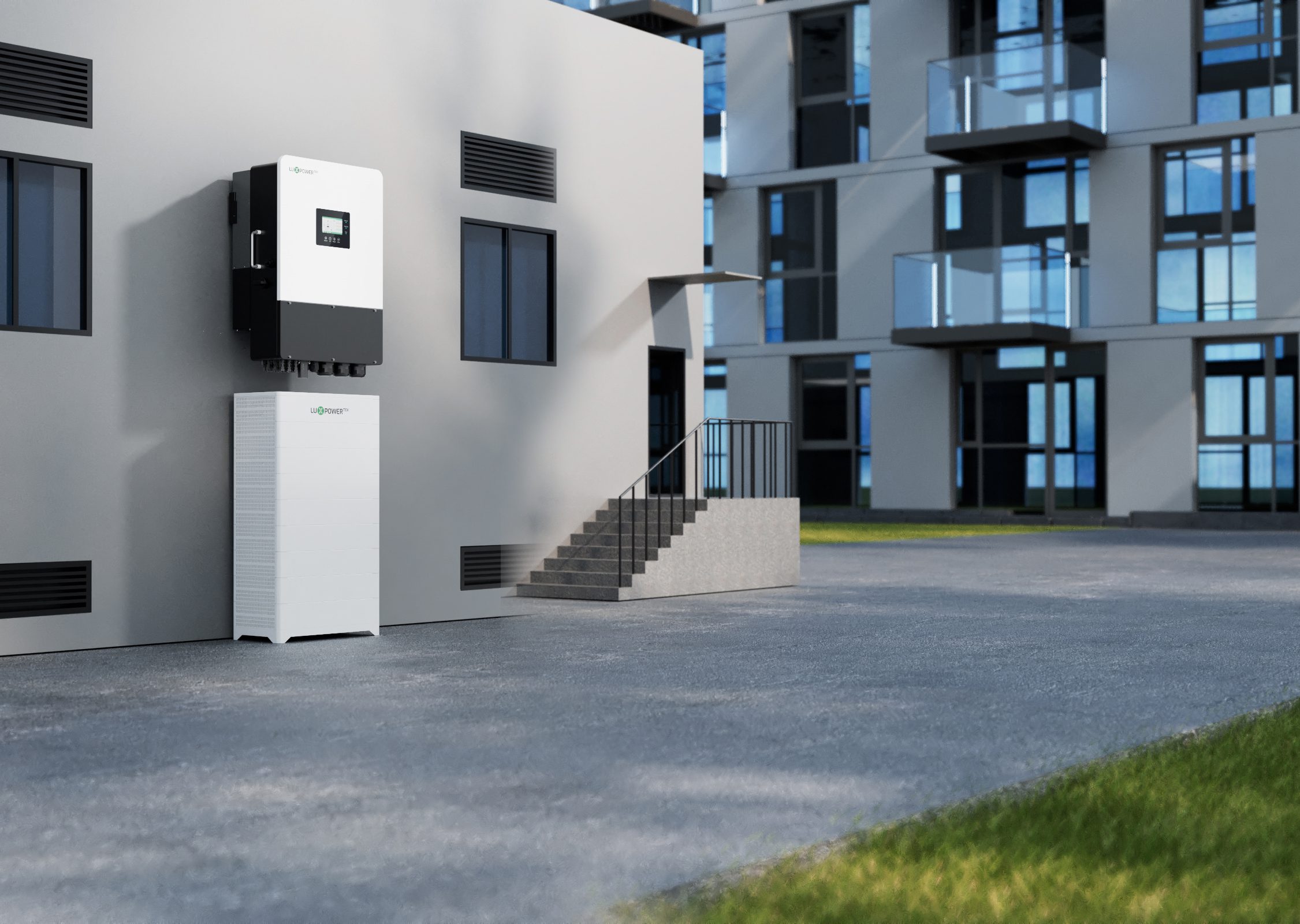

Commercial-Grade Performance, Power Demanding Equipment with Ease

Capable of supporting offices, clinics, cold storage, and large estates. Delivers stable three-phase output for critical equipment.

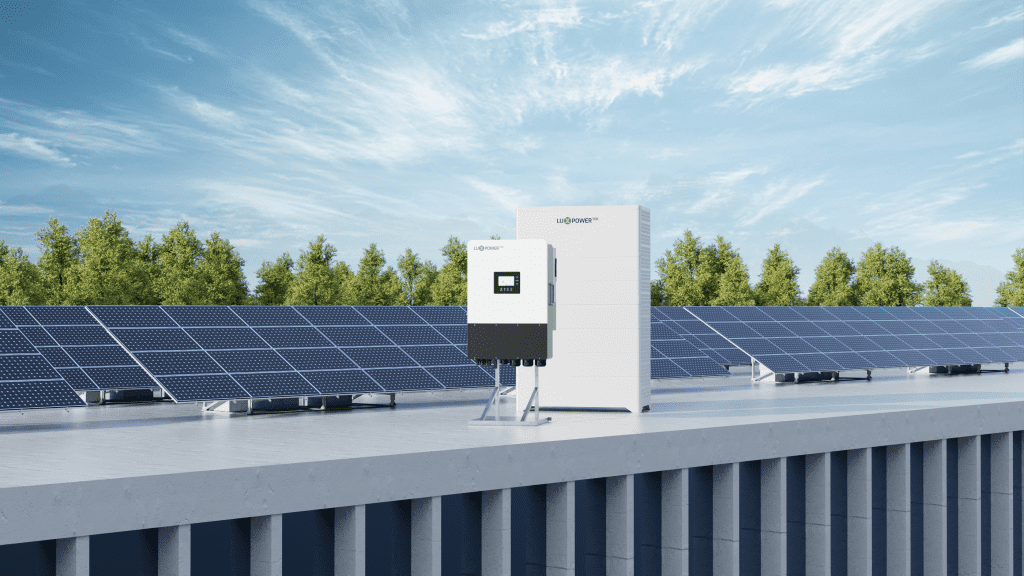

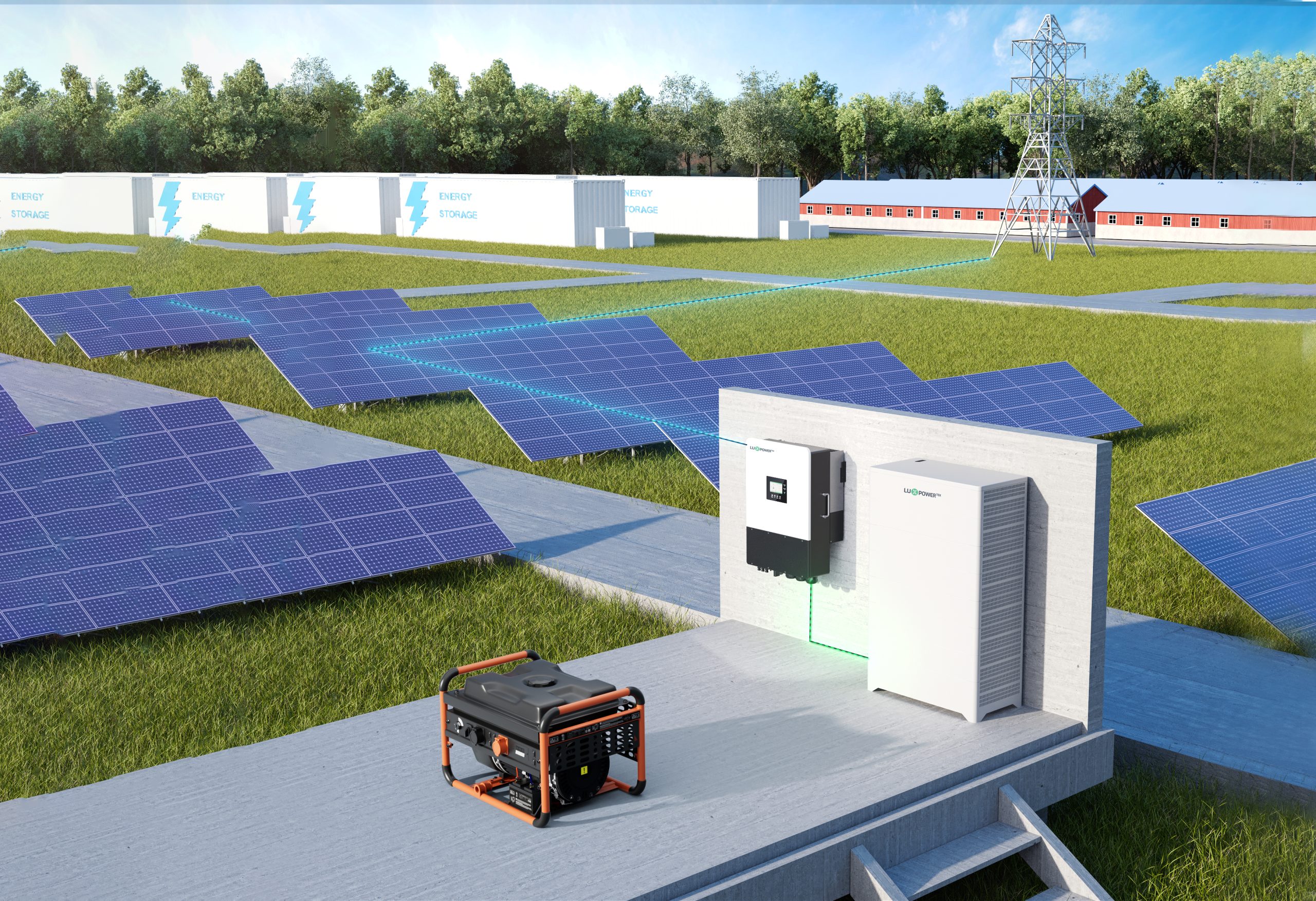

Extreme Solar Compatibility, Up to 39kW PV Input with Dual MPPT

Allows connection to large PV arrays, optimizing solar energy production even under partial shading or multi-roof configurations.

High Voltage Battery Advantage, More Efficiency. Less Loss.

Supports high-voltage lithium battery systems (160–800V), reducing energy conversion loss and improving system reliability.

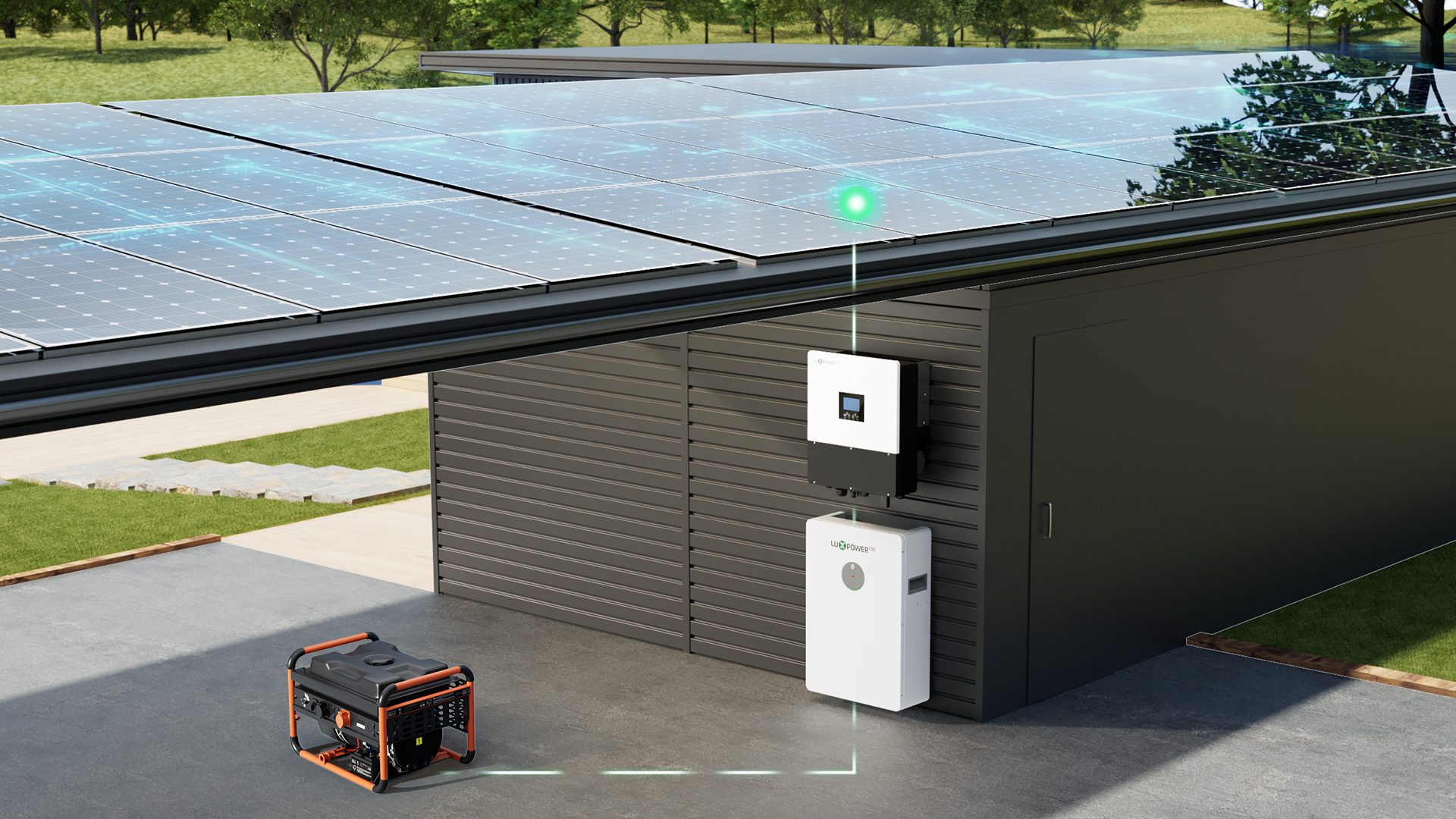

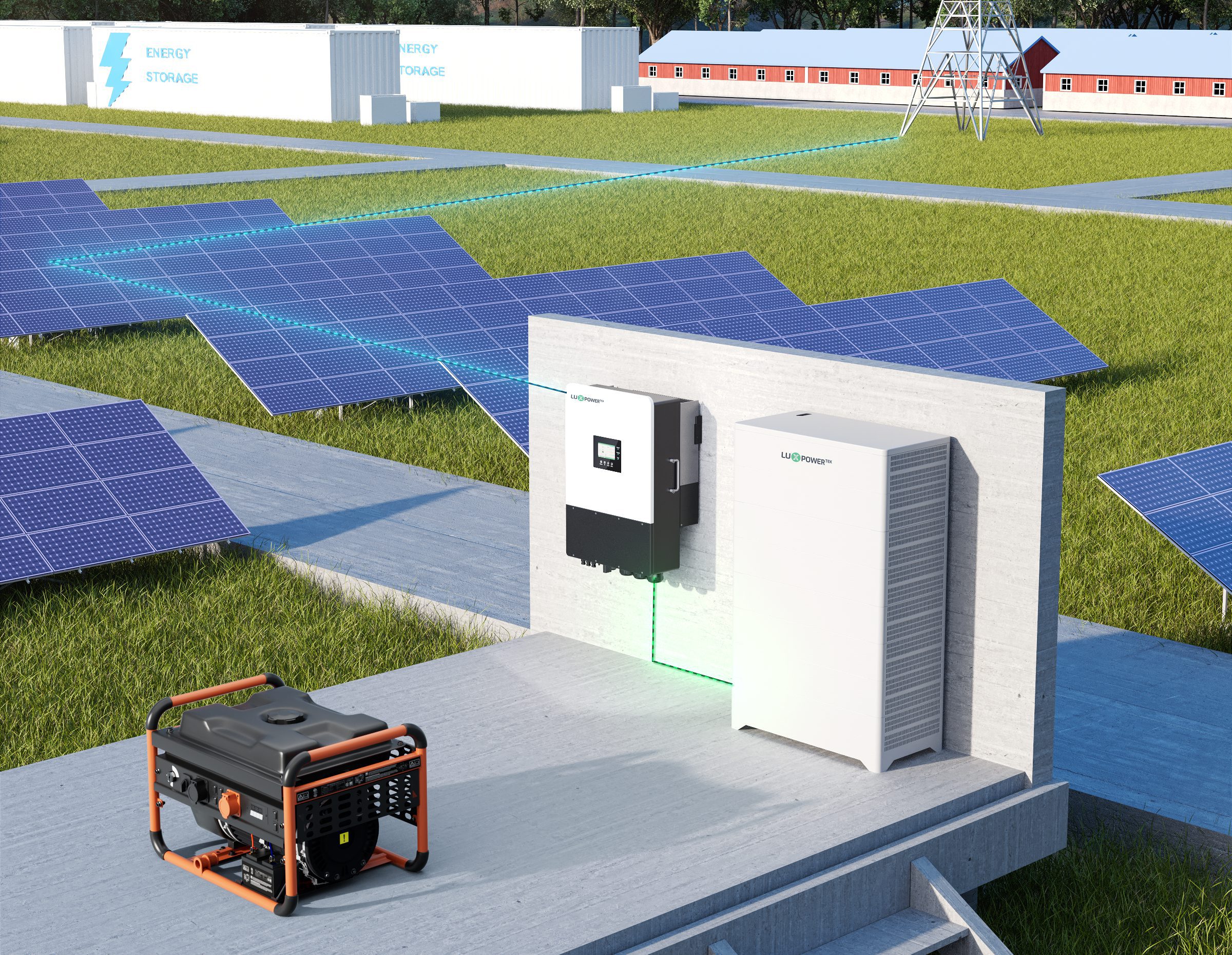

Smart Source Management, PV + Grid + Battery + Generator

Flexible input design enables stable operation even in weak-grid or off-grid regions. Generator charging and fast switching supported.

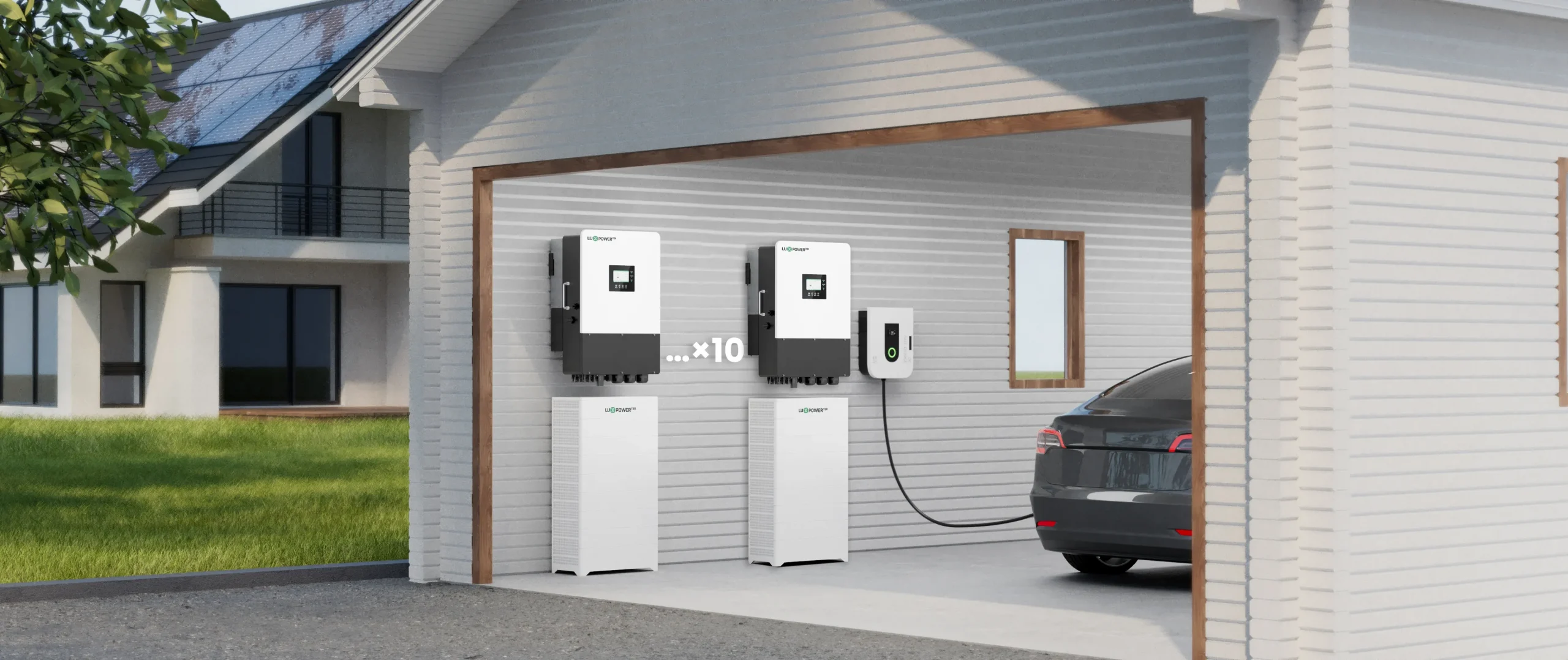

Parallel Ready, Business Ready, Up to 10 Units in Parallel

Build from 6kW to 300kW for commercial projects or large residential estates. Modular design ensures easier system upgrades.

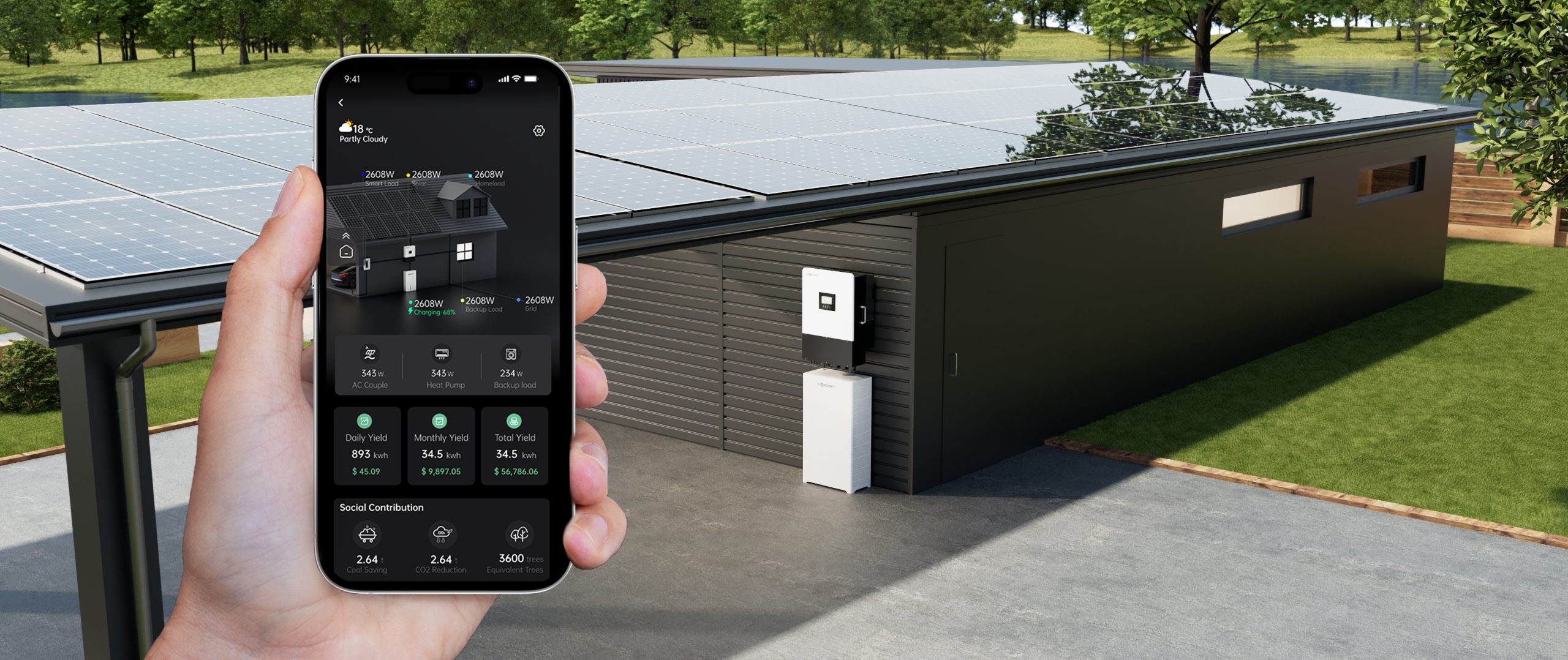

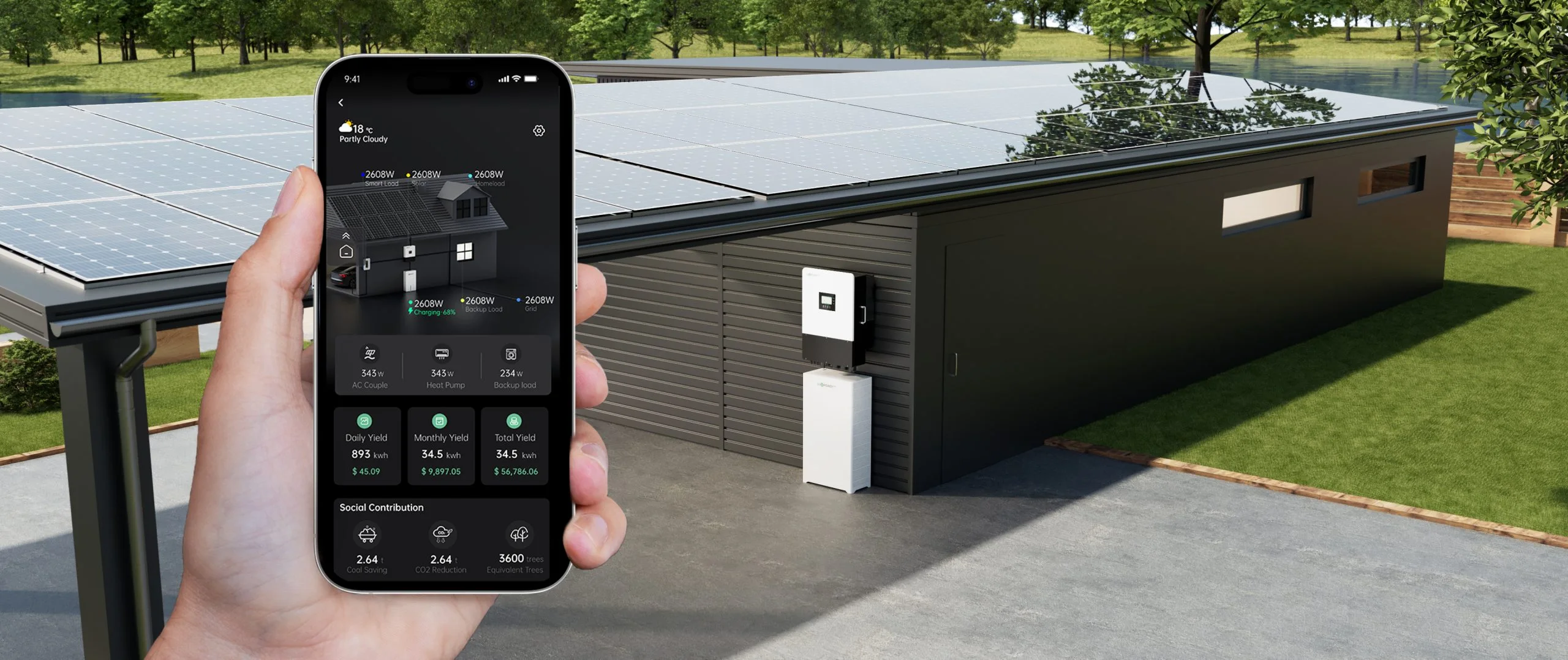

Remote Monitoring + Firmware Updates, Powered by LuxCloud

Monitor system status, change parameters, and receive fault alerts from your PC or mobile device—ideal for installers and owners.

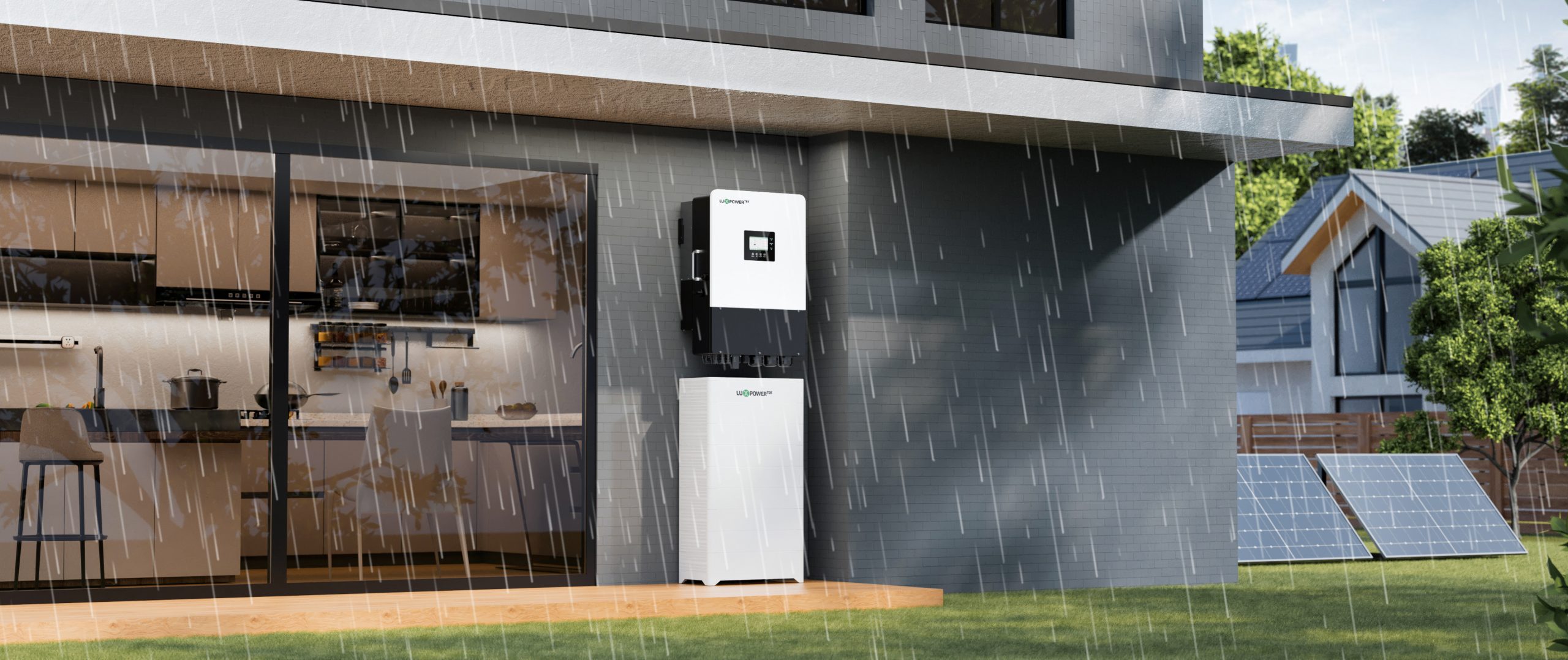

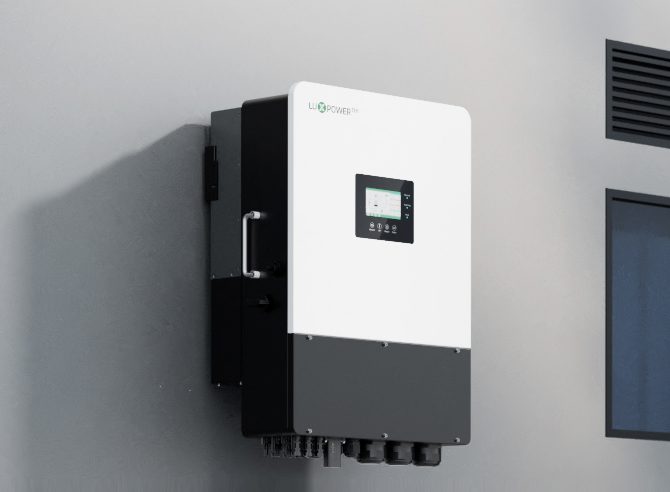

Built for Nigerian Weather, IP65 Protection + Thermal-Optimized Design

Engineered for long-term durability in hot, dusty, and humid conditions, both indoors and outdoors.

Reviews

There are no reviews yet.

Be the first to review “TriP2-HB-3P 6-30kW 3-Phase High Voltage Hybrid Inverter High Voltage. High Capacity. High Reliability.”

Specification

  Model TriP2-LB-3P 5K TriP2-LB-3P 6K TriP2-LB-3P 8K TriP2-LB-3P 10K TriP2-LB-3P 12K TriP2-LB-3P 15K TriP2-LB-3P 20K
Input (PV DC) Max. PV input power (W) 7500 9000 12000 15000 18000 22500 30000
Rated PV input voltage (V) 690
Number of independent MPPT inputs 3/(1:1:1)
Max. PV input voltage (V) 1000
MPPT voltage range (V) 200~900
Start-up voltage (V) 100
Max. PV input current per MPPT (A) 30 30 50 50 50 70 70
Max. PV short-circuit current input per MPPT 30 30 50 50 50 70 70
Battery Compatible battery type Lithium-ion/Lead-Acid
Battery voltage range (V) 40-60
Max. charging/discharging current (A) 125 150 200 250 250 250 250
Max. charging/discharging power (W) 6000 7500 10000 12000 12000 12000 12000
Charging Strategy for Li-ion Battery Self-adaption to BMS
Input AC (Grid) Input voltage(3Φ) 3L/N/PE, 230/400Vac
Rated AC frequency (Hz) 50/60
Max. AC intput power (W)
Max. input current
Output AC (Grid) Rated AC voltage (V) 3L/N/PE, 230/400Vac
Rated AC frequency (Hz) 50/60
Rated AC output power (W) 5000 6000 8000 10000 12000 15000 20000
Rated AC output current (A) 7.20 8.70 11.60 14.50 17.40 21.70 29.00
PF 0.99(Adjustable from 0.8 leading to 0.8 lagging)
THDI < 3%
Max. continuous AC passthrough current (A) 50 50 50 50 50 50 50
GEN Rated GEN voltage (V) 3L/N/PE, 230/400Vac
Rated GEN frequency (Hz) 50/60
Rated GEN input current (A) 18.1 18.1 21.8 21.8 27.1 27.1 36.25
Rated GEN input power (W) 12500 12500 15000 15000 18750 18750 25000
UPS Rated output power (W) 5000 6000 8000 10000 12000 15000 20000
Rated output voltage (V) 3L/N/PE, 230/400Vac
Rated output current (A) 20/20/20 20/20/20 25/25/25 25/25/25 25/25/25 25/25/25 25/25/25
Rated output frequency (Hz) 50/60
Surge power, duration 1.5Pn, 5min
Switching time ≤10ms
Efficiency Max. efficiency 97.70%
Max. charge/discharge efficiency 94.0%
Protection PV reverse polarity protection YES
Over current/voltage protection YES
Anti-islanding protection YES
AC Short-circuit protection YES
Leakage current protecion YES
Grid monitoring YES
DC switch YES
Ingress protection YES
DC Surge protection YES
AC Surge protection YES
General Dimensions(W*H*D) 480*703*258mm / 18.9*27.7*10.2 in
Weight 53kg / 116.8lbs
Ingress protection rating IP66
Operating environment temperature range(°C) -25~+60, >45°C derating
Storage temperature range(°C) -25~+60
Relative humidity 0~100
Display & Communication interface Touch color screen, RS485/Wifi/CAN
Warranty 5/10 years
Cooling method Smart cooling
Topology Transformer-less
Standards & Certification Altitude(m) <2000
Noise emission(typical) <50dB
