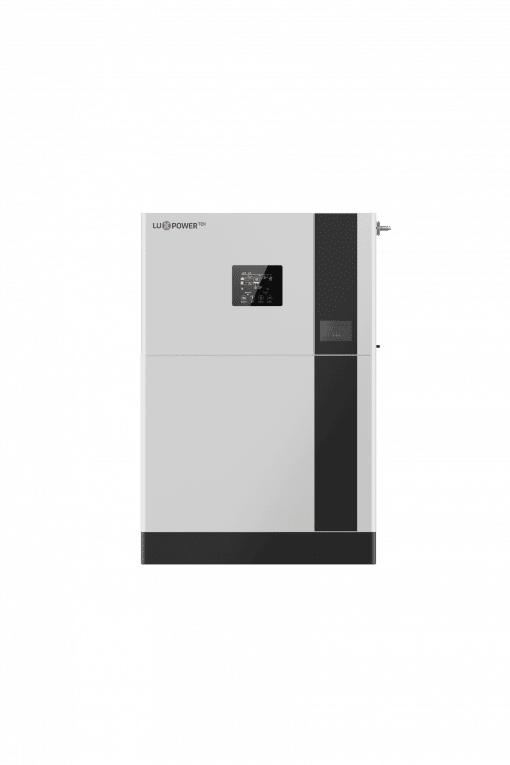

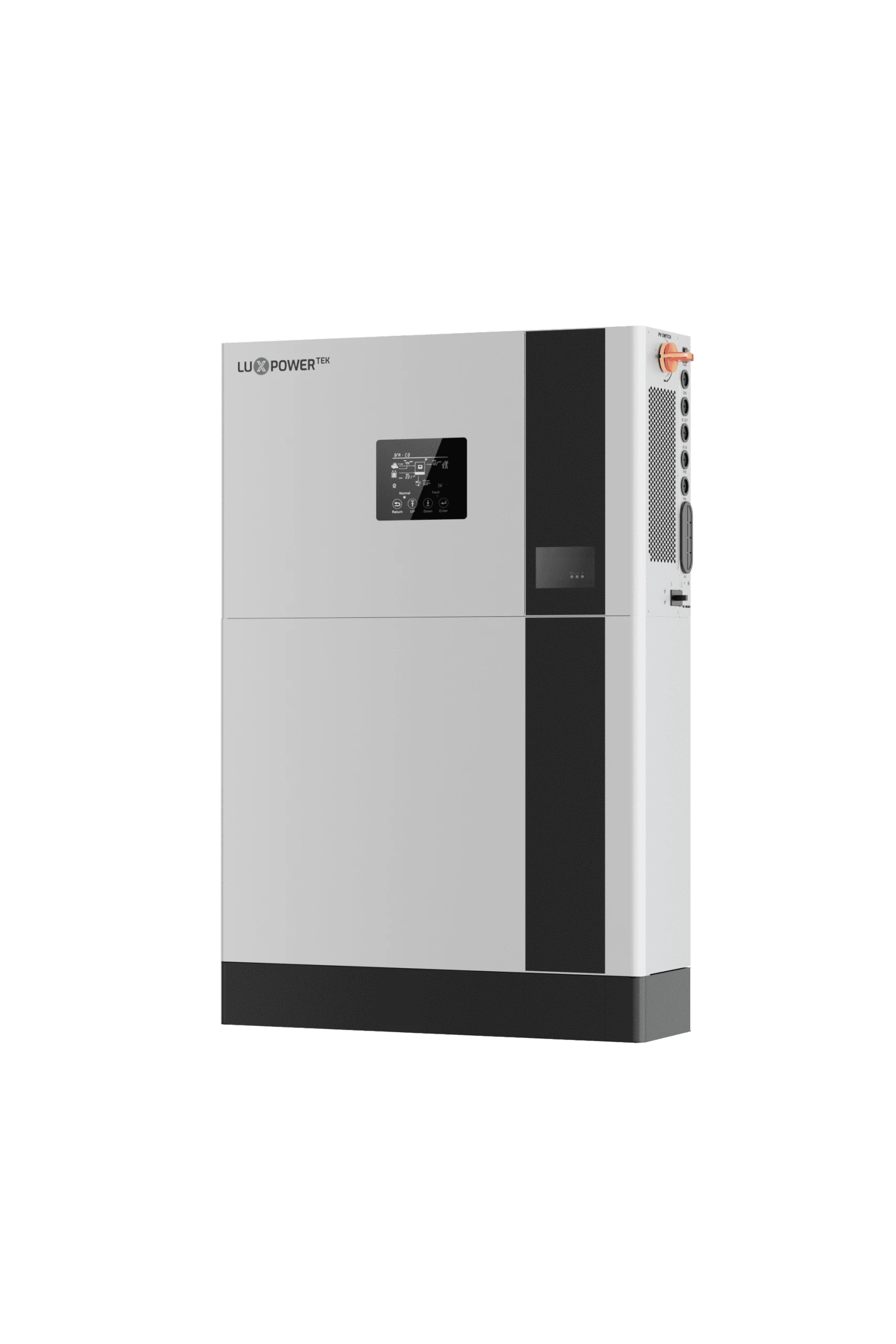

Eco Beast All-in-One Energy Storage System Reliable Power
Eco Beast All-in-One Energy Storage System Reliable Power - Image 2
Eco Beast All-in-One Energy Storage System Reliable Power - Image 3
Eco Beast All-in-One Energy Storage System Reliable Power - Image 4
Eco Beast All-in-One Energy Storage System Reliable Power - Image 5

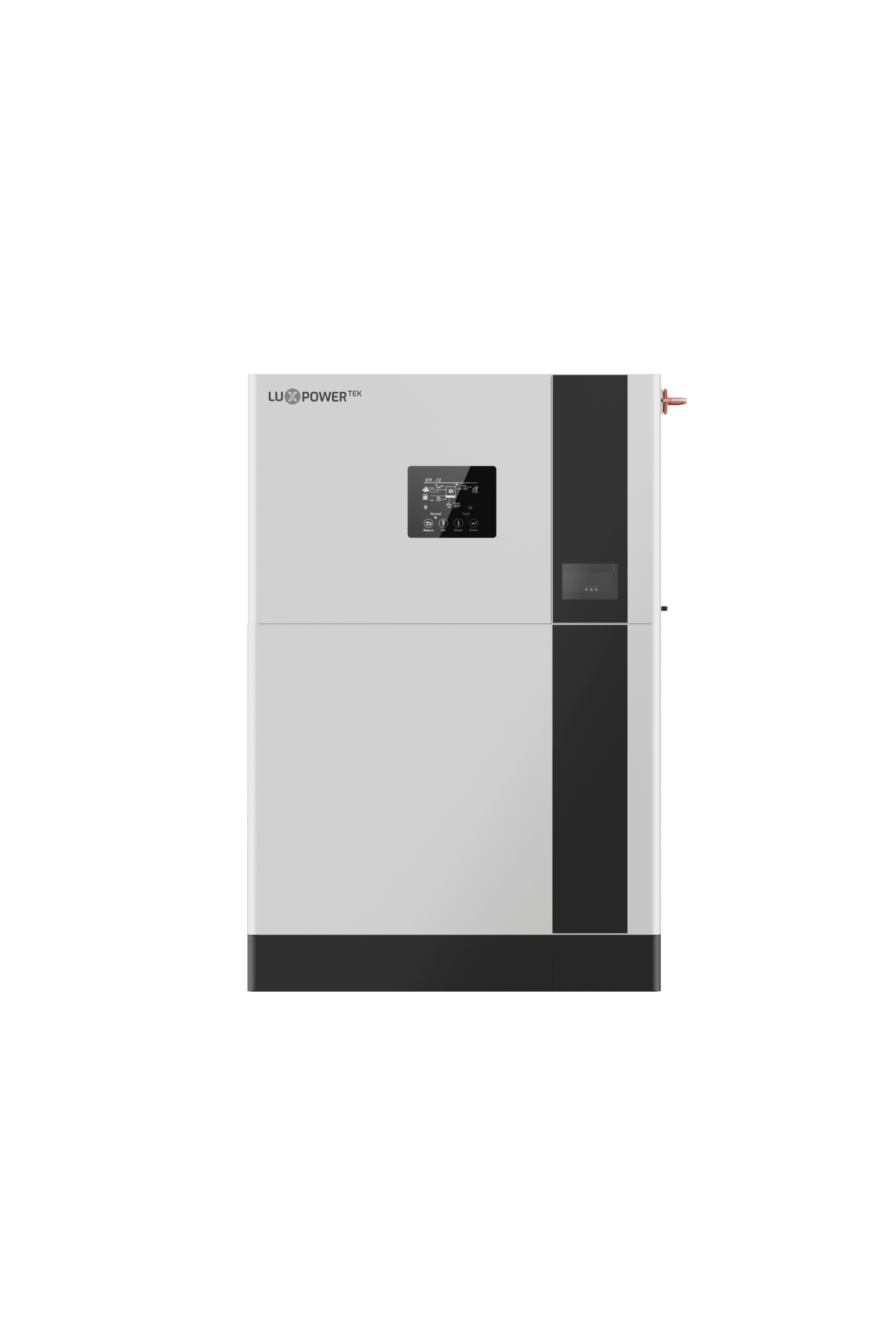

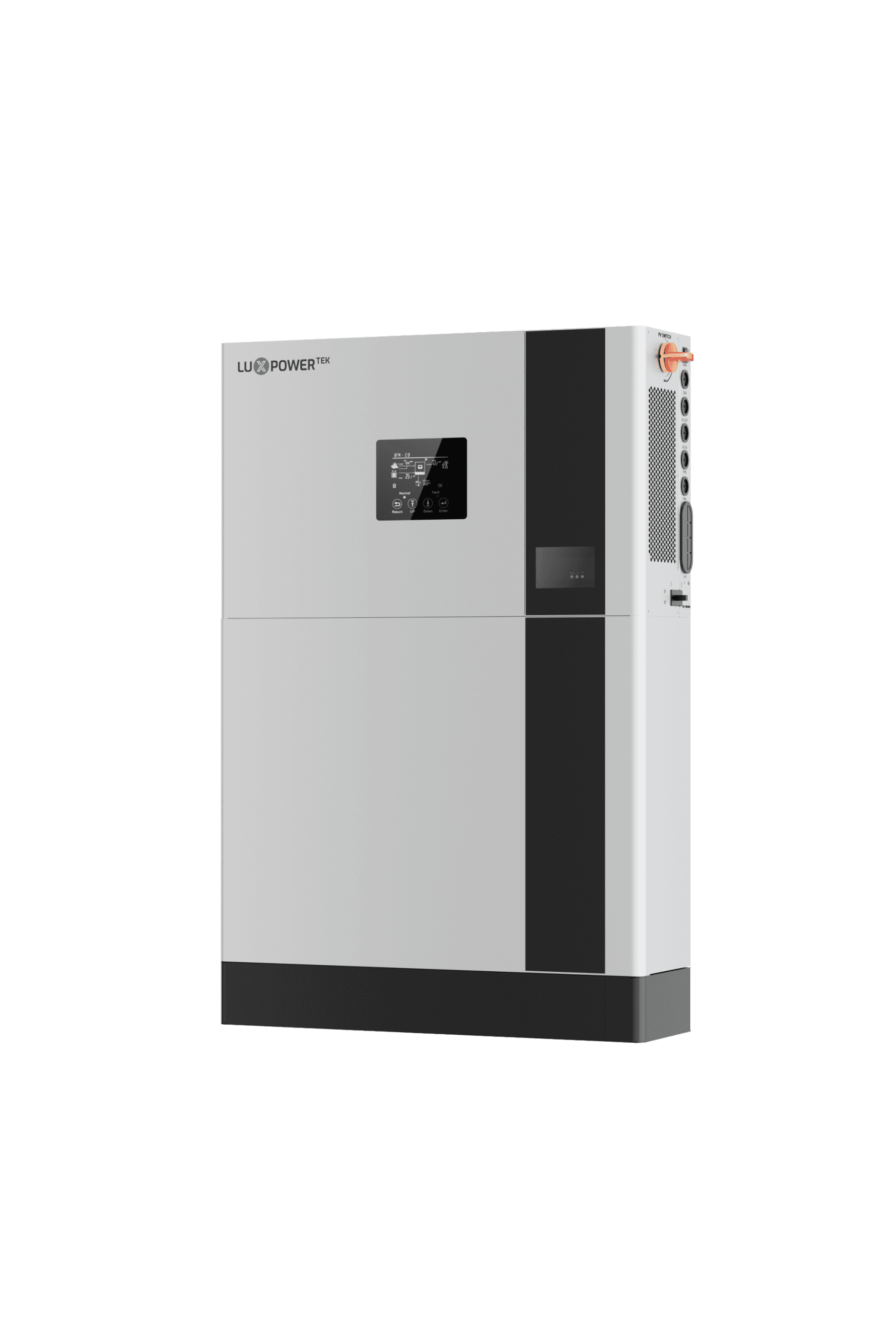

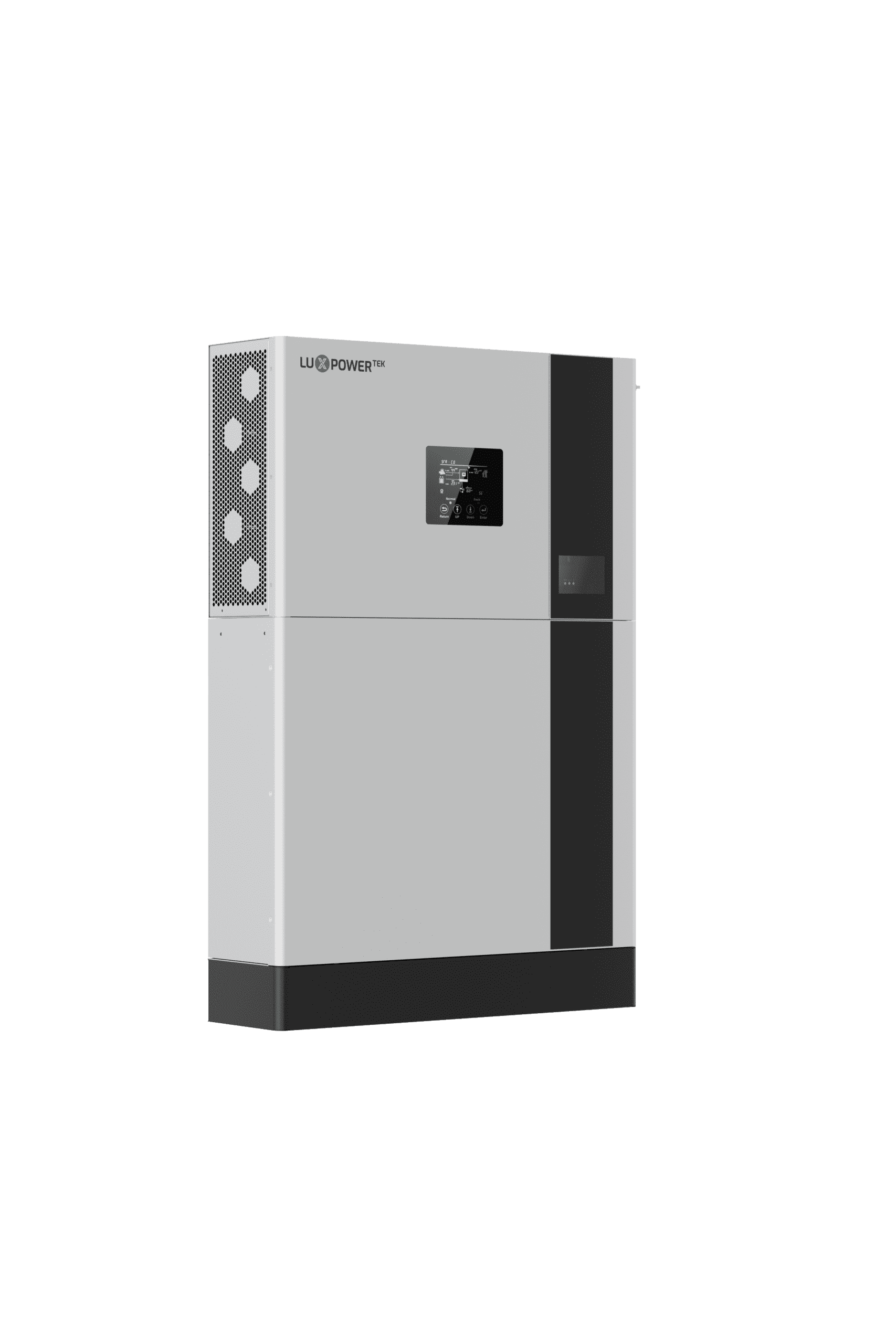

Eco Beast All-in-One Energy Storage System Reliable Power

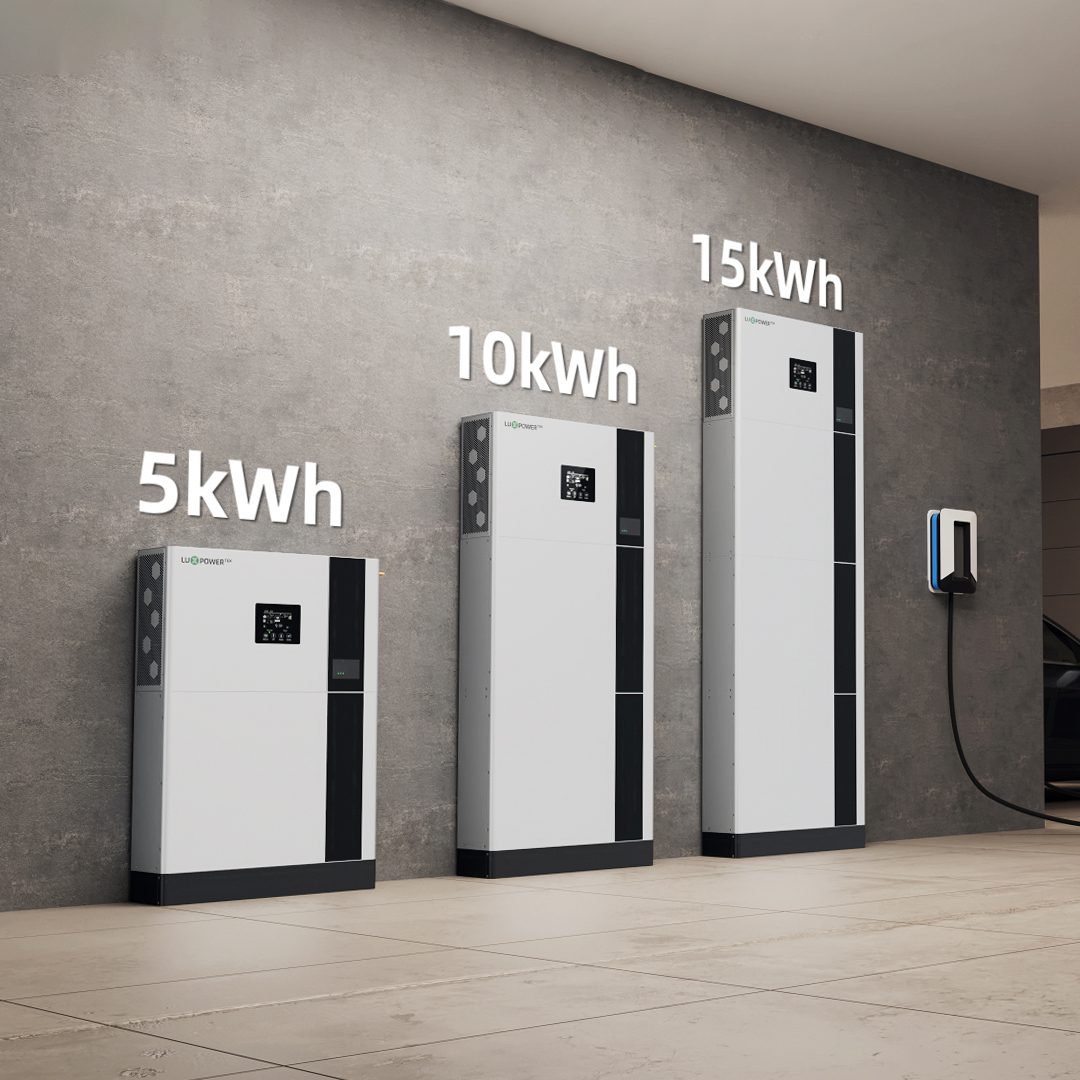

    ① Optional 5/10/15 kWh modular battery system (5.12 kWh per module, up to 3 modules per unit)

    ② Built-in SNA 6K off-grid inverter for hybrid flexibility

    ③ Supports PV, battery, grid and generator inputs

    ④ Scalable system — up to 16 systems in parallel

    ⑤ Compact, easy-to-install design for quick deployment

    ⑥ Remote monitoring & OTA updates via Wi-Fi

    Category:

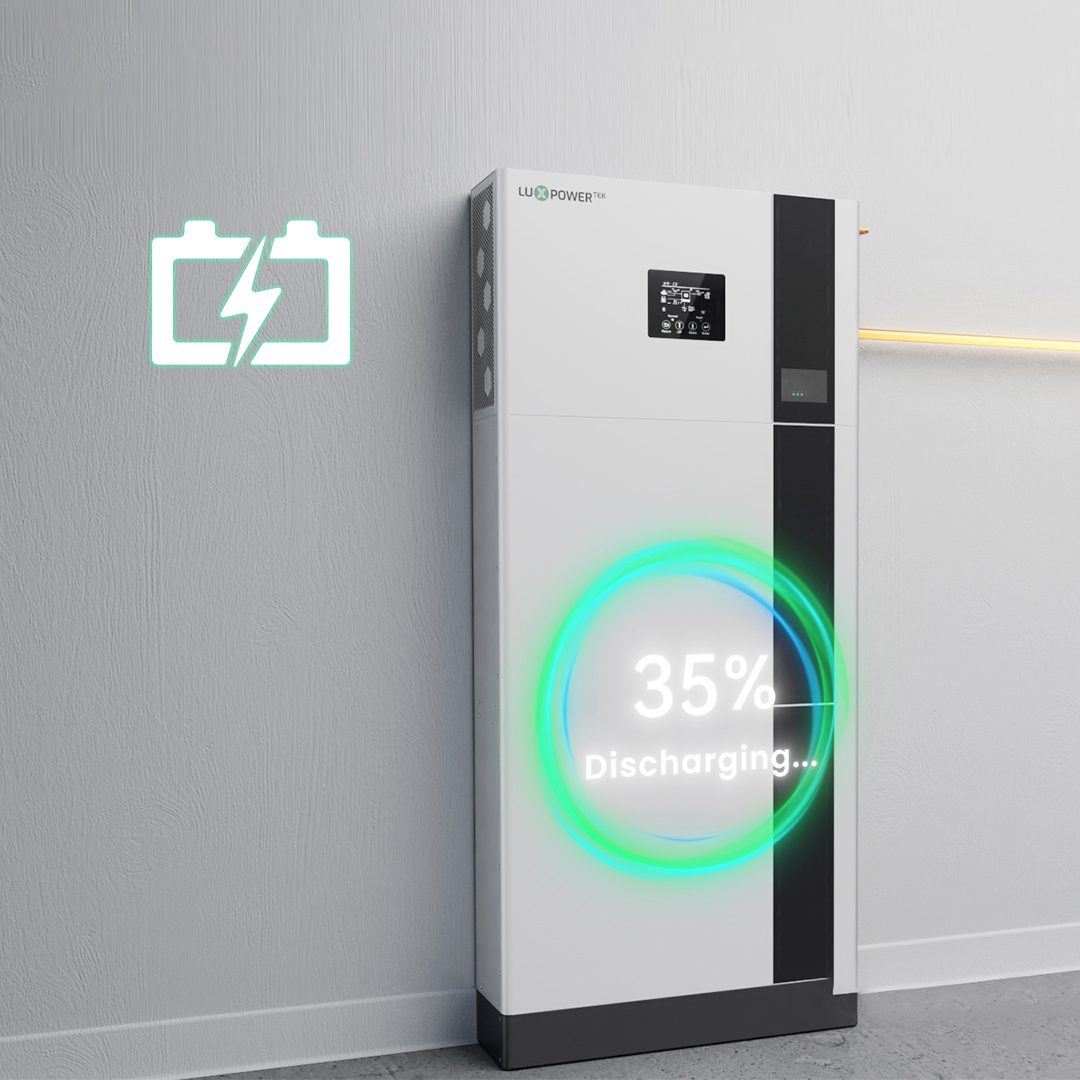

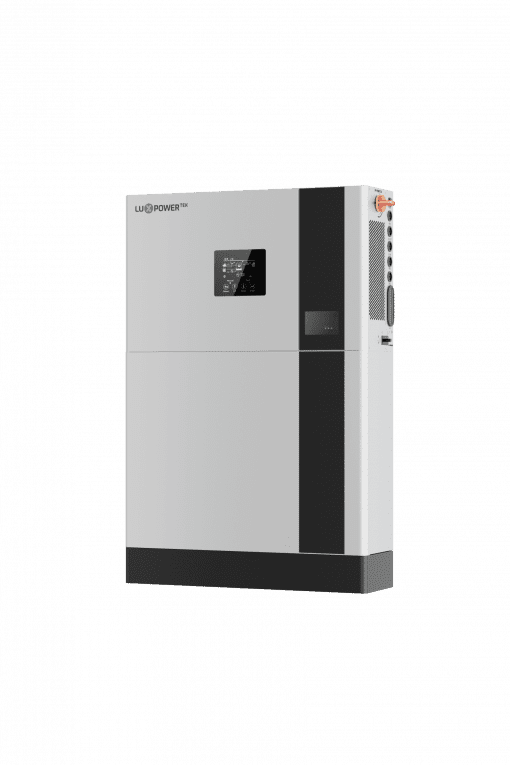

      All-in-One Simplicity

      Combining inverter and battery in a single sleek unit, Eco Beast simplifies installation and saves valuable space, delivering reliable power with minimal setup.

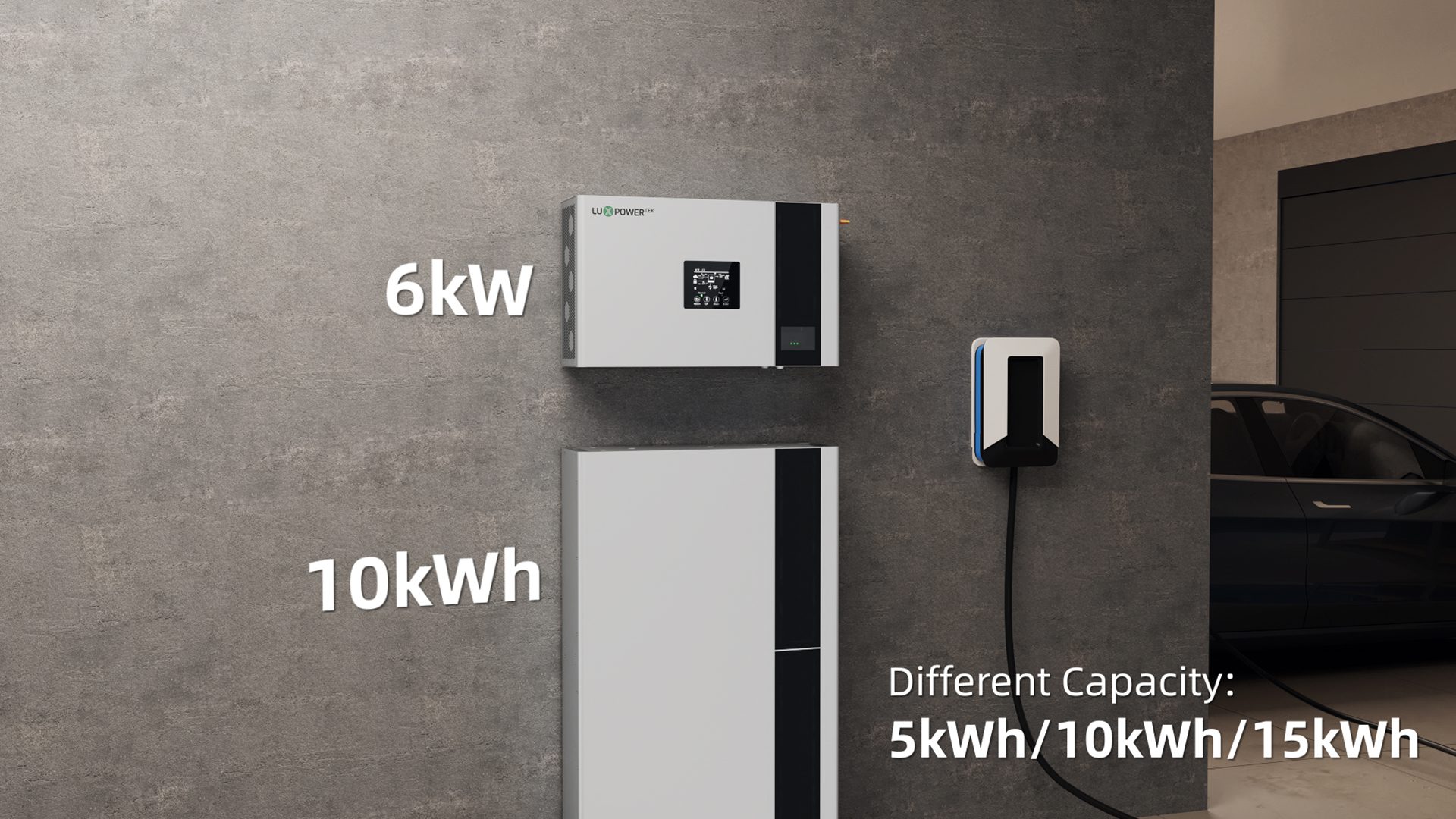

      Modular Battery Flexibility

      The integrated battery system uses 5.12 kWh modules, expandable up to 15 kWh per system, letting you tailor capacity for your household’s needs.

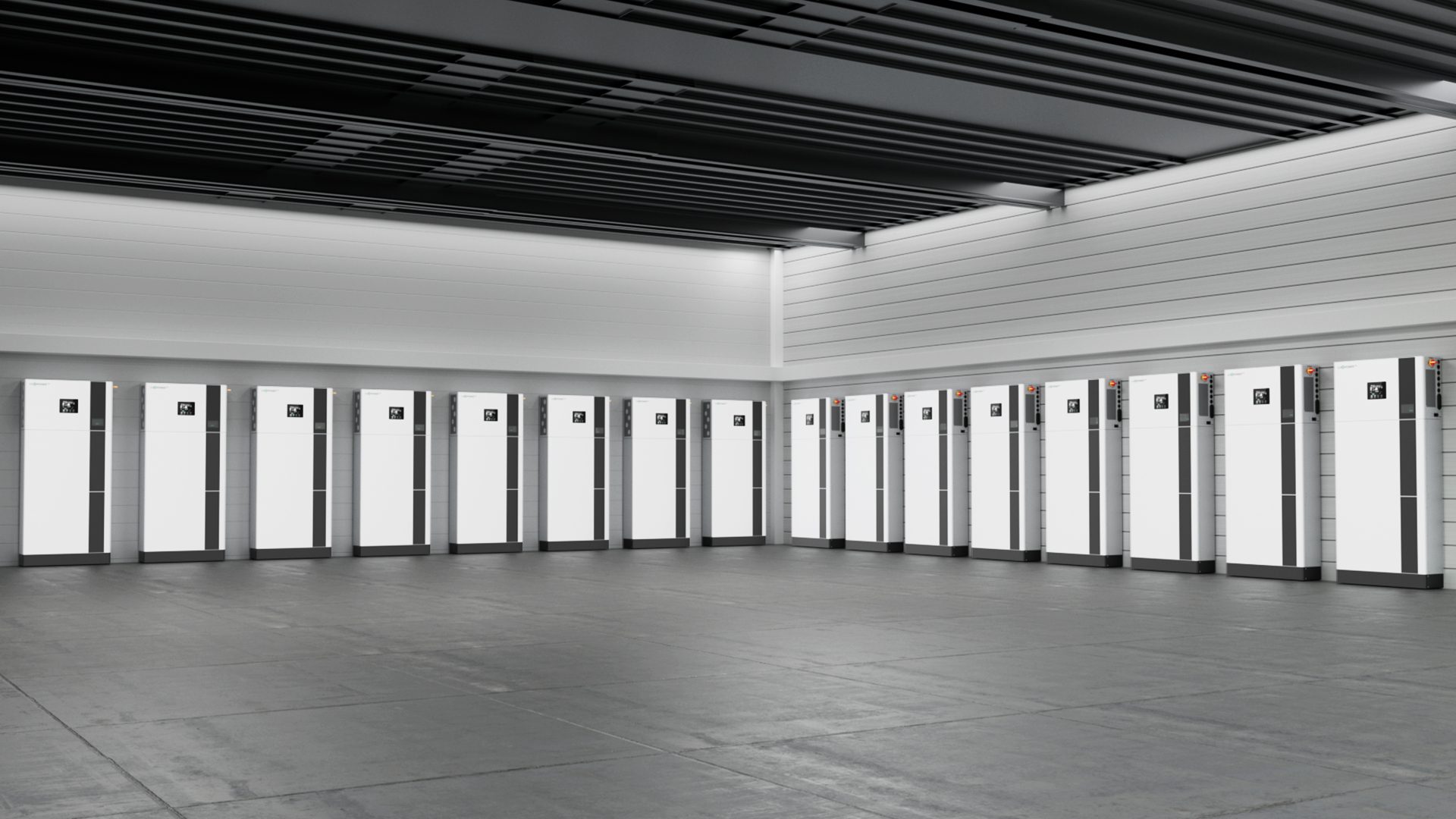

      Scalable & Powerful

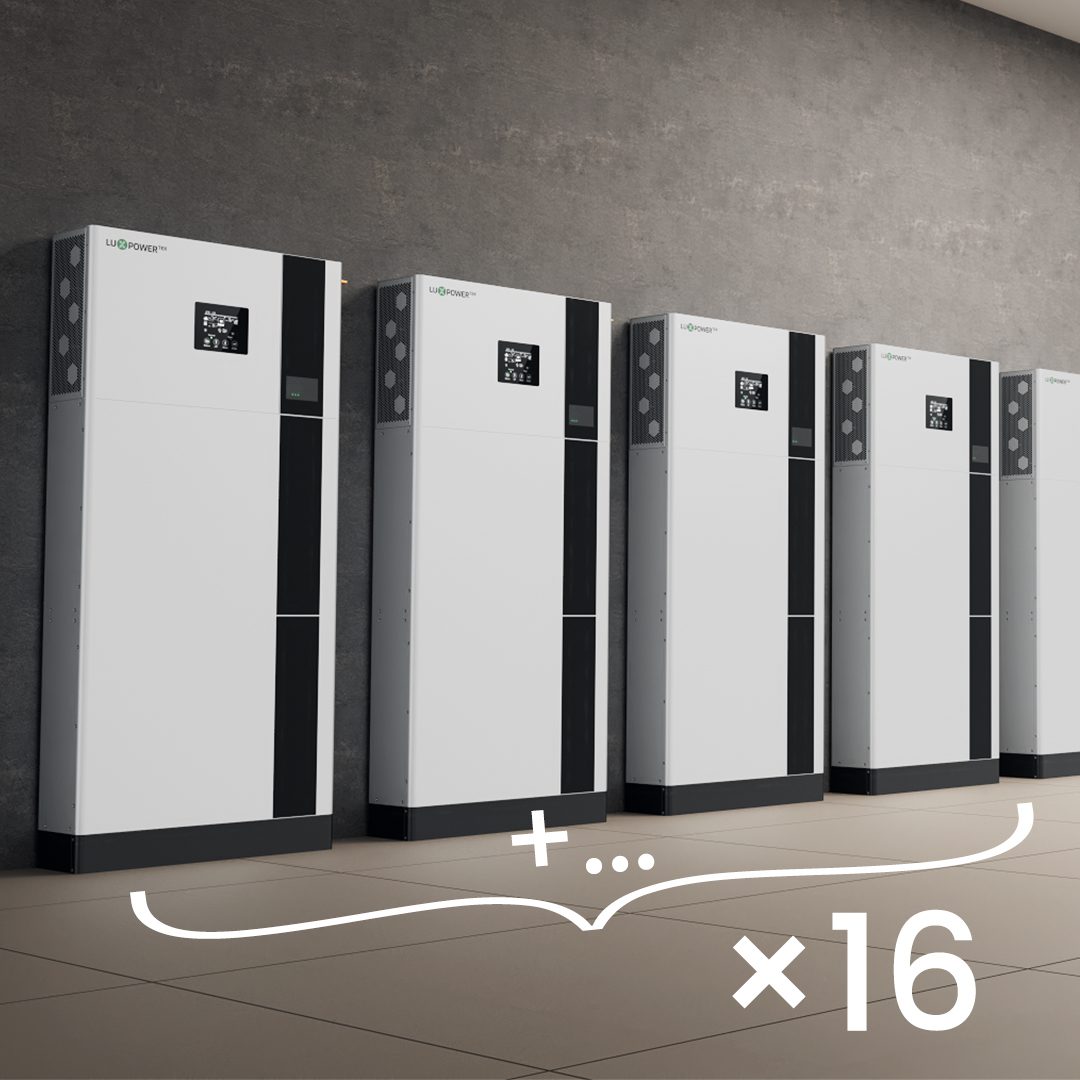

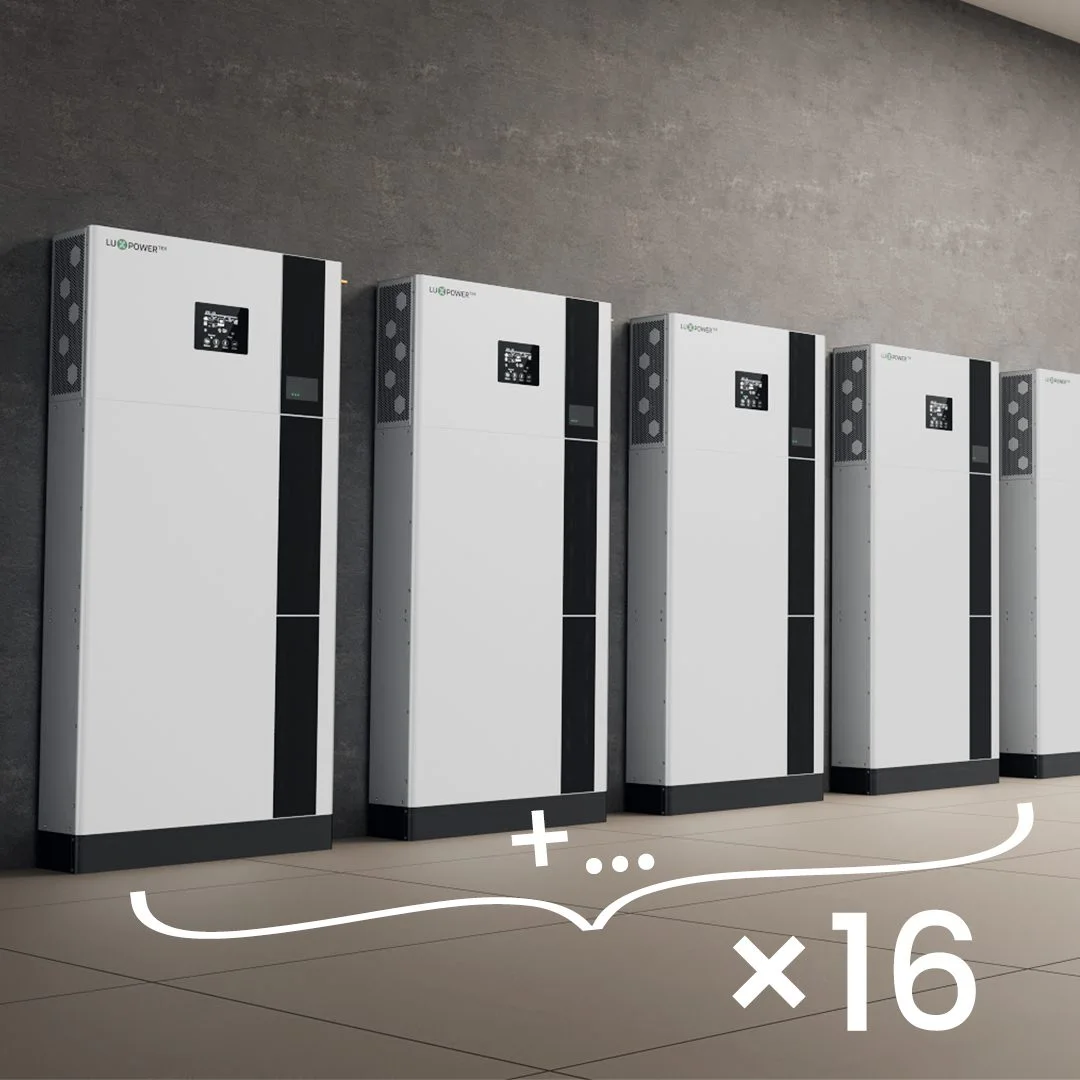

      Each unit supports 16-system parallel connection, making Eco Beast perfect for future energy expansion.

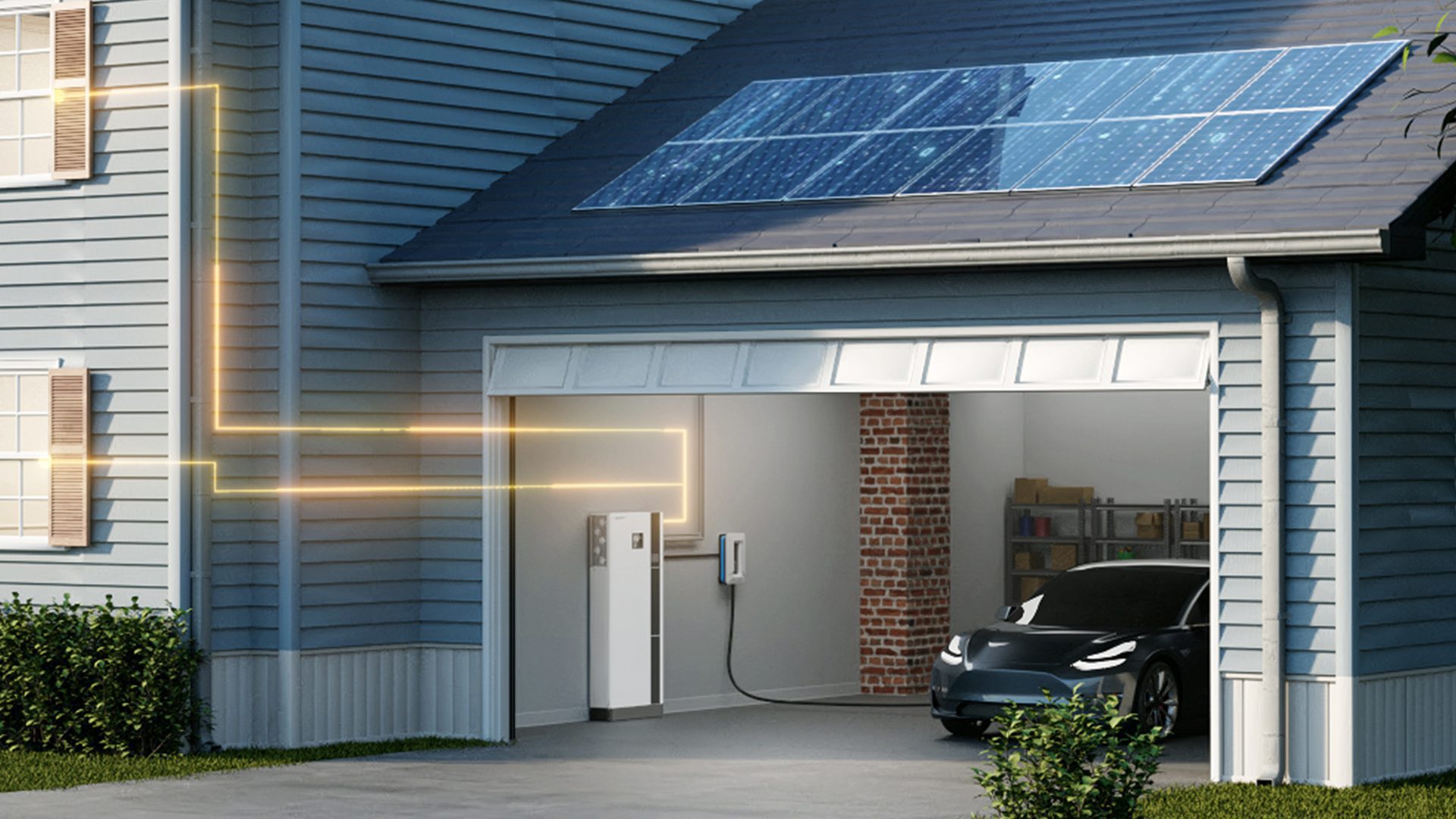

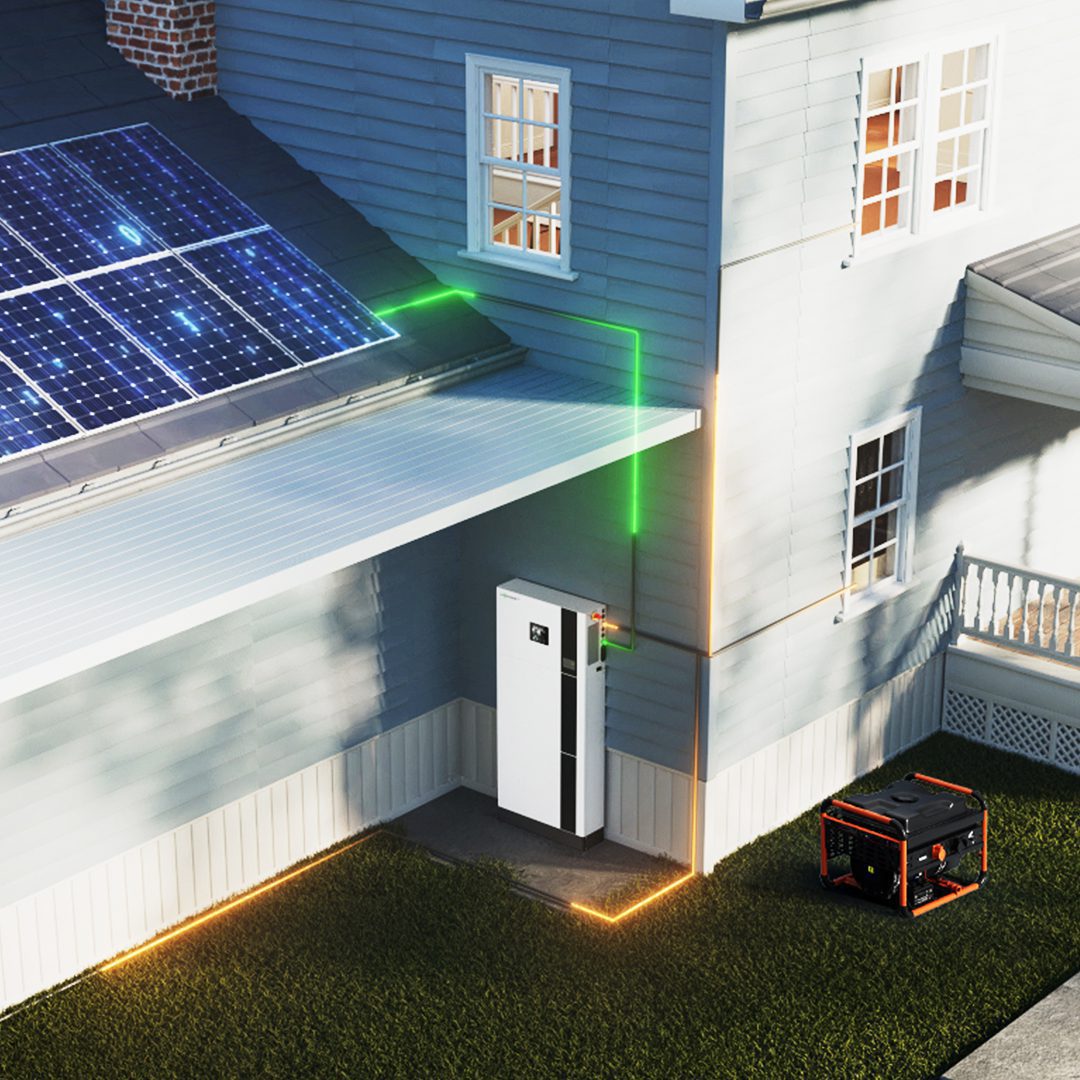

      Hybrid Ready

      With an SNA 6K inverter inside, Eco Beast seamlessly handles PV, grid, generator, and battery sources, ensuring continuous energy security even in unreliable grid conditions.

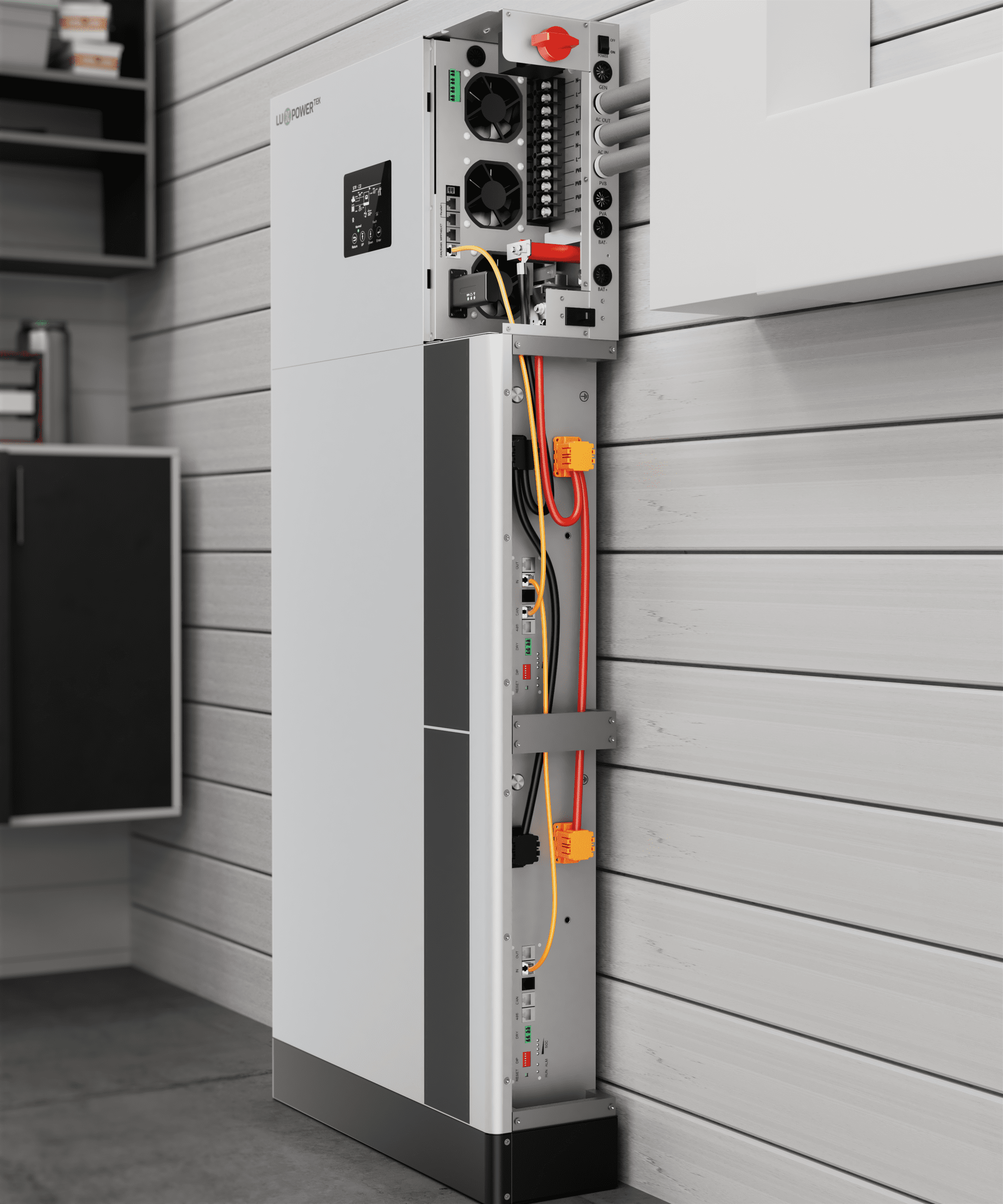

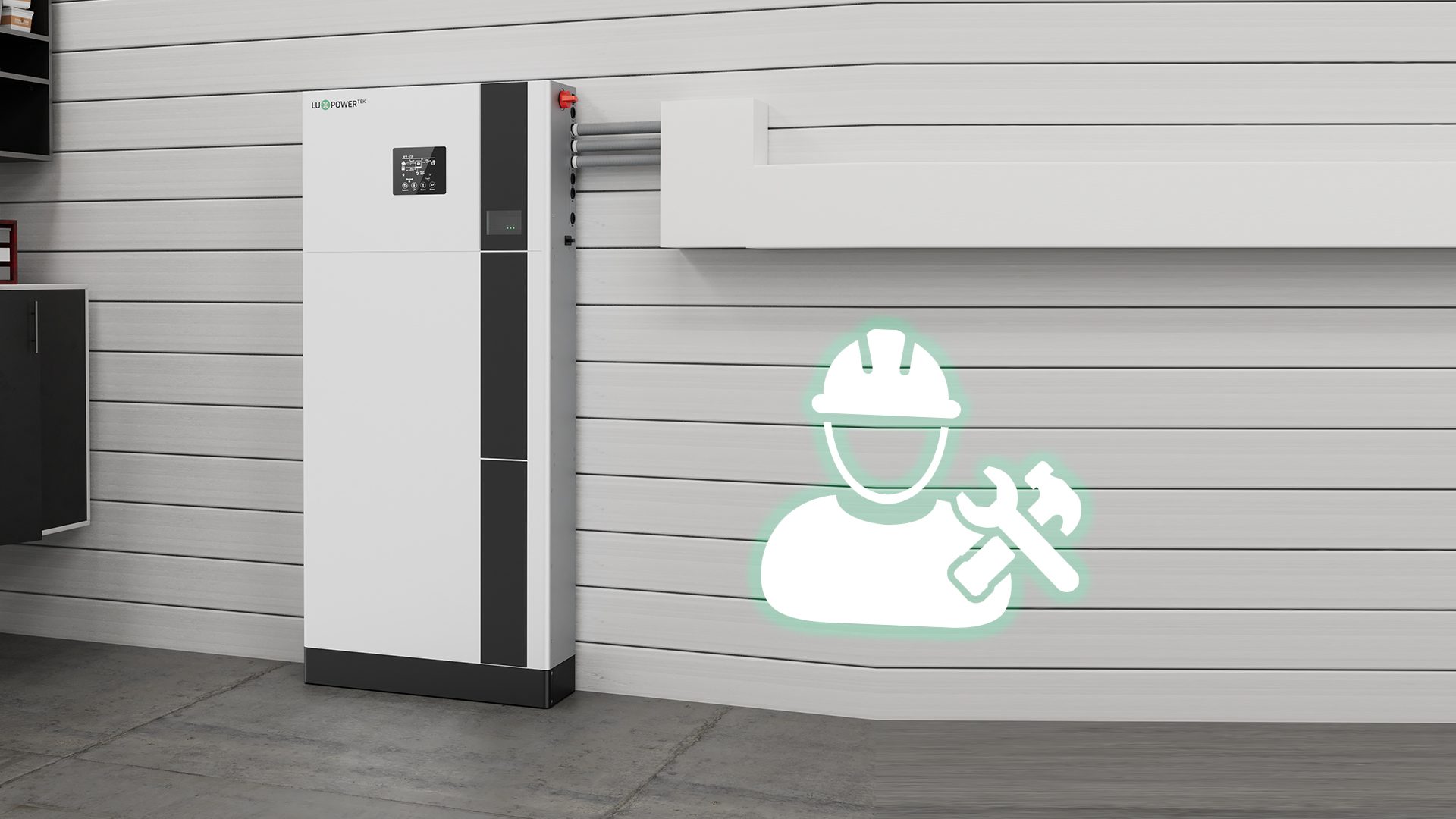

      Fast Installation

      Pre-integrated design reduces wiring and installation time, allowing faster project delivery.

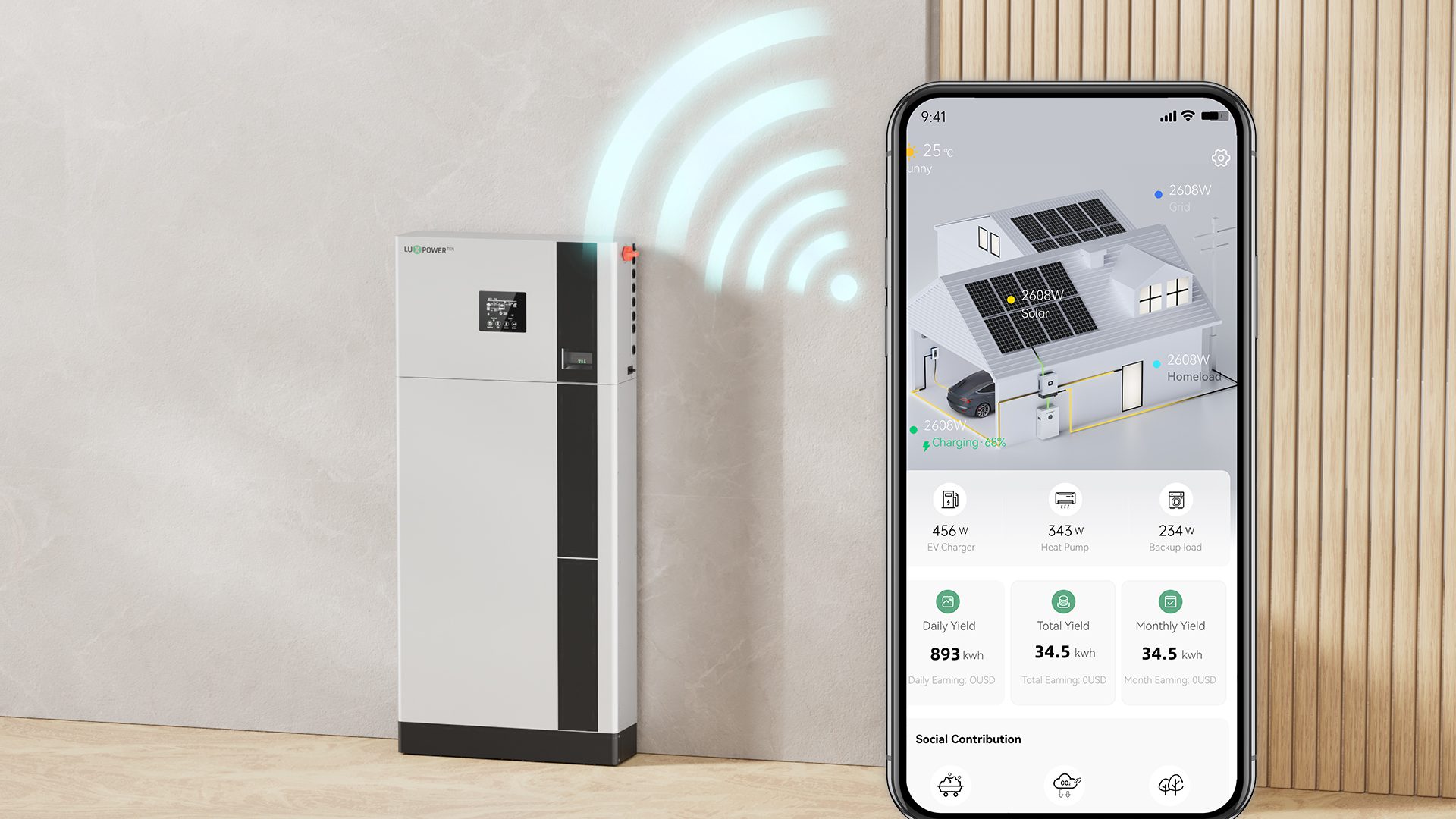

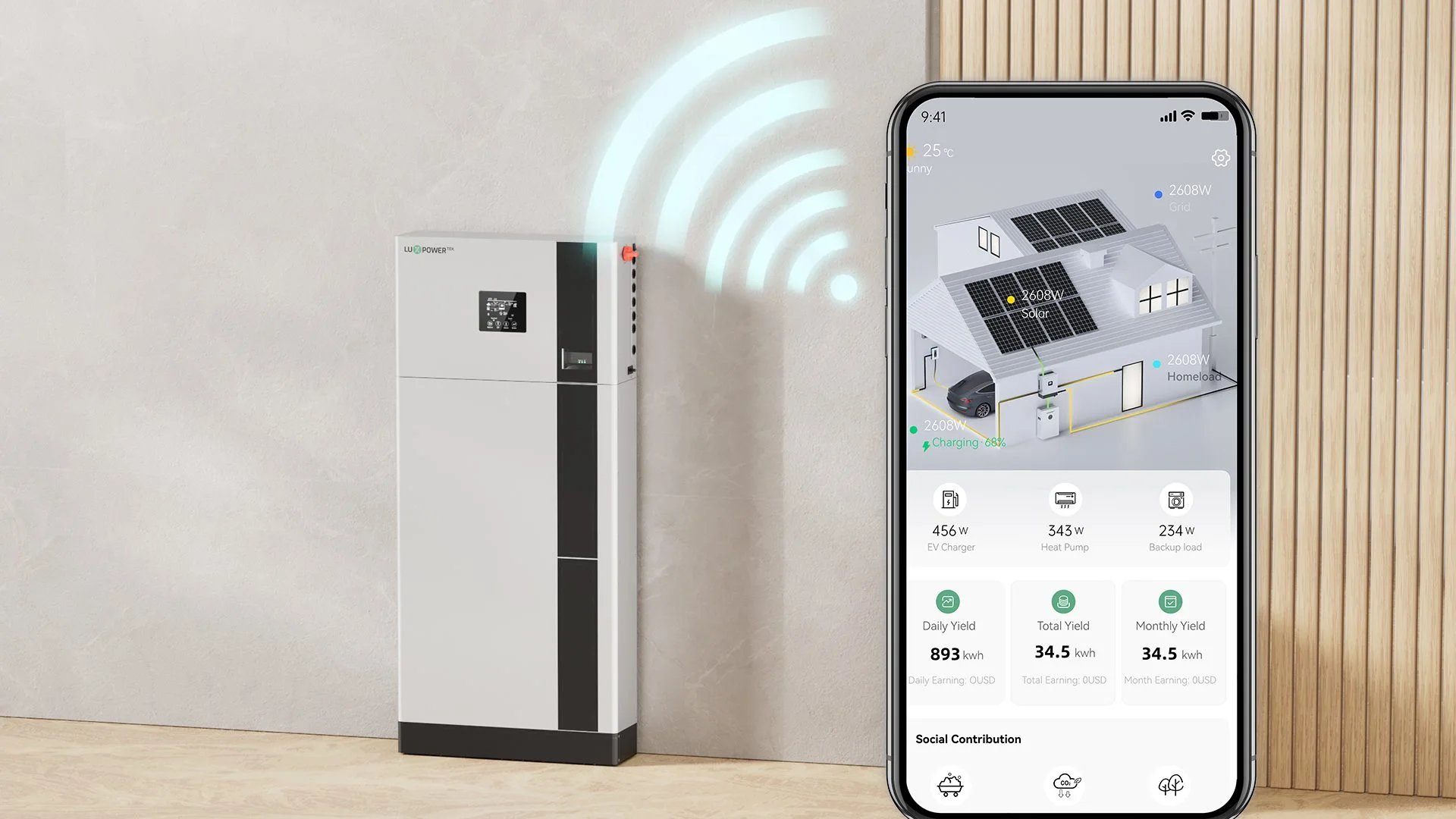

      Smart Monitoring

      Wi-Fi connectivity enables remote monitoring, firmware updates, and performance tracking anytime, anywhere.

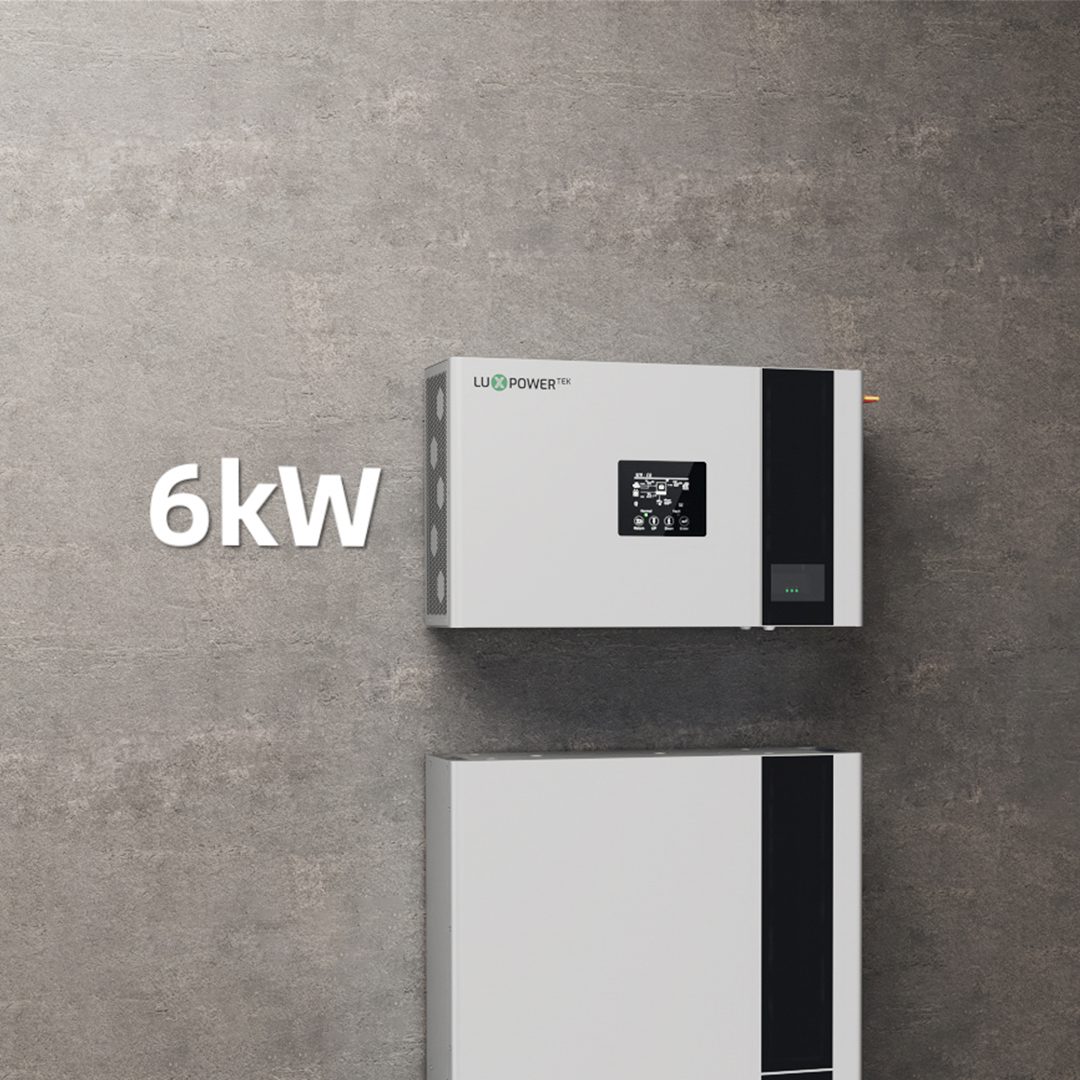

      Inverter Power: 6 kW

      Battery Capacity:

      5 kWh / 10 kWh / 15 kWh

      Battery Voltage:

      48 V / 51.2 V

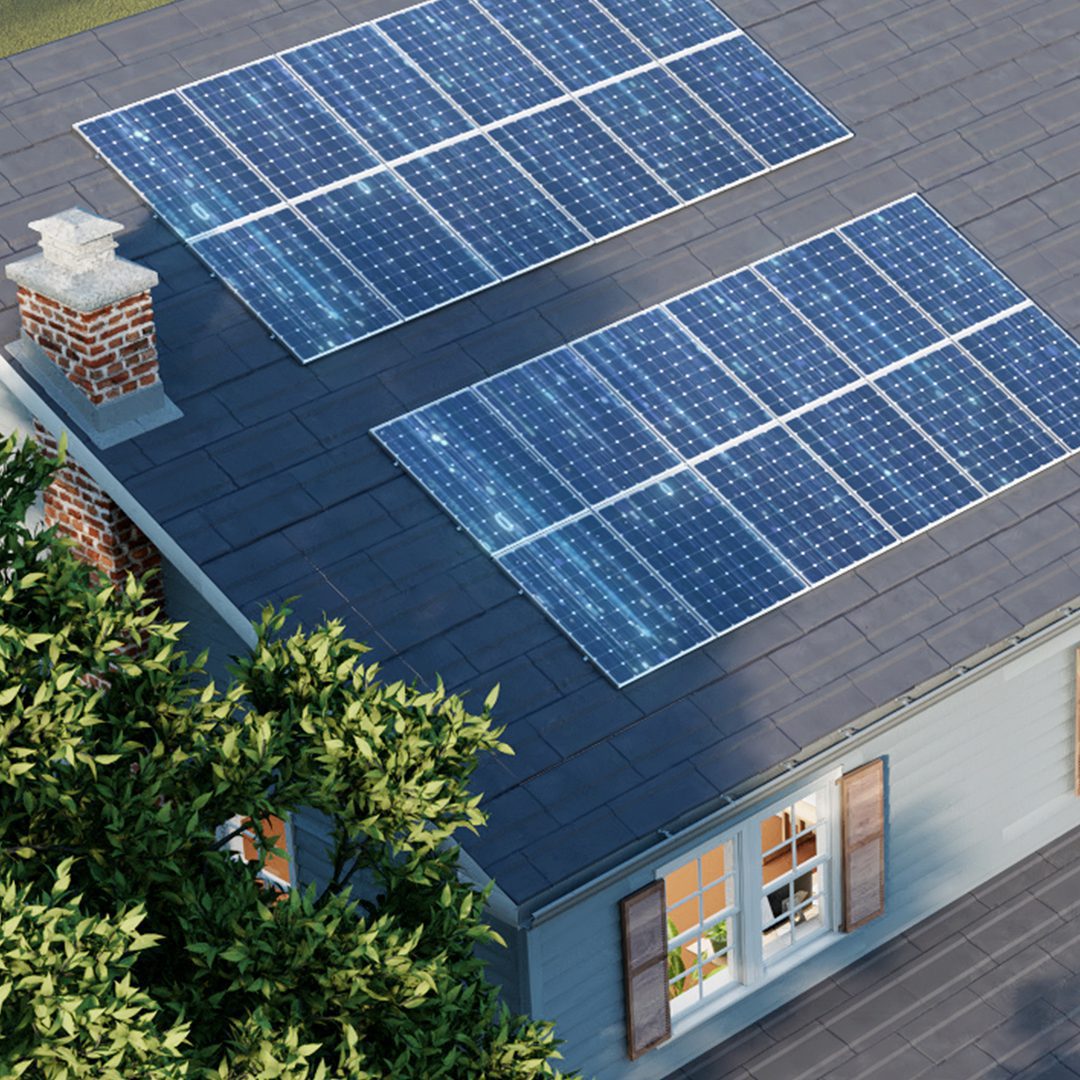

      PV Input:

      Up to 9.6 kW (Dual MPPT)

      Parallel Support: Up to 16 systems

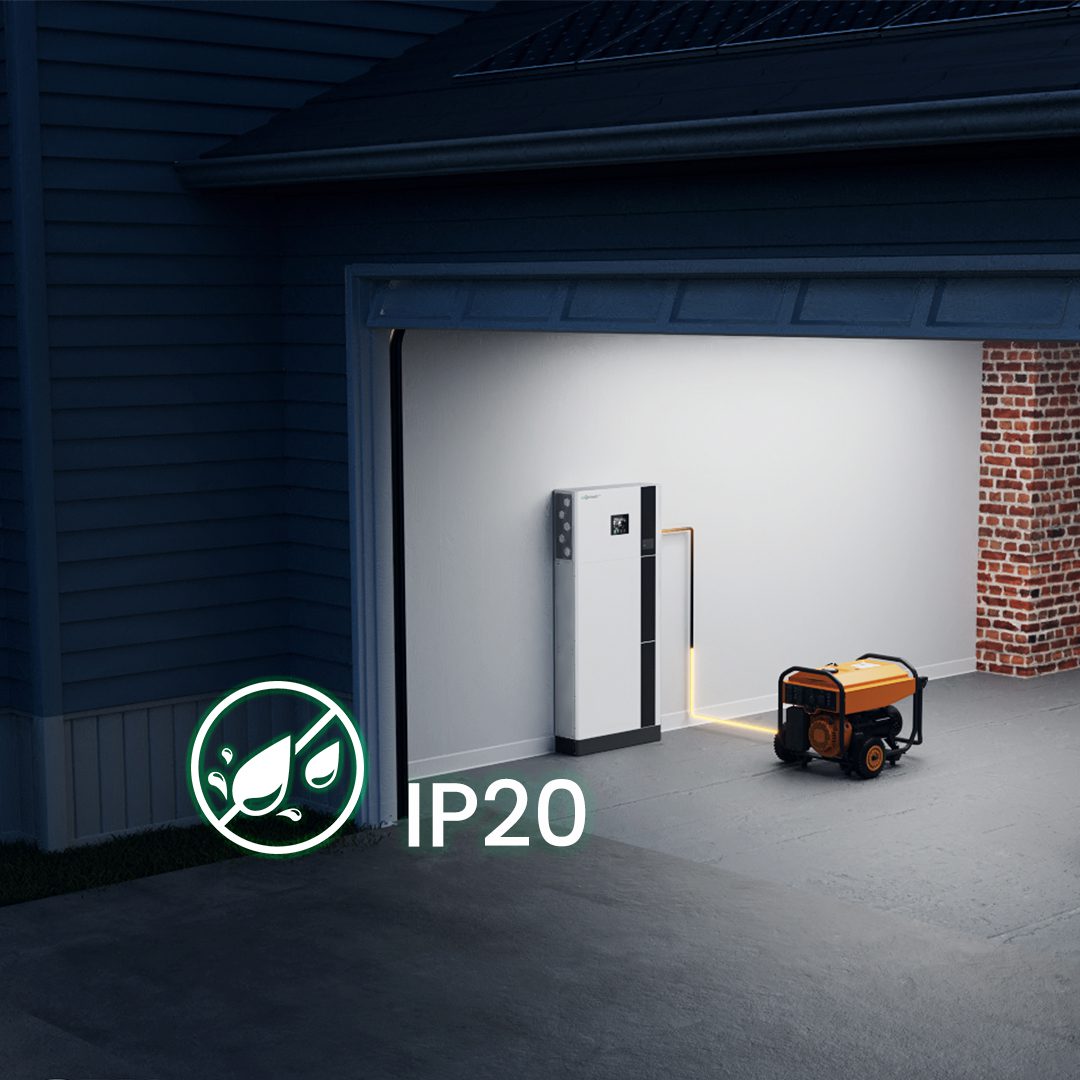

      Protection Class: IP20

      Warranty: 2 years

      (3 years with Luxpower battery)

      Supported Sources:

      PV, Battery, Grid, Generator

      All-in-One Simplicity

      Combining inverter and battery in a single sleek unit, Eco Beast simplifies installation and saves valuable space, delivering reliable power with minimal setup.

      Modular Battery Flexibility

      The integrated battery system uses 5.12 kWh modules, expandable up to 15 kWh per system, letting you tailor capacity for your household’s needs.

      Scalable & Powerful

      Each unit supports 16-system parallel connection, making Eco Beast perfect for future energy expansion.

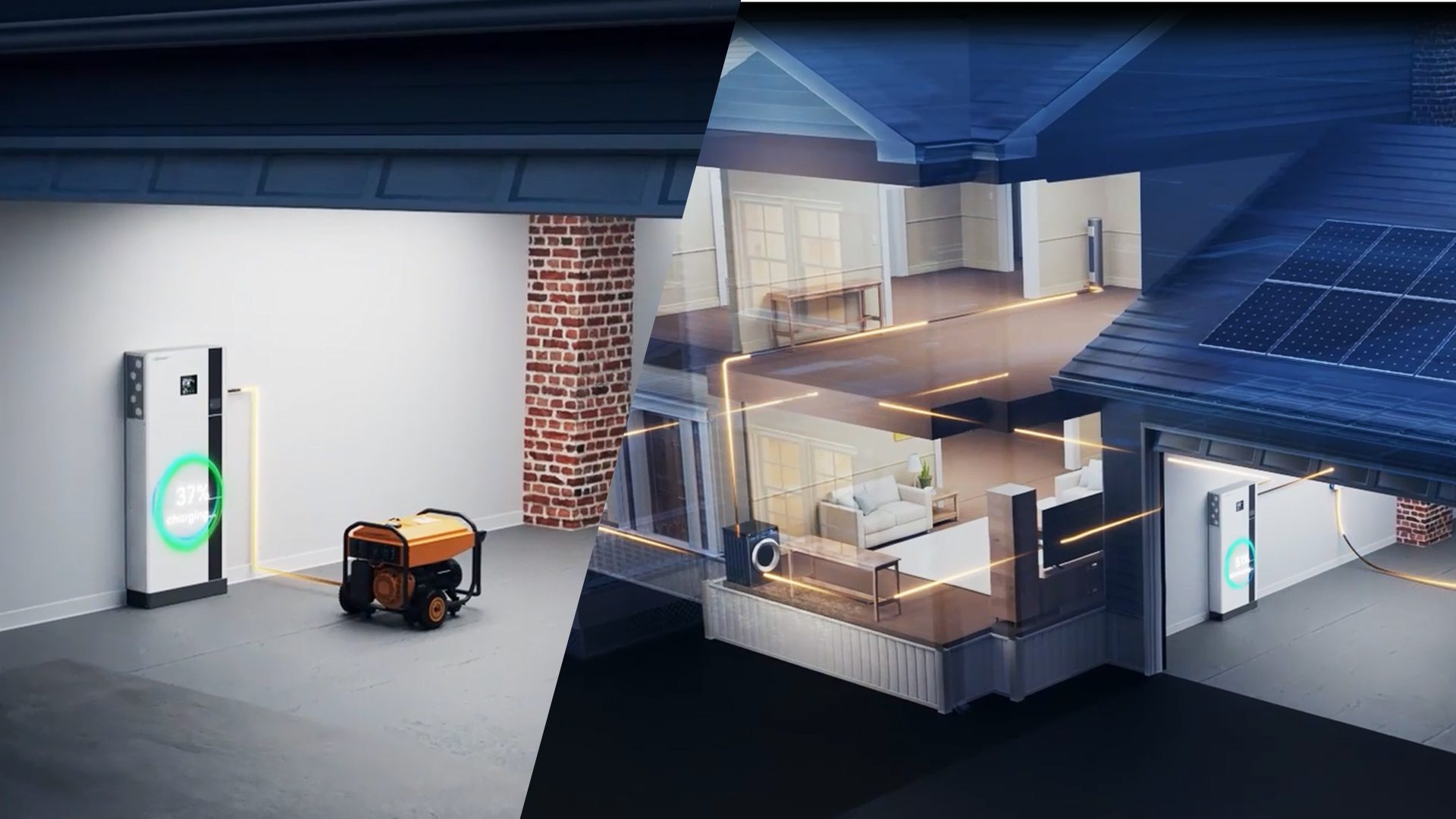

      Hybrid Ready

      With an SNA 6K inverter inside, Eco Beast seamlessly handles PV, grid, generator, and battery sources, ensuring continuous energy security even in unreliable grid conditions.

      Fast Installation

      Pre-integrated design reduces wiring and installation time, allowing faster project delivery.

      Smart Monitoring

      Wi-Fi connectivity enables remote monitoring, firmware updates, and performance tracking anytime, anywhere.

      Specification

      Model
      INVERTER MODULE Eco Beast 6000
      Input (PV DC)
      Max. PV input power (W) 9600(4800/4800)
      Rated PV input voltage (V) 320
      Number of independent MPPT inputs 2/(1:1)
      PV input voltage range (V) 100~480
      MPPT voltage range (V) 120~385
      Start-up voltage (V) 100
      Max. PV input current per MPPT (A) 17/17
      Max. PV short-circuit current input per MPPT (А) 25/25
      Max. PV charging current (A) 140
      AC output (Backup)
      Output voltage waveform Pure sine wave
      Output voltage regulation (V) 208/220/230/240±5%
      Output frequency (Hz) 50/60
      Rated output power (W) 6000
      Rated output current (A) 26.5
      Peak efficiency 93%
      Overload protection 5s@≥150% overload; 10s@110%~150% overload
      Surge power 2*Pn, 5s
      Switching time Typical<7ms@Single; <20ms@Parallel
      AC Input
      Rated input voltage (V) 230
      Rated input frequency (Hz) 50/60(Auto detection)
      Max. AC input current (A) 39.5
      Max. AC input power (W) 9000
      Max. AC charging current (A) 140
      Rated AC current of bypass relays (A) 60
      Gen
      Rated GEN voltage (V) 220/230/240
      Rated GEN frequency (Hz) 50/60
      Rated GEN input Current (A) 32
      Rated GEN input Power (W) 7370
      Rated GEN current of bypass relays (A) 60
      Battery Connection
      Battery module model Battery Beast-5
      Battery module voltage (V) 38.4~60
      Number of modules per inverter 1~3
      Efficiency
      Max. efficiency 93.5
      EU efficiency /
      Max. charge/discharge efficiency 93
      Protection
      Grid monitoring YES
      AC surge protection Type lll
      Standards & Certification NRS097-2-1:2024, EN/IEC 62109-1/-2, EN 61000

      BATTERY MODULE
      Battery power (kWh) 5.12
      Rated voltage (V) 51.2
      Rated capacity (Ah) 100
      Battery type Lithium-ion
      Max. discharging current (A) 100
      Max. charging current (A) 100
      Dimension (W*H*D) 580*434*165mm / 22.8*17.1*6.5 in
      Net weight 54kg / 119.1lbs
      Standard UN38.3, CE
      General Specifications
      Inverter module weight 17.5kg / 38.6lbs
      Inverter module dimension (W*H*D) 580*350*165mm / 22.8*13.8*6.5 in
      Battery module weight 57.4kg / 126.5lbs
      Battery module dimension (W*H*D) 580*434*165mm / 22.8*17.1*6.5 in
      Ingress protection rating IP20
      Display & Communication interface LCD+LED, RS485/Wi-Fi/CAN
      Cooling method Smart cooling
      Topology Transformer-less
      Noise emission(typical) (dB) <58
      Operating temperature range (°C) 0~45
      Storage temperature (°C) -15~60
      Humidity 5% to 95% Relative Humidity (Non-condensing)
      Altitude (m) <2000
