16 June 2026 | Installation record
Nigeria Commercial Solar Installation with Two SNA 6K Inverters
This commercial installation uses two SNA 6K inverters, two 15kWh batteries and twenty 540W solar panels.
Installed equipment
| Installation record | 16 June 2026 |
|---|---|
| Application | Commercial / industrial project record |
| Inverters | 2 x SNA 6K |
| Battery storage | 2 x 15kWh; brand not identified in the record |
| Nominal battery energy | 30kWh |
| PV modules | 20 x 540W |
| PV nameplate capacity | 10.8kWp (20 x 540W) |
The installation

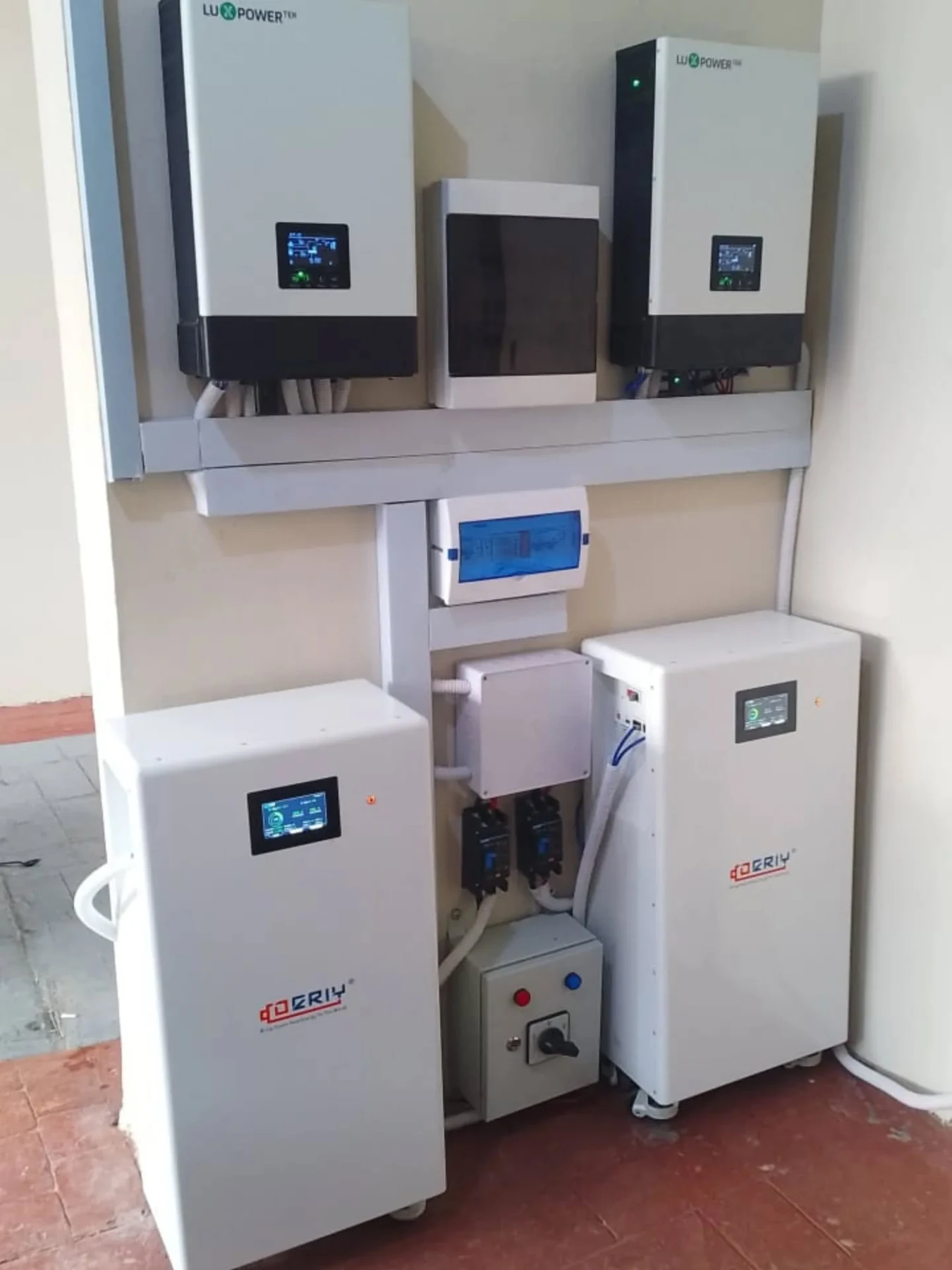

The supplied photos show two SNA inverters mounted above the battery bank and distribution equipment. The record lists 30kWh of total nominal battery energy and a 10.8kWp solar array. It does not identify the city or the battery brand, so those details are not attributed here.
Planning a similar system
For a business comparing a multi-inverter system, assess essential circuits, starting loads and the intended phase arrangement first. Two units rated at 6kW each do not by themselves establish the available power on every circuit; the approved parallel configuration and battery discharge capability also matter.
No business name, measured generation, backup duration or savings figure was supplied. The batteries should not be presented as PGEM or PGEM PRO.
Frequently asked questions
Which battery model was installed?
The supplied project record lists two 15kWh batteries but does not name their brand or model. This case does not claim they are PGEM products.
Is the system a guaranteed 12kW supply?
The record lists two 6kW inverters. Delivered system power depends on the wiring, operating mode, approved parallel configuration and battery limits; the case is not a performance test.
Configuration and photos: supplied Nigeria project records. Equipment ratings are not measured operating results.
